Product Details

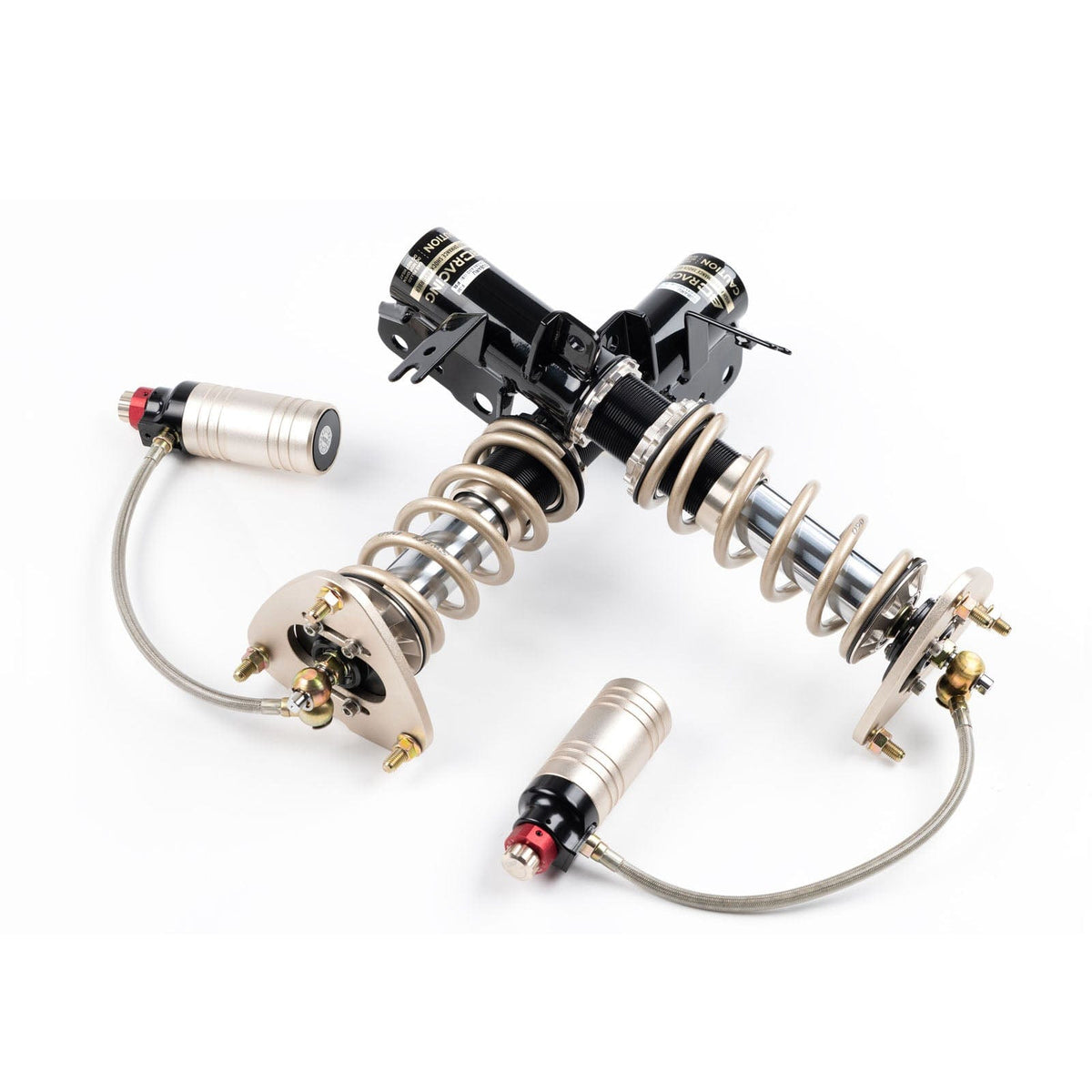

These BC Racing ZR Series coilovers fit the 2017-2021 Honda Civic Hatchback 1.5T FWD. They deliver the deepest damping adjustability in BC Racing's lineup, with Swift Springs included standard and three axes of independent tuning for competitive track programs. Every kit is extensively tested on the Civic Hatch 1.5T FC chassis and refined until it balances ride quality with performance, the reason Civic Hatch 1.5T coilovers from BC Racing are the best-selling adjustable kits in their segment worldwide.
ZR Series kits use an inverted mono-tube damper with a linear twin-piston design, feeding three independent adjustment circuits. Swift Springs come standard, not as an upgrade, and the kit is race-tuned out of the box. The off-the-shelf setup from BC Racing is deliberately balanced, spring rates and valving chosen so the kit feels comfortable day-to-day without giving up performance when you push it. Drivers who want a different recipe can spec Swift Springs, custom spring rates, or fully custom valving at checkout; BC will tune the dampers to match, which is a depth of customization most brands only offer on their top-tier kits.
BC Racing's reputation in the aftermarket suspension world is built on four things: competitive pricing that beats the rest of the fully-adjustable market, customization depth that rivals the top-tier race brands, long-term reliability earned over 20 years of production, and a rebuildable design that keeps the same set of dampers serving you through multiple builds. These Civic Hatch 1.5T coilovers arrive tuned for the FC chassis and ready to bolt in, no break-in period, no guessing at setup. Every kit ships with a 2-year manufacturer warranty, lifetime access to BC service parts (pistons, seals, shafts, no unit replacement required when it's time for a rebuild), and in-house tech support from both BC Racing and the Springrates team.
Features
- 30-level rebound adjustment
- 15-level low-speed compression adjustment
- 12-level high-speed compression adjustment
- Inverted mono-tube damper with twin-piston design
- Swift Springs come standard
- Ride height adjustable independent of spring preload
- Upper mount hardware varies by chassis, camber plates, pillowball, or reused OEM mounts. See the Specifications table for what's included on your kit.
- Custom spring rates and custom valving available at checkout
- Fully rebuildable, replacement parts available from BC for the life of the shock
- 2-year manufacturer warranty against defects
Specifications
| Part Number | A-156-ZR |
| Part Name | ZR Series Coilovers |
| Vehicle | 2017-2021 Honda Civic Hatchback 1.5T |
| Drivetrain | FWD |
| Chassis Code | FK7 |
| Damping Adjustment | 3-Way (30 levels rebound/15 LSC/12 HSC) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 6 kg/mm |
| Spring Rate - Rear | 4.5 kg/mm |
| Spring Size - Front | 62-180-6K |
| Spring Size - Rear | 62-190-4.5K |
| Swift Springs - Front | 62-178-X |
| Swift Springs - Rear | 62-178-X |
| Top Mounts - Front | Camber Plates |
| Top Mounts - Rear | Reuses OEM Mounts |
| Rear Damping Extenders | Not Compatible |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | Divorced |
| Notes |
|
Fitment for Civic coilovers
Fits the 2017-2021 Honda Civic Hatchback 1.5T FWD. Excludes the Civic Si. Each model year is listed below.
