Product Details

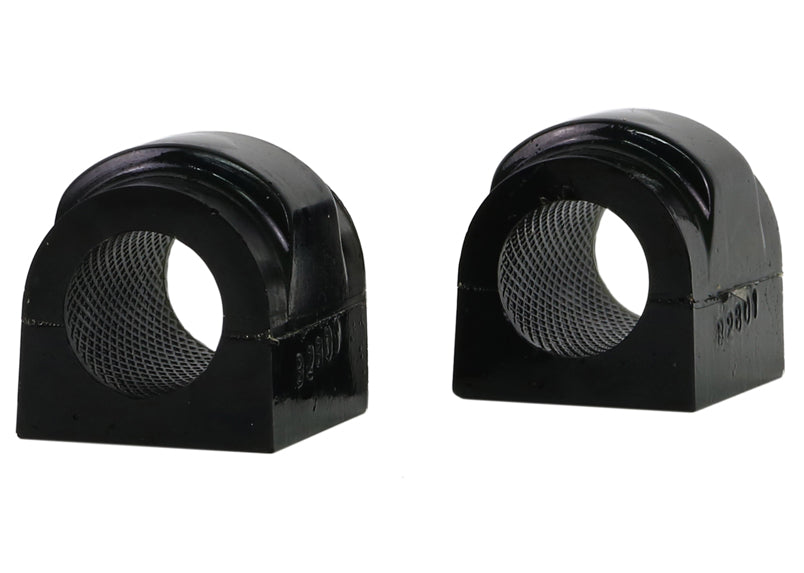

One of the most common suspension service items as they are easily inspected and simple to replace. Whiteline Sway Bar Mounts to your 1995-2006 BMW M3 (E36/E46) utilize the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected.
Standard Features
- Internal grease reservoirs provide continual self lubrication for optimum friction management.
- Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
- Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
Specifications
| Part Number | W22801 |
| Part Name | Sway Bar Mount Bushing |
| Vehicle | 1995-2006 BMW M3 |
| Chassis Code | E36/E46 |
| Bar Diameter | 20 mm |
| Grade Type | Regular |
| Grease Fitting Included | No |
| Inside Diameter | 20 mm |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Bushings |
| Mounting Hardware Included | No |
| Outside Diameter | 31.7 mm |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
Vehicle Fitment
- 1995 BMW M3 (E36/E46)
- 1996 BMW M3 (E36/E46)
- 1997 BMW M3 (E36/E46)
- 1998 BMW M3 (E36/E46)
- 1999 BMW M3 (E36/E46)
- 2000 BMW M3 (E36/E46)
- 2001 BMW M3 (E36/E46)
- 2002 BMW M3 (E36/E46)
- 2003 BMW M3 (E36/E46)
- 2004 BMW M3 (E36/E46)
- 2005 BMW M3 (E36/E46)
- 2006 BMW M3 (E36/E46)
