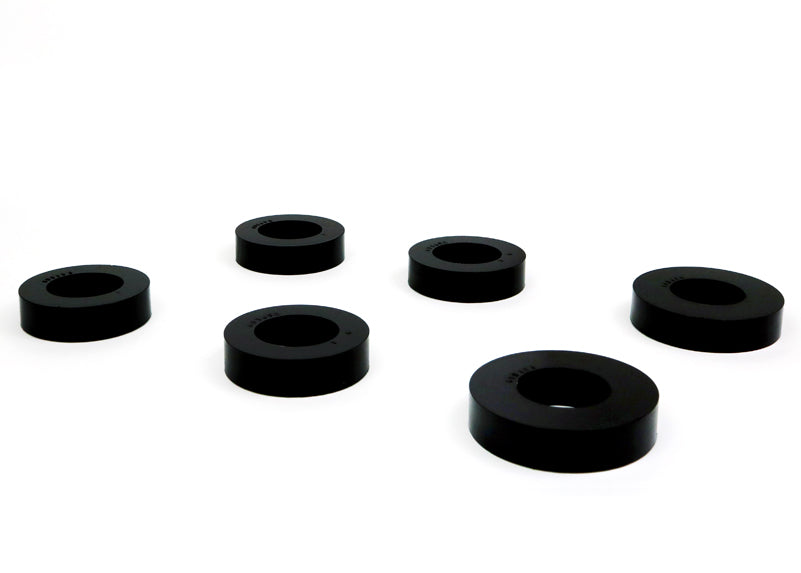

Whiteline Rear Subframe Align And Lock Kit Bushing for 1989-1990 Nissan 240SX XE (S13) KCA349
Whiteline Rear Subframe Align And Lock Kit Bushing - 1989-1990 Nissan 240SX XE KCA349
Whiteline Rear Subframe Align And Lock Kit Bushing - 1989-1990 Nissan 240SX XE KCA349

Whiteline

|

SKU: KCA349

Whiteline Rear Subframe Align And Lock Kit Bushing for 1989-1990 Nissan 240SX XE (S13)

$88.88
Ask a question
In stock, ready to ship

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In-Stock: 1 business day
  • Out of Stock: 3-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

Lifetime Manufacturer Warranty

All Whiteline products, except those listed below, are covered by a lifetime warranty against manufacturing defects in material and workmanship, valid for the original vehicle the product was installed on.

Whiteline Ball Joints, Tie Rod Ends, Bearings, Links and Springs are covered for 3 years or 60,000 km (36,000 miles), whichever comes first.

Exclusions
The warranty does not cover:

  • Incorrect installation or misuse.
  • Modification or alteration of parts.
  • Damage due to competition, motorsport, or off-road use.
  • Wear and tear from normal use.
  • Accidental or collision damage.

More Information

Product Details

This easy to Install Kit to your 1989-1990 Nissan 240SX XE (S13) is designed to change the inclination of the rear sub-frame whilst reducing bushing compliance. By locating the rings in different planes it possible to induce rear squat (maximum traction) or anti-squat (drift) properties. This product may induce increased NVH levels.

Standard Features

  • Engineered to alter/ eliminate unwanted bump steer, optimizing the vehicles steering characteristics.
  • Featuring premium anodized alloy materials, Whiteline alloy products are anodized providing a long-lasting protective barrier to corrosion and wear but they look great too.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Specially bonded design for optimized strength typically required in high load bearing applications.
Specifications
Part Number KCA349
Part Name Subframe Bushing Kit
Vehicle 1989-1990 Nissan 240SX XE
Chassis Code S13
Bushing Color Black
Bushing Material Polyurethane
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2

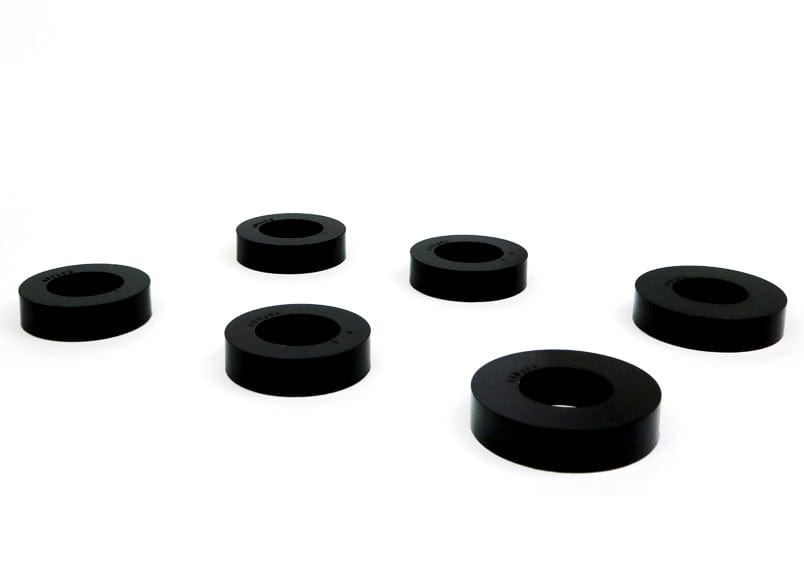

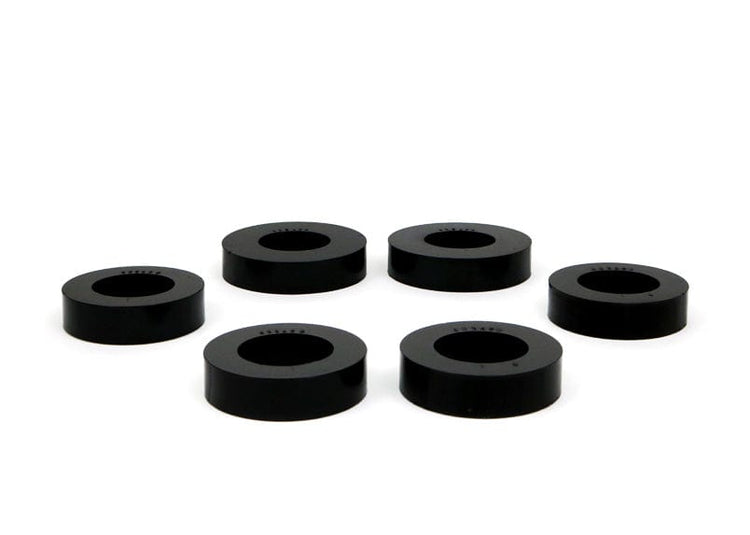

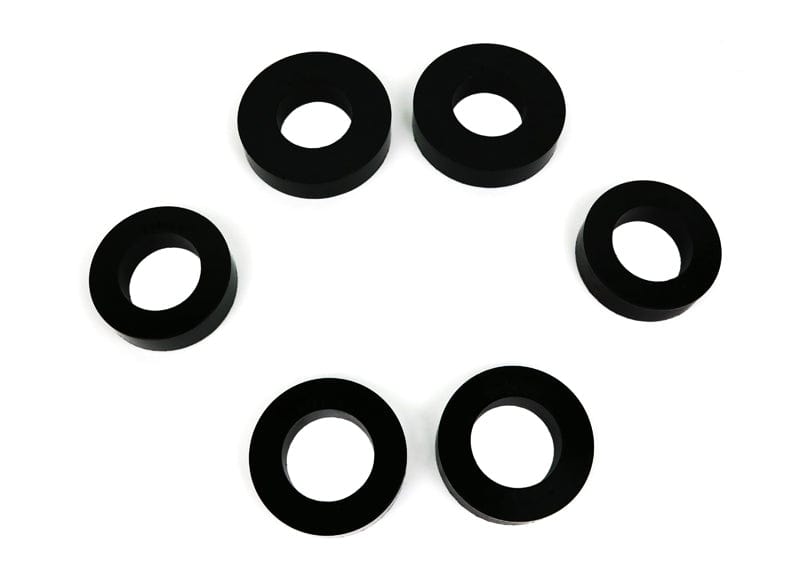

Kit Contents 6 Bushings, Install Guide, Grease
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Allows Differential Angle Change & Subframe Lock

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1989Nissan240SXRWDAllows Differential Angle Change & Subframe Lock
1990Nissan240SXRWDAllows Differential Angle Change & Subframe Lock
