Product Details

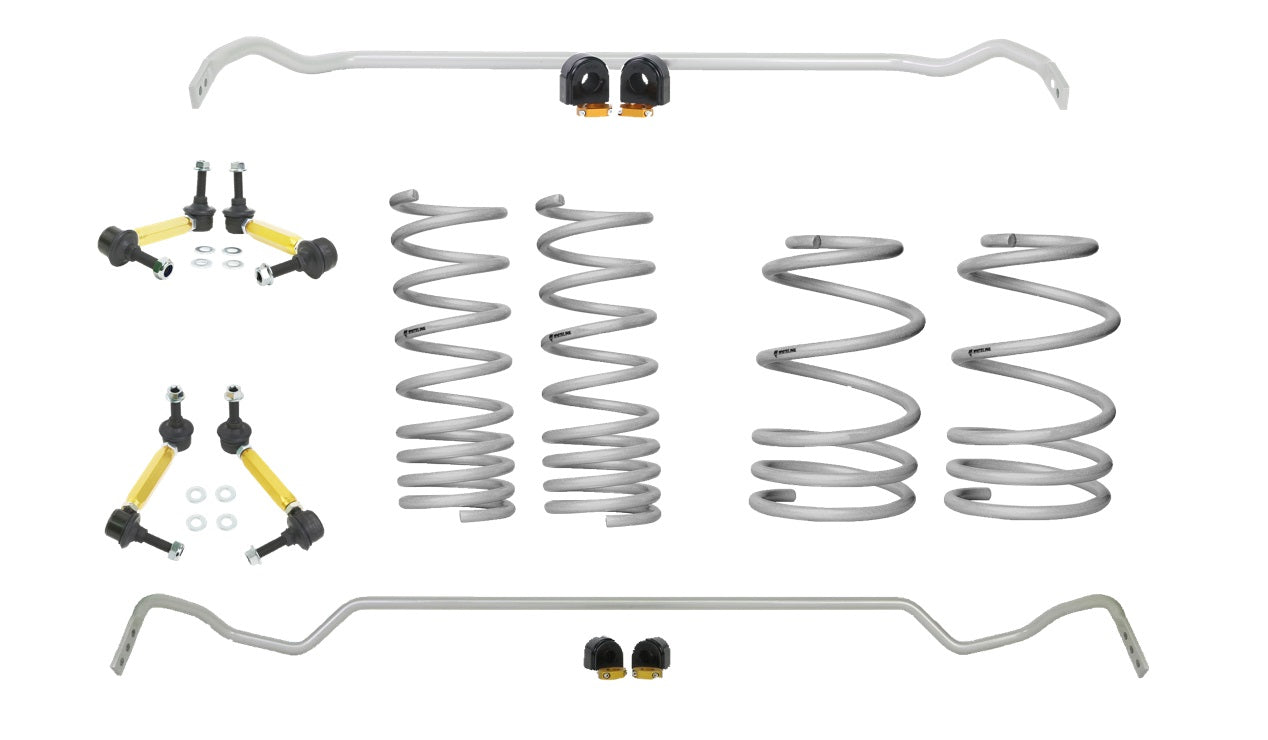

The ultimate entry level suspension upgrade! Performance, handling and comfort make up the Grip Series Stage 1 Kit featuring Whiteline signature front and rear adjustable (where applicable) Sway Bars, drop links and performance lowering springs. Whiteline Springs to your 2020-2026 Toyota GR Supra (DB) deliver improved vehicle performance whilst maintaining safety and ride quality characteristics. This kit contains 3.7kg/mm (206lb/in) front rated springs that provide a 30mm drop while the 9.5kg/mm (534lb/in) rated rears deliver a desirable 30mm to the vehicle. Boasting a 24mm 2 point adjustable front Sway Bar and 18mm 3 point adjustable rear Sway Bar, the kit is completed with high quality Sway Bar Links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this GS1 Kit.
Standard Features
- 2 Arms, Install Guide
- Designed with the installer in mind by reducing the need of specialized skills, tools and equipment.
- Internal grease reservoirs on bushing provide continual self lubrication for optimum friction management.
- Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
- The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering
- Install guide included providing detailed instructions on how to install your new purchase .
Specifications
| Part Number | GS1-TOY001 |
| Part Name | Suspension Kit |
| Vehicle | 2020-2026 Toyota GR Supra |
| Chassis Code | DB |
| Spring Rate - Front | 206 PPI |
| Sway Bar Adjustable - Front | Yes |
| Sway Bar Diameter - Front | 24 mm |
| Sway Bar Included - Front | Yes |
| Sway Bar Links Included - Front | Yes |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 4 |
| Kit Contents | 4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 4 Washers |
| Spring Rate - Rear | 534 PPI |
| Sway Bar Adjustable - Rear | Yes |
| Sway Bar Diameter - Rear | 18 mm |
| Sway Bar Links Included - Rear | Yes |
| Wheel Alignment Required | Yes |
| Notes | Vehicle sway bar and lowered spring kit - contains WSK-TOY001 and BTK009 - essential to Activate more grip |
Vehicle Fitment
- 2020 Toyota GR Supra (DB)
- 2021 Toyota GR Supra (DB)
- 2022 Toyota GR Supra (DB)
- 2023 Toyota GR Supra (DB)
- 2024 Toyota GR Supra (DB)
- 2025 Toyota GR Supra (DB)
- 2026 Toyota GR Supra (DB)
