Product Details
Whiteline Caster Kits on your 1992-1995 Mazda 929 Base (HD) are designed to improve cornering grip and vehicle straight line stability through increased static caster and dynamic negative camber gain. In addition, synthetic elastomer bushings provide improved steering feedback and braking performance.
Standard Features
- Engineered to alter/ optimize caster alignment to maximize tire contact patch during roll, improve turn-in response & increase directional stability.
- Internal grease reservoirs provide continual self lubrication for optimum friction management.
- Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
- Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
- Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
- Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
Specifications
| Part Number | KCA331 |
| Part Name | Strut Rod Bushing |
| Vehicle | 1992-1995 Mazda 929 Base |
| Chassis Code | HD |
| Bushing Color | Black |
| Bushing Inside Diameter | 26.6 mm |
| Bushing Length | 66.8 mm |
| Bushing Material | Polyurethane |
| Bushing Outside Diameter | 64 mm |
| Bushing Quantity | 2 |
| Durometer | 85 |
| Grade Type | Regular |
| Hardware Included | No |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2 |

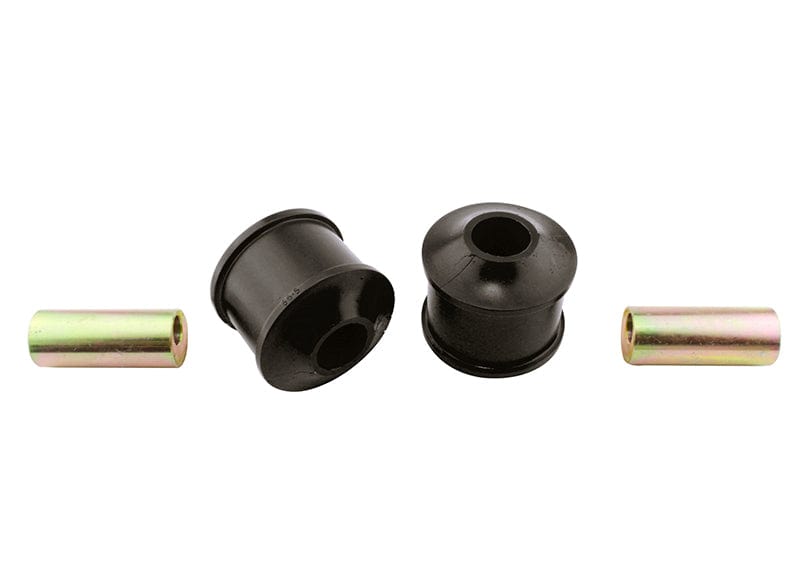

| Kit Contents | 2 Bushings, 2 Tubes, Grease |
| Material | Polyurethane |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | LH/RH adj alignment - adds 0.75 Degree Caster |
