Product Details
Whiteline Caster Kits on your 2012-2016 BMW 328i xDrive 3 Series (F30) are designed to improve cornering grip and vehicle straight line stability through increased static caster and dynamic negative camber gain. In addition, synthetic elastomer bushings provide improved steering feedback and braking performance.
Standard Features
- Install guide included providing detailed instructions on how to install your new purchase .
- Internal grease reservoirs provide continual self-lubrication for optimum friction management.
- Precisely placed dampening voids further reduces harshness from sudden road inputs.
- Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
- Provides a window of adjustment to rectify or optimize a vehicles wheel alignment.
- The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
- Engineered to alter/ optimize caster alignment to maximize tire contact patch during roll, improve turn-in response & increase directional stability.
- Articulation voids deliver necessary suspension articulation and/or compression under loads.
- Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Specifications
| Part Number | KCA473 |
| Part Name | Radius Arm Bushing |
| Vehicle | 2012-2016 BMW 328i xDrive 3 Series |
| Chassis Code | F30 |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Durometer | 80 |
| Inside Diameter | 12.5 mm |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 3 |

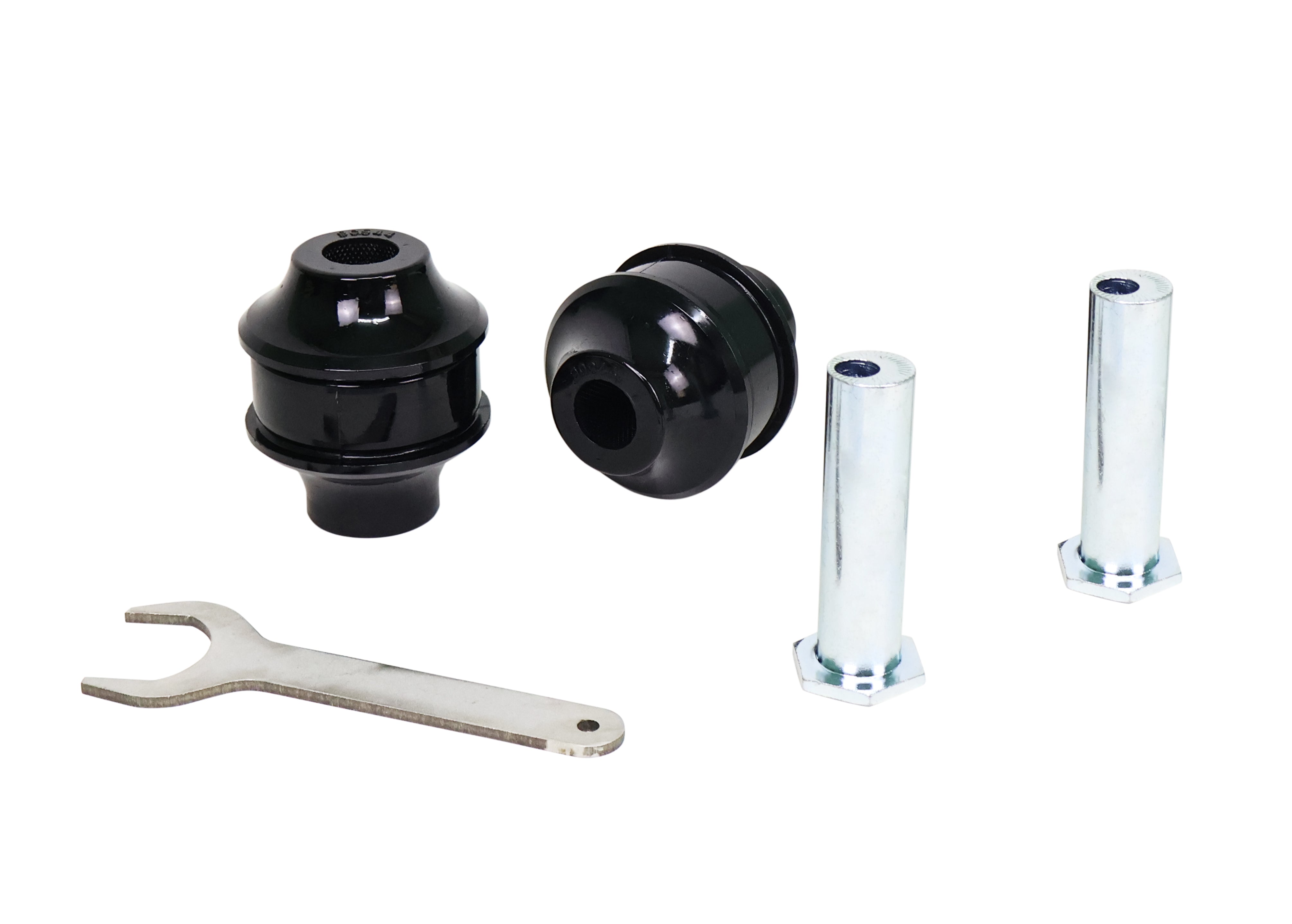

| Kit Contents | 2 Bushings, 2 Tubes, Adjusting Tool, Install Guide, Grease |
| Length | 89 mm |
| Outside Diameter | 70.7 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds +/- 0.5 Degree Caster; Does not Suit xDrive Models |
Vehicle Fitment
- 2012 BMW 328i xDrive 3 Series (F30)
- 2013 BMW 328i xDrive 3 Series (F30)
- 2014 BMW 328i xDrive 3 Series (F30)
- 2015 BMW 328i xDrive 3 Series (F30)
- 2016 BMW 328i xDrive 3 Series (F30)
