Product Details
Whiteline Anti Lift Kits to your 2004-2012 Volvo S40 (P1) are primarily designed to improve traction and cornering grip under power. By increasing static caster and improving front end geometry the new alloy mounts coupled with low compliance synthetic elastomer bushings serve to dramatically sharpen initial turn-in response and reduce understeer.
Standard Features
- 2 Arms, Install Guide
- Designed with the installer in mind by reducing the need of specialized skills, tools and equipment.
- Internal grease reservoirs on bushing provide continual self lubrication for optimum friction management.
- Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
- The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering
- Install guide included providing detailed instructions on how to install your new purchase .
Specifications
| Part Number | KCA428 |
| Part Name | Control Arm Bushings |
| Vehicle | 2004-2012 Volvo S40 |
| Chassis Code | P1 |
| Bushing 1 Inner Diameter | 21.5 mm |
| Bushing 1 Length | 51 mm |
| Bushing 1 Outer Diameter | 32 mm |
| Bushing 2 Inner Diameter | 32.3 mm |
| Bushing 2 Length | 80.5 mm |
| Bushing 2 Outer Diameter | 65.3 mm |
| Bushing Quantity | 2 |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 3 |

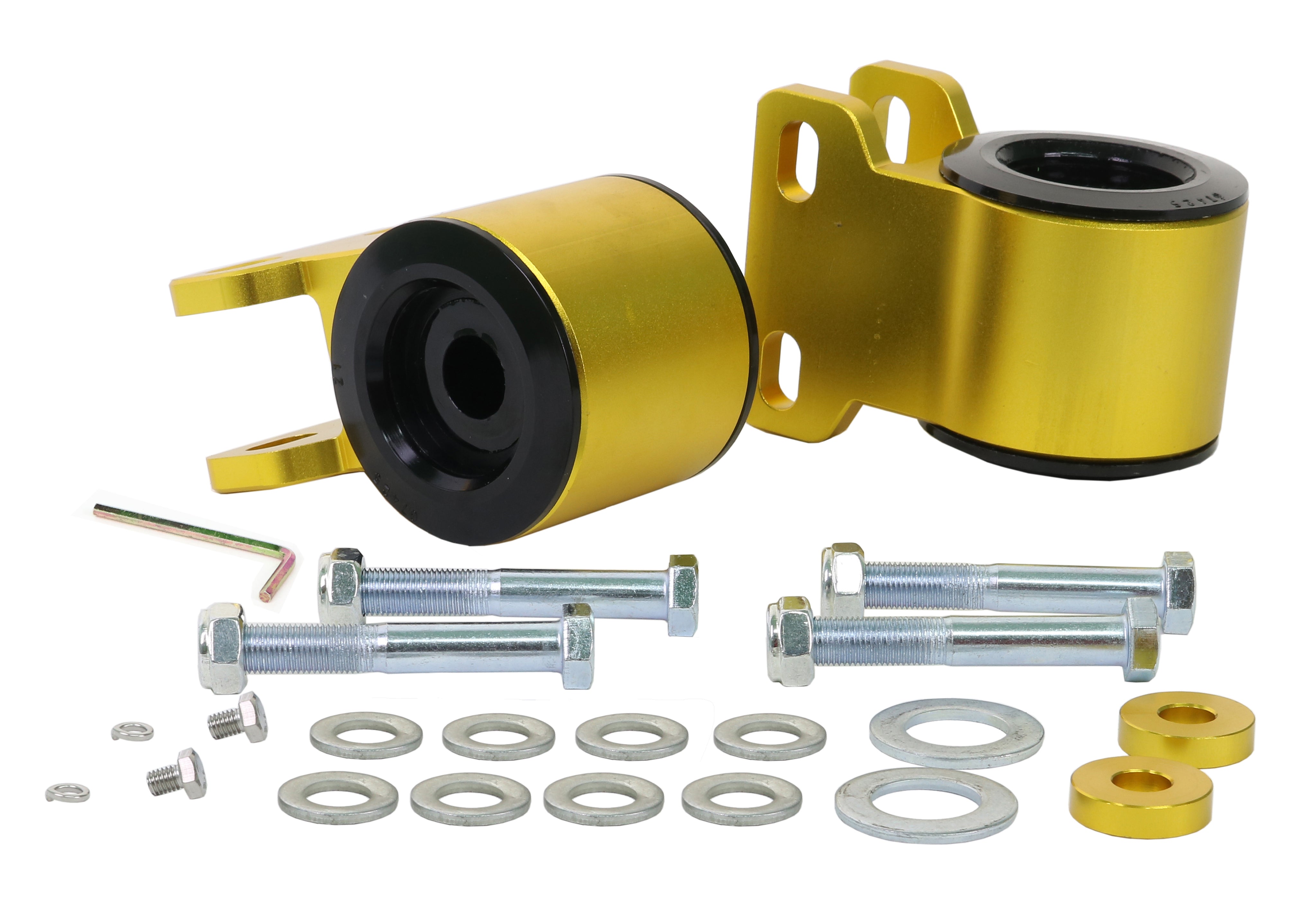

| Kit Contents | 2 Housings, 2 Bushings, 4 Bolts, 2 Spacers, 10 Washers, 2 Screws |
| Material | Polyurethane |
| Mounting Hardware Included | Yes |
| Outside Diameter | 32 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds .5deg caster anti-lift |
Vehicle Fitment
- 2004 Volvo S40 (P1)
- 2005 Volvo S40 (P1)
- 2006 Volvo S40 (P1)
- 2007 Volvo S40 (P1)
- 2008 Volvo S40 (P1)
- 2009 Volvo S40 (P1)
- 2010 Volvo S40 (P1)
- 2011 Volvo S40 (P1)
- 2012 Volvo S40 (P1)
