Product Details
Hard acceleration and braking allow the Lower Control Arms to your 2018 Audi TT (8S) to move around significantly causing axle tramp, poor launch and power delivery. Due to the dynamic nature of these lower control arm bushings this also alters the bump steer characteristics effectively generating significant 'toe in' under hard braking. When replacing the rear caster bushing with a low compliance bushing this alters the dynamic effect within the bump steer so Whiteline has cleverly packaged these items together to give you additional camber during turn in which is achieved through the offset in the low compliance bushing, improved anti lift geometry and neutralized bump steer correction. This kit tightens up the front suspension and makes it more nimble and responsive during acceleration, braking and cornering.
Standard Features
- Engineered to alter/ optimize caster alignment to maximize tire contact patch during roll, improve turn-in response & increase directional stability.
- Featuring premium anodized alloy materials, Whiteline alloy products are anodized providing a long-lasting protective barrier to corrosion and wear but they look great too.
- Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
- Specially bonded design for optimized strength typically required in high load bearing applications.
- Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
- Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
- Internal grease reservoirs provide continual self lubrication for optimum friction management.
- Engineered to alter/ eliminate unwanted bump steer, optimizing the vehicles steering characteristics.
- Install guide included providing detailed instructions on how to install your new Whiteline purchase.
- Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
Specifications
| Part Number | KCA462 |
| Part Name | Control Arm Correction Kit |
| Vehicle | 2018 Audi TT |
| Chassis Code | 8S |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Length | 54 mm |
| Bushing 1 Outer Diameter | 36.8 mm |
| Bushing 2 Inner Diameter | 12.2 mm |
| Bushing 2 Length | 54 mm |
| Bushing 2 Outer Diameter | 64.6 mm |
| Bushing Quantity | 2 |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2 |

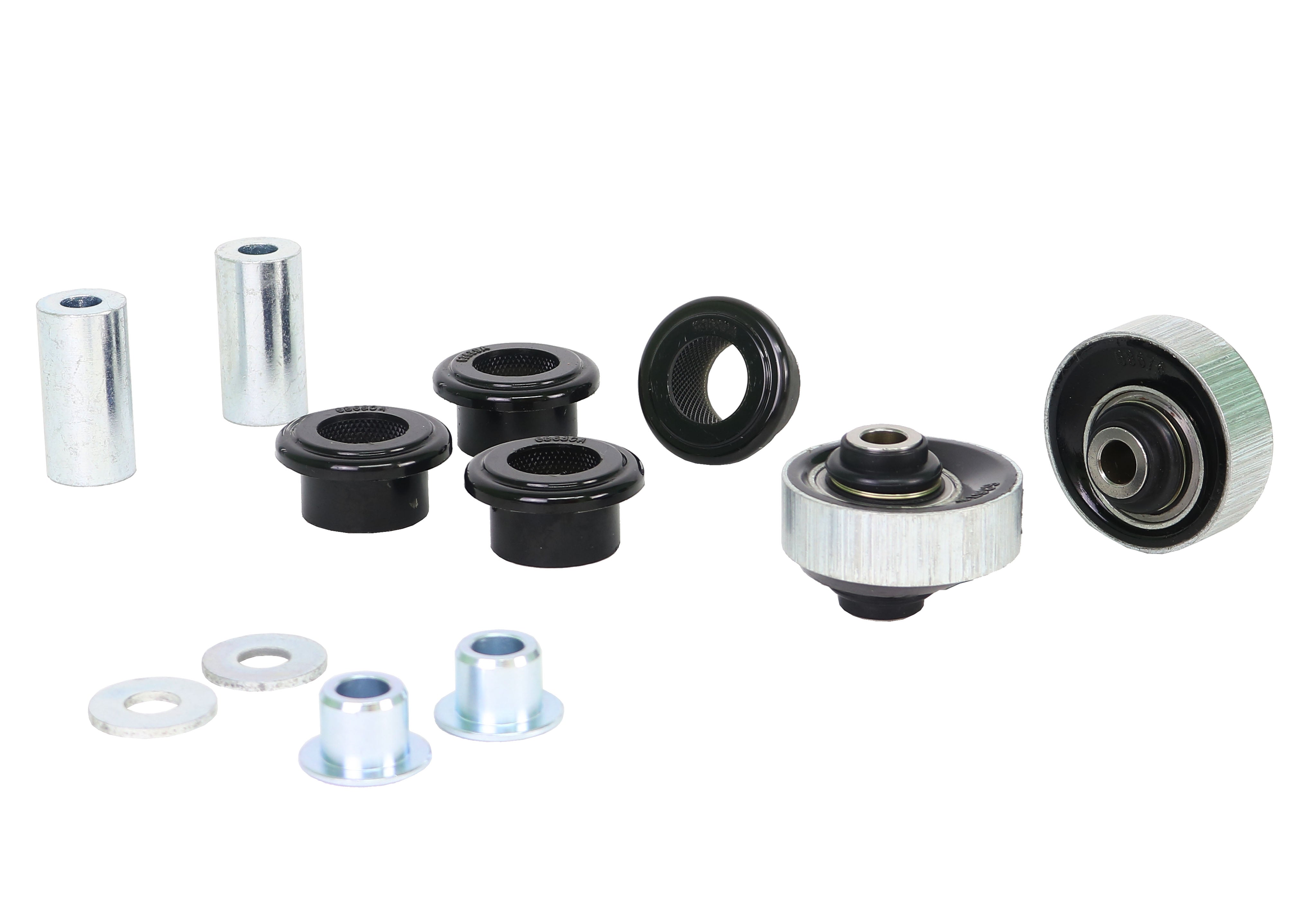

| Kit Contents | 2 Shell Bushings, 4 Bushings, 2 Tubes, 4 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 36.8 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Contains Control arm and Bumpsteer bushings - adds .5 Degree Caster Anti-Lift |
Vehicle Fitment
- 2018 Audi TT (8S)
