Product Details
Improve the performance of your 2013-2025 Subaru BRZ (ZN6/ZD8) with the Rear Fixed Sway Bar Link. Mounts, drop links and lateral stoppers can hinder the performance of your Sway Bar if worn or insufficient. This kit is designed to be light weight while aligning with top components and features creating enhanced performance of the Sway Bar. The Sway Bar Drop Links eliminate the pressure the Sway Bar is under when your BRZ is at rest at ground level. Drop links allow for the vehicle have improved grip and handling. High tensile extruded alloy materials, ultra-low compliance synthetic elastomer bushings, and fixed-length design enhance durability. Protective plating on all metal components resist corrosion to further provide durability. Ultra-low compliance synthetic elastomer bushings reduce unwanted flex and movement creating sharper steering feedback, while also providing resistance to oil, grease, and weathering. This kit comes with 2 rear Sway Bar Links, 4 spacers, 2 bolts, 4 washers, and 2 nuts.
Standard Features
- 2 Arms, Install Guide
- Designed with the installer in mind by reducing the need of specialized skills, tools and equipment.
- Internal grease reservoirs on bushing provide continual self lubrication for optimum friction management.
- Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
- The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering
- Install guide included providing detailed instructions on how to install your new purchase .
Specifications
| Part Number | KLC231 |
| Part Name | Sway Bar Links |
| Vehicle | 2013-2025 Subaru BRZ |
| Chassis Code | ZN6/ZD8 |
| Adjustable | No |
| Bolts Included | Yes |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| Color | Black |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |

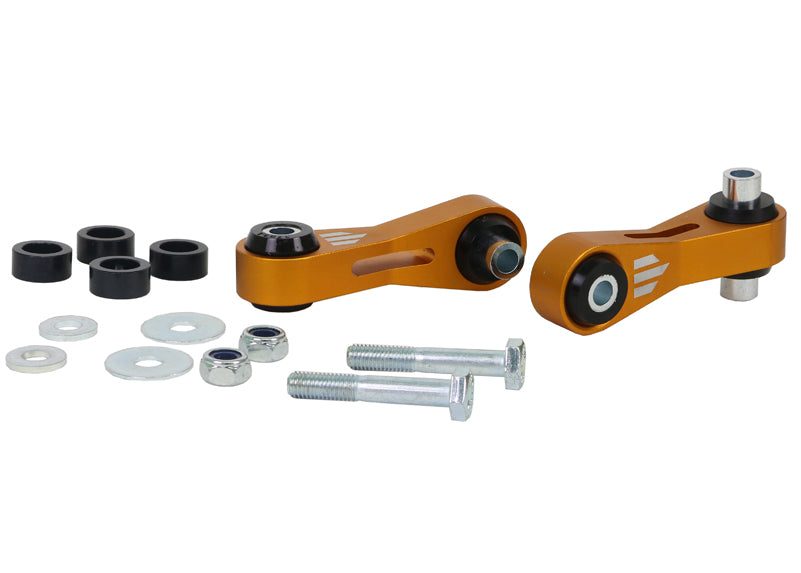

| Kit Contents | 2 Links, 4 Spacers, 2 Bolts, 4 Washers, 2 Nuts |
| Length | 90 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | No |
| Washers Included | Yes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Extra Heavy Duty Fixed. Length 90mm. |
Vehicle Fitment
- 2013 Subaru BRZ (ZN6/ZD8)
- 2014 Subaru BRZ (ZN6/ZD8)
- 2015 Subaru BRZ (ZN6/ZD8)
- 2016 Subaru BRZ (ZN6/ZD8)
- 2017 Subaru BRZ (ZN6/ZD8)
- 2018 Subaru BRZ (ZN6/ZD8)
- 2019 Subaru BRZ (ZN6/ZD8)
- 2020 Subaru BRZ (ZN6/ZD8)
- 2021 Subaru BRZ (ZN6/ZD8)
- 2022 Subaru BRZ (ZN6/ZD8)
- 2023 Subaru BRZ (ZN6/ZD8)
- 2024 Subaru BRZ (ZN6/ZD8)
- 2025 Subaru BRZ (ZN6/ZD8)
