Product Details
Developed from actual competition, TEIN was able to create a fully adjustable damper that can be easily tuned for any track and weather conditions. TEIN Super Racing Dampers for your 2012-2016 Subaru BRZ S, R RWD (ZC6) utilize a full-length adjustment system to allow shock length and spring pre-load to be adjusted independently. Separate 16 - way adjustments for compression and rebound damping enable the user to fine tune for any situation. TEIN has incorporated both camber and caster adjustment into the front pillow ball upper mounts for strut type vehicles. External reservoirs on SA type dampers allow for added oil capacity. Spring rates and shock valving were derived from many years of motorsports support, to provide the ultimate damper for competition. Designed and tested for circuit use by advanced and professional drivers who are seeking complete damper tuning capability.
Standard Features
- Steel Construction
- Mono Tube internal construction
- Inverted design for strut type front and rear
- Ride Height adjustable via threaded body and spring seats
- 16 x 16 way adjustable dampers, compression and rebound separately adjustable
- Pillow ball upper mounts for increased steering feel
- Upper and lower camber adjustment on front for strut type vehicles
- Caster adjustment on front for strut type vehicles
- Dual EDFC (Electronic Damping Force Controller) compatible
- Powder coated brackets with Teflon coated shock body for heavy duty rust prevention
- Available for Overhaul & Revalving
- 1 year warranty

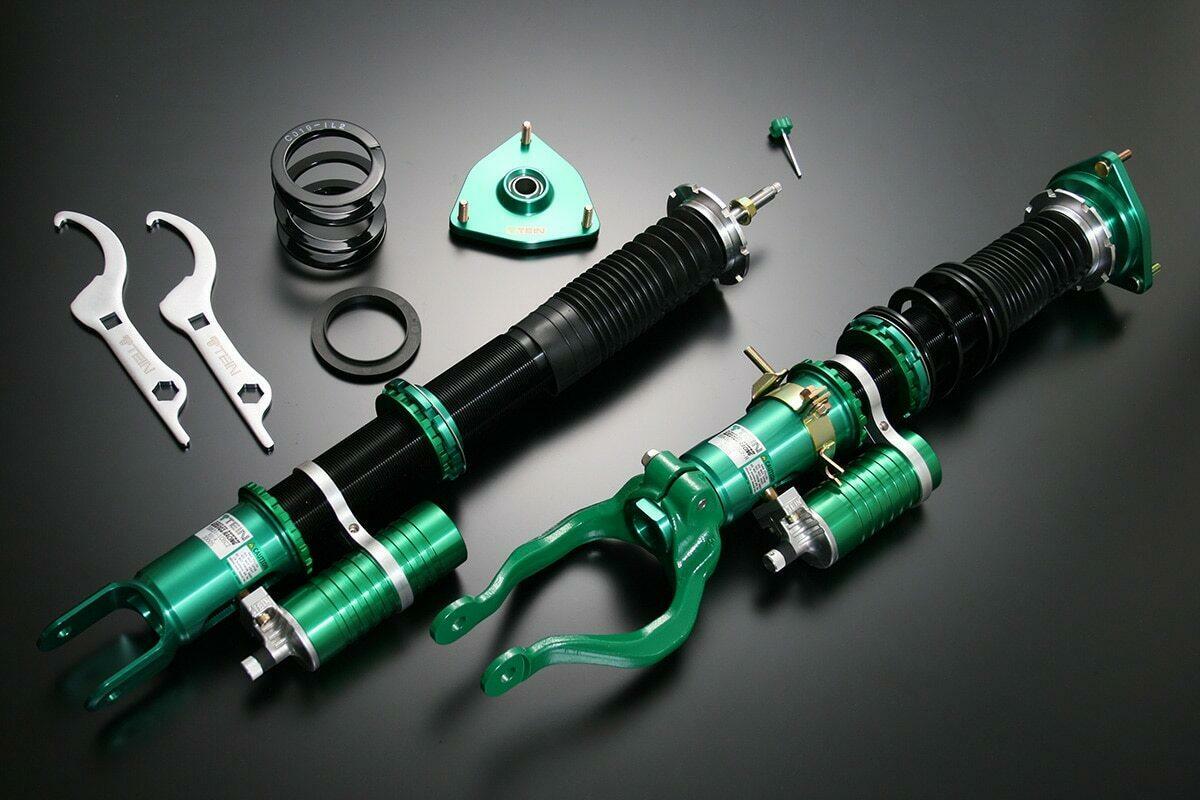

What's Included
- Adjustable Shock Absorber x 4
- Bump Rubber x 4
- Hook Spanner x 2
- Some applications include helper springs Dust Cover x 4
- Pillow ball Upper Mount x 4
- Instruction Manual x 1
- Lower Spring Seat x 4
- Sticker Sheet x 1
- Seat Lock x 12
Specifications
| Part Number | DSQ54-81LS1 |
| Part Name | Super Racing Coilovers |
| Vehicle | 2012-2016 Subaru BRZ S, R RWD (ZC6) |
| Chassis | ZC6 |
| Engine | 2000 |
| Adjustment Type | 1-Way |
| Damping Adjustable - Front | Yes |
| Damping Adjustable - Rear | Yes |
| Ride-Height Adjustable - Front | Yes |
| Ride-Height Adjustable - Rear | Yes |
| Upper Mounts - Front | Camber Caster Adjustable |
| Upper Mounts - Rear | Pillowball |
| Spring Rates - Front | 10 Kg/mm (559.97 lbs/in) |
| Spring Rates - Rear | 12 Kg/mm (671.97 lbs/in) |
| Ride Height Range - Front | -0.8 to -2.2 |
| Ride Height Range - Rear | -0.5 to -2.1 |
| EDFC Compatible | Yes |
| Notes | Ride height drop shown is recommended value for circuit use and might not meet vehicle safety regulations. RR: interior needs to be cut or removed, to avoid interference. Recommended spring: high load type. |
Vehicle Fitment
- 2012 Subaru BRZ S, R RWD (ZC6)
- 2013 Subaru BRZ S, R RWD (ZC6)
- 2014 Subaru BRZ S, R RWD (ZC6)
- 2015 Subaru BRZ S, R RWD (ZC6)
- 2016 Subaru BRZ S, R RWD (ZC6)
