Product Details

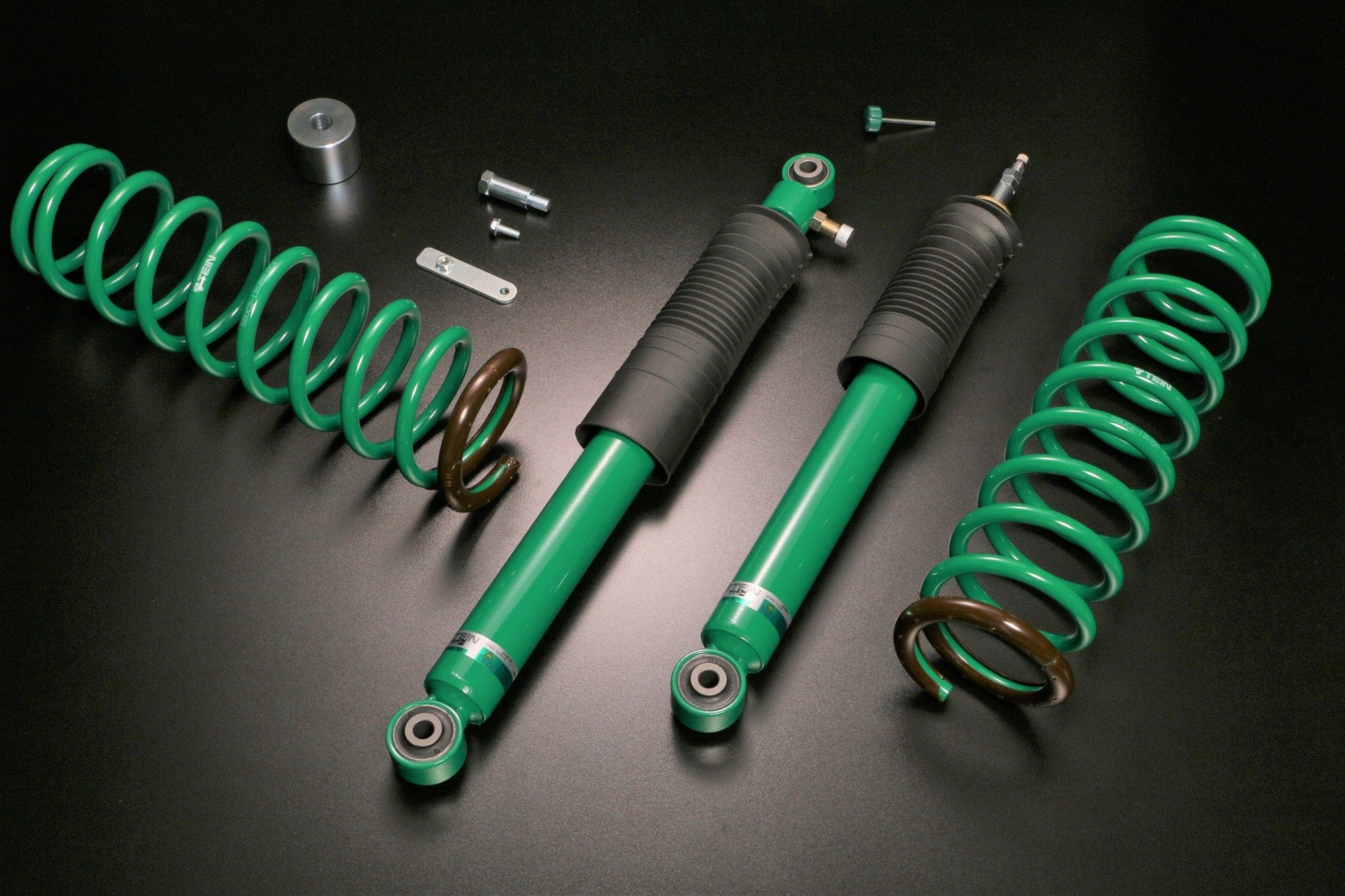

The TEIN 4x4 Damper Sport Coilover Kit for your 2010-2018 Toyota FJ Cruiser Base 4WD (GSJ15W) is a rugged, lift-capable suspension solution built for off-road and 4WD applications. It uses a twin-tube damper design that delivers a long stroke and smooth ride, even on rough terrain. The lower spring seats are height-adjustable, offering about +40 mm (~1.5 in) of lift over stock. At the heart of the system is TEIN’s patented H.B.S. (Hydraulic Bump Stopper) mechanism: instead of a traditional rubber bump stop, the H.B.S. converts hard impacts into thermal energy, reducing rebound harshness and improving control, especially when the vehicle is fully loaded. The shocks feature 16-stage damping adjustment (for both compression and rebound), allowing fine-tuning of ride comfort and handling. The springs are made of high-strength SAE9254 steel to resist sag, and are coated with a durable, rust-resistant powder finish.
The damper bodies are also powder-coated in TEIN-green for corrosion protection. Inside, TEIN uses a high-performance damper oil that resists foaming and maintains stable viscosity across a wide temperature range, so damping stays consistent in various driving conditions. Together, these features make the 4×4 Damper Sport Coilover Kit a balanced choice for drivers who need both lift and dependable performance on rugged terrain - combining durability, adjustability, and comfort in one package.
Standard Features
- Ride-height adjustable via lower spring seat, with about +40 mm (~1.5 in) lift over stock.
- Twin-tube shock design for long stroke and smoother comfort over rough terrain.
- H.B.S. (Hydraulic Bump Stopper) mechanism converts bump energy into heat, reducing rebound harshness and improving durability.
- 16-level damping adjustment, allowing fine tuning of compression and rebound to match driving conditions.
- Rust-resistant powder-coated damper bodies in TEIN-green, using a 2-layer, 1-bake anti-corrosion process.
- No-sag coil springs made from high-strength SAE9254 steel, with long-term resilience and strong finish.
Specifications
| Part Number | VSTG0-F1SS2 |
| Part Name | Damper Sport Coilovers |
| Vehicle | 2010-2018 Toyota FJ Cruiser Base |
| Chassis Code | GSJ15W |
| Engine | 4000 |
| Drivetrain | 4WD |
| Ride-Height Adjustable | No |
| Damping Adjustment | 1-Way |
| Damping Adjustable - Front | Yes |
| Damping Adjustable - Rear | Yes |
| Upper Mount - Front | OEM |
| Upper Mount - Rear | OEM |
| Ride Height Range - Front | 2.4 to -0.8 |
| Spring Rate - Front | 10.5 kg/mm (560 lbs/in) |
| Spring Rate - Rear | 4.5 kg/mm (224 lbs/in) |
| Notes | Not Compatible with Vehicles Manufactured in Oct 2010 October Earlier. |
Vehicle Fitment
- 2010 Toyota FJ Cruiser Base 4WD (GSJ15W)
- 2011 Toyota FJ Cruiser Base 4WD (GSJ15W)
- 2012 Toyota FJ Cruiser Base 4WD (GSJ15W)
- 2013 Toyota FJ Cruiser Base 4WD (GSJ15W)
- 2014 Toyota FJ Cruiser Base 4WD (GSJ15W)
- 2015 Toyota FJ Cruiser Base 4WD (GSJ15W)
- 2016 Toyota FJ Cruiser Base 4WD (GSJ15W)
- 2017 Toyota FJ Cruiser Base 4WD (GSJ15W)
- 2018 Toyota FJ Cruiser Base 4WD (GSJ15W)
