Product Details

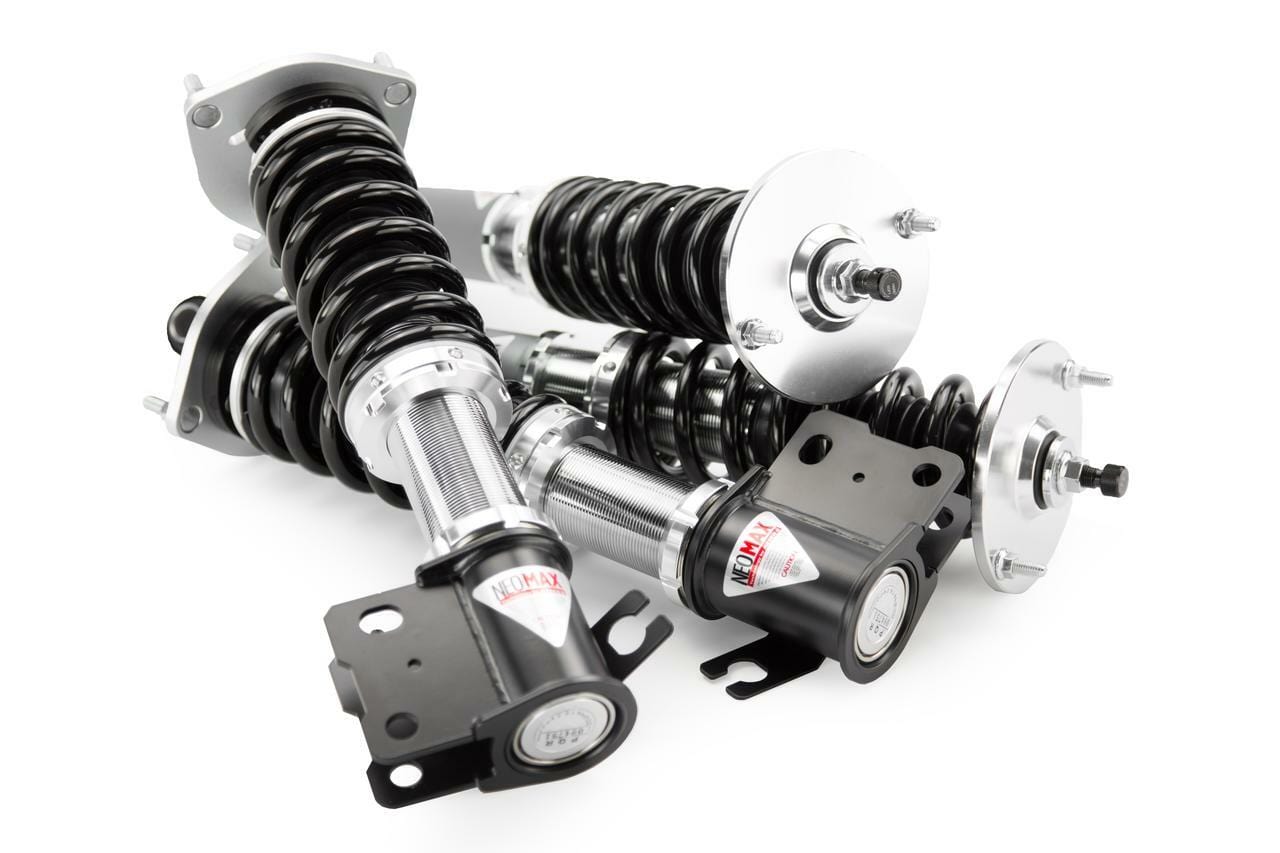

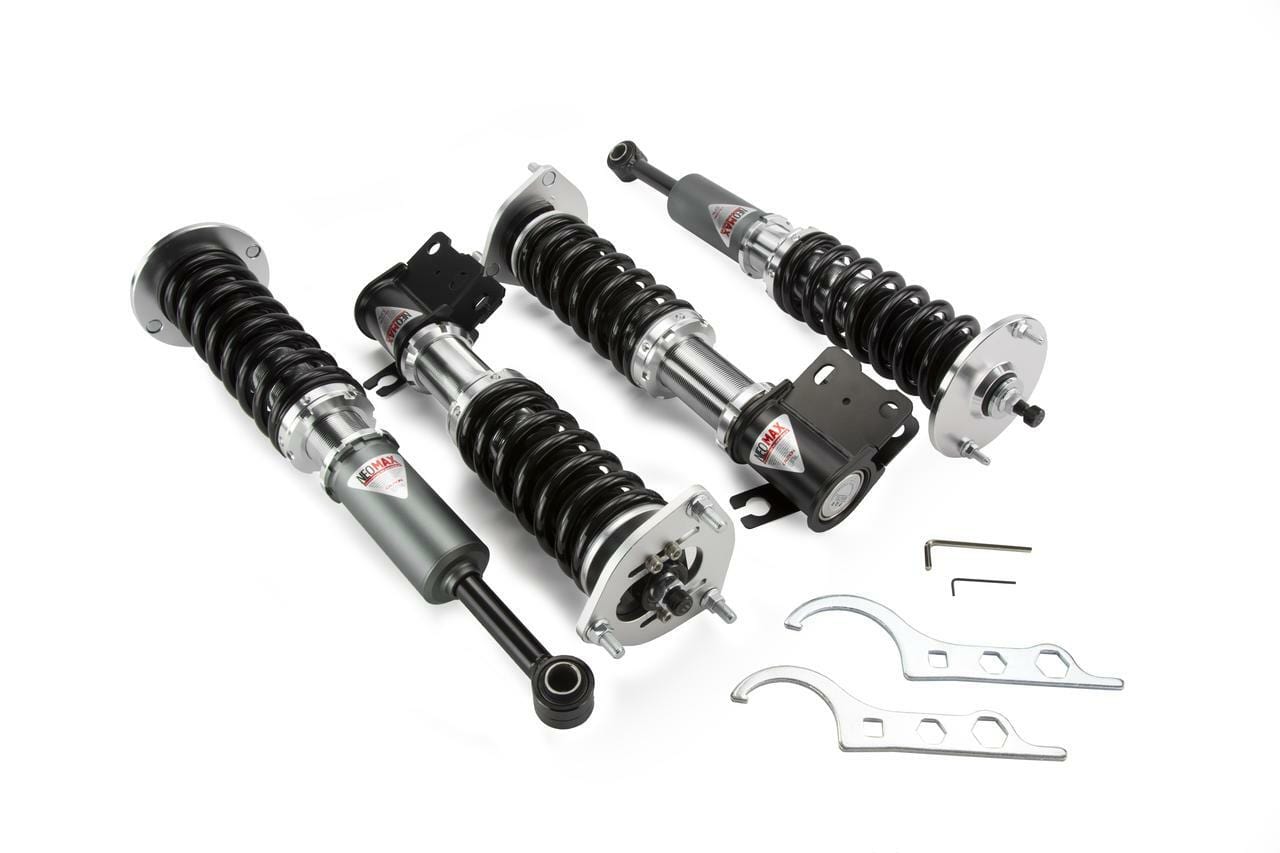

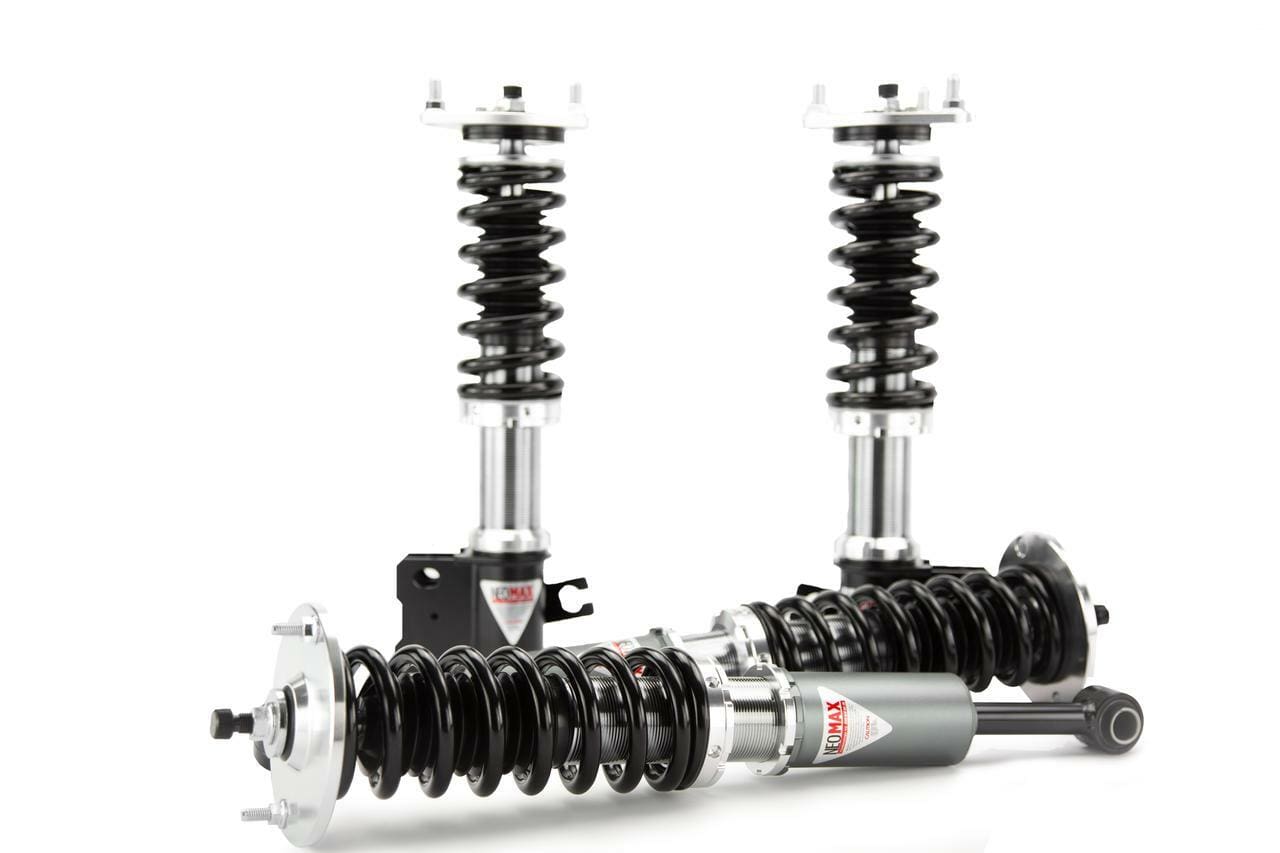

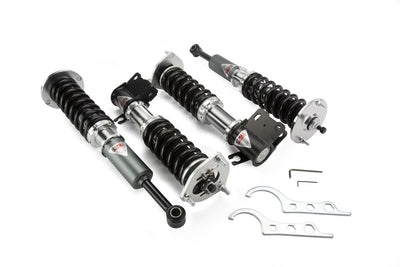

Silvers NEOMAX coilovers for the 2010-2017 BMW 5 Series 6 Cyl AWD/RWD (F11) are the flagship coilovers in the Silvers lineup, delivering premium suspension performance with simple one-way adjustability. Built for drivers who want comfort, control, and reliability, these coilovers are the ideal upgrade for both street and spirited driving.
The NEOMAX 1-Way features 24 levels of rebound/compression adjustment combined into a single easy-to-use system. This allows precise tuning of ride quality and handling response without unnecessary complexity. The mono-tube shock design with a 44mm piston ensures consistent damping, excellent heat dissipation, and resistance to shock fade during aggressive driving.
These coilovers are fully ride height adjustable through the lower mount, allowing you to lower or raise your vehicle without affecting shock travel or preload. Adjusting ride height not only gives you control over stance and appearance but also improves handling by lowering the center of gravity, reducing body roll, and sharpening cornering response.
Constructed from high-strength carbon steel with cold-bent SAE9254 springs, these performance coilovers are built for durability and stability. With lightweight aluminum top mounts, pillowball or camber plate options, and a fully rebuildable design, Silvers coilovers deliver long-term value. Backed by an industry-leading 5-year limited warranty on hard parts and 2 years on consumables, the NEOMAX series stands as one of the most trusted coilover systems available.
Standard Features
- 24 levels of combined rebound and compression damping adjustment

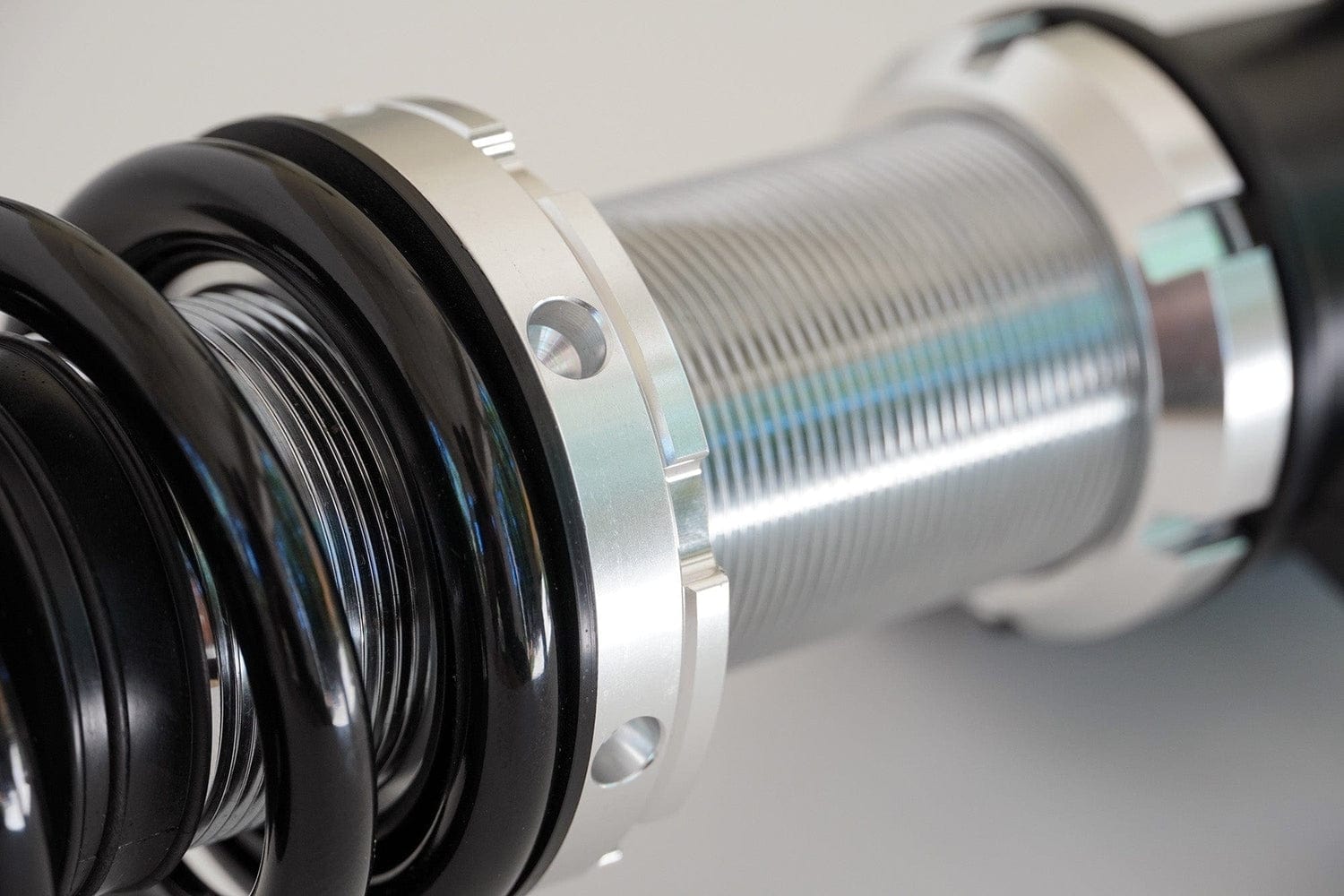

- Fully ride height adjustable through the lower mount (no preload change required)

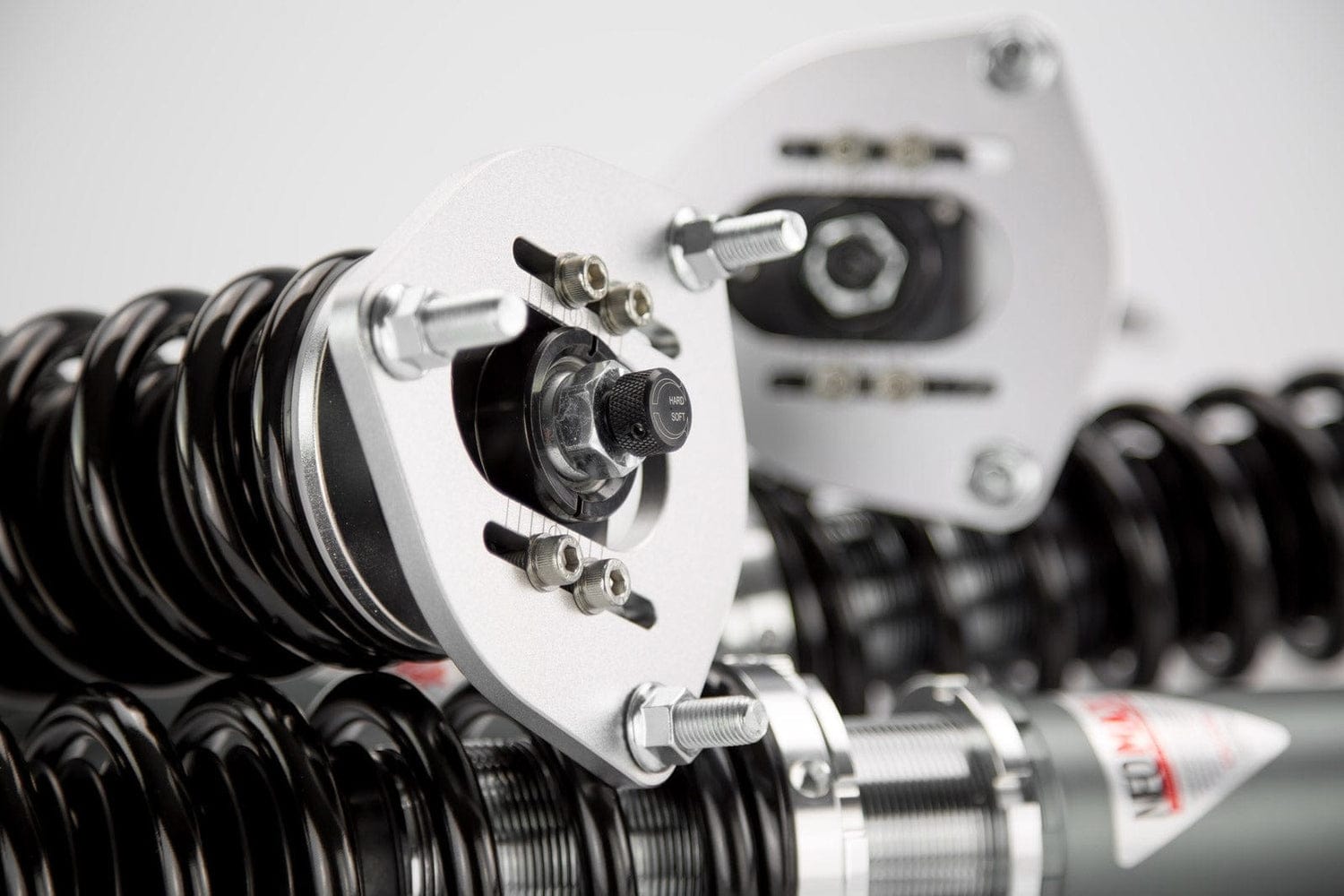

- Adjustable T6 6061 front camber plates on all applicable MacPherson applications
- Koyo Japan radial bearing upper spring perch eliminates spring bind and noise
- 44mm piston with digressive valving for performance and comfort
- Mono-tube shock design with high viscosity IP F.A. 5W damper oil
- 52mm seamless carbon steel shock body for strength and durability
- Cold-bent SAE9254 steel springs with stable elasticity

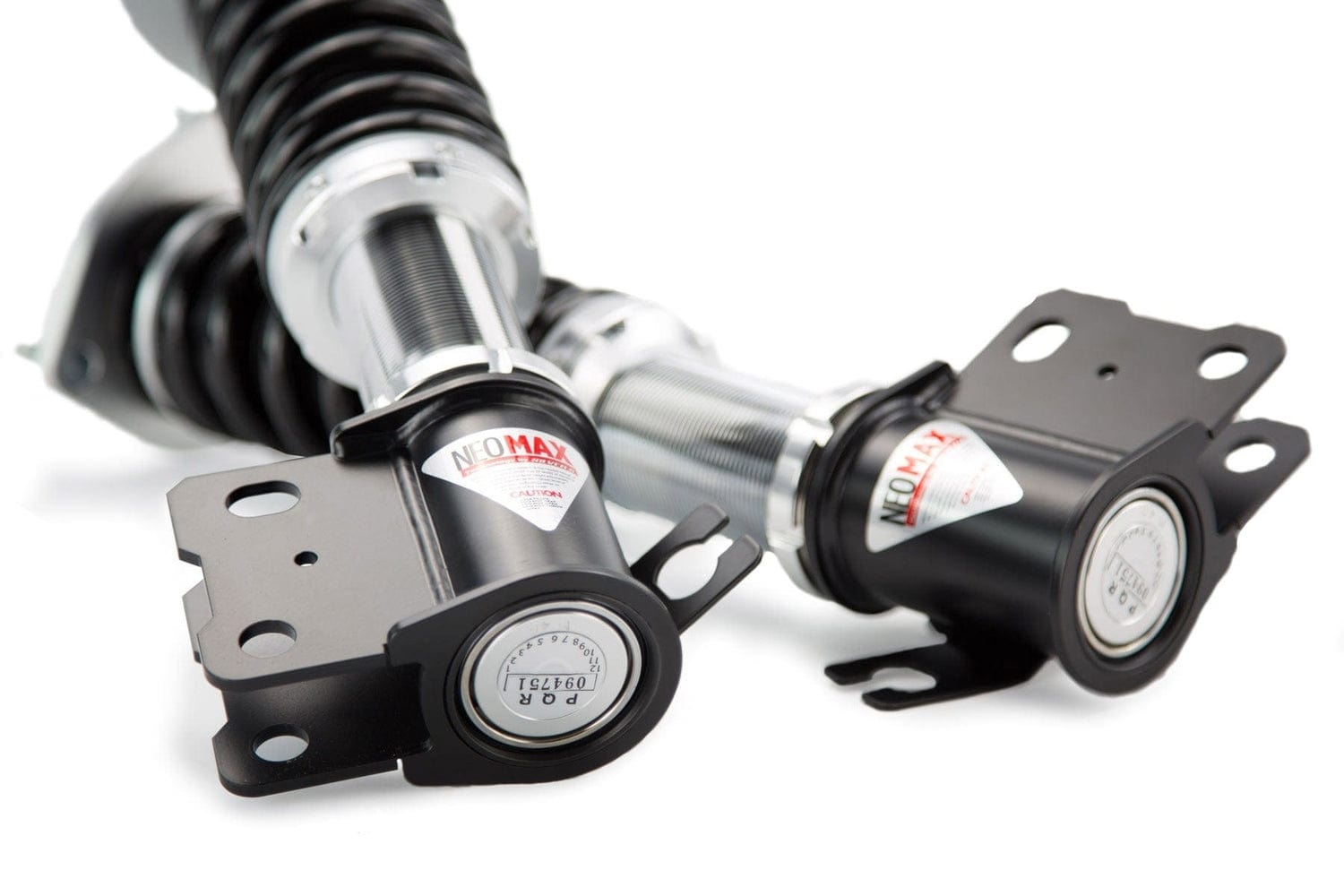

- Powder-coated steel lower brackets with factory brake/ABS line tabs
- Anodized T6 6061 aluminum lower mounts to reduce unsprung weight
- Fully rebuildable and serviceable design
- Industry-leading warranty: 5 years on Hard Parts, 2 years on Consumable Parts
Specifications
| Part Number | SB1054 |
| Old Part Number | NB142-1 |
| Part Name | NEOMAX Coilovers |
| Vehicle | 2010-2017 BMW 5 Series 6 Cyl |
| Chassis Code | F11 |
| Drivetrain | AWD/RWD |
| Ride-Height Adjustable | Yes |
| Adjustment Type | 1-Way |
| Spring Rates - Front | 14 kg/mm |
| Spring Rates - Rear | Not Applicable |
| Super Low Drop Optional | No |
| Swift Springs Optional | Yes (Front Only) |
| Custom Spring Rates Optional | Yes (Front Only) |
| Camber Plates - Front | Not Applicable |
| Camber Plates - Rear | Not Applicable |
| Top Mounts - Front | Non-Adjustable Top Mounts Included (Generally All Metal - No Bushings) |
| Top Mounts - Rear | Non Adjustable Top Mounts Included (Generally All Metal - No Bushings) |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | True Coilover |
