Product Details
RS-R Sports-i coilovers for the 2017-2018 Toyota Corolla iM (ZRE186L) balance daily-driver comfort with serious track capability on the same set of dampers. The 36-level single-knob adjustment, vehicle-specific spring rates, and full ride-height range let you dial the Corolla in for the commute on Monday and for a canyon run or track day on Saturday without touching a tool beyond the damper click wheel.
The Sports-i is RS-R’s foundation street-and-canyon coilover — a 36-level single-knob monotube damper built in-house in Osaka, Japan, with full ride-height adjustment and vehicle-specific spring rates. It is engineered to be driven daily yet firm enough for spirited weekend use. Backed by RS-R’s 1-year / 12,000-mile warranty and available as a rebuildable, serviceable unit.
Features
- 36-level single-knob damping adjustment
- Full ride-height adjustment via lower-mount perch
- Vehicle-specific spring rates matched to chassis
- Monotube internal piston, hand-assembled in Japan
- Rebuildable — damper cartridges can be overhauled
- 1-Year / 12,000-mile RS-R warranty
Availability
This application is a special-order item from Japan. Lead time by standard sea freight is approximately 3–6 months. Expedited DHL/FedEx/UPS shipping from Japan is available for an upcharge when stock is on hand — contact us for current lead time.
What’s Included

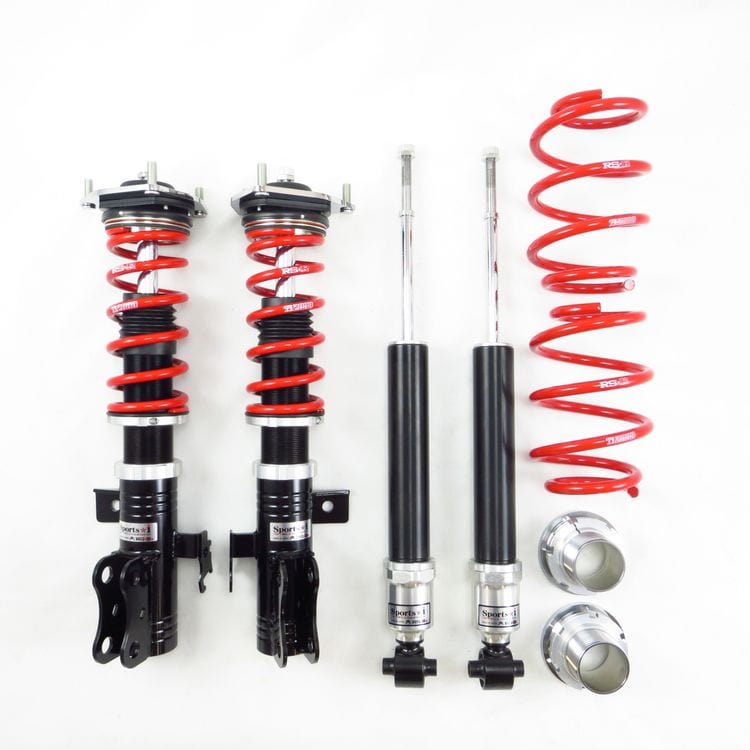

- Full coilover set (front and rear)
- Hex and allen wrenches
- Upper rubber seat for rear
- Hex nut, bolt and washer for rear shock
- Waterproof rubber damper cover
- Spring tubes for front and rear
Specifications
| Part Number | XBIT557M |
| Part Name | RS-R Sports-i Coilovers |
| Vehicle | 2017-2018 Toyota Corolla iM |
| Chassis Code | ZRE186L |
| Damping Adjustment | 36-Level Single-Knob |
| Ride-Height Adjustable | Yes |
| Damper Construction | Monotube |
| Preset Approximate Height - Front | -35mm to -40mm (-1.4in to -1.6in) |
| Preset Approximate Height - Rear | -35mm to -40mm (-1.4in to -1.6in) |
| Maximum Adjustment Range - Front | -5mm to -80mm (-0.2in to -3.1in) |
| Maximum Adjustment Range - Rear | -20mm to -60mm (-0.8in to -2.4in) |
| Recommended Adjustment Range - Front | -15mm to -55mm (in to in) |
| Recommended Adjustment Range - Rear | -20mm to -60mm (-0.8in to -2.4in) |
| Spring Rate - Front | 5.0 Kg/mm |
| Spring Rate - Rear | 3.7 Kg/mm |
| Upper Mount - Front | Rubber Bushings (OEM-style) |
| Upper Mount - Rear | Rubber Bushings (OEM-style) |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | Divorced |
| Rebuildable | Yes |
| Warranty | 1 Year / 12,000 Miles |
Vehicle Fitment
- 2017 Toyota Corolla iM (ZRE186L)
- 2018 Toyota Corolla iM (ZRE186L)
