Product Details

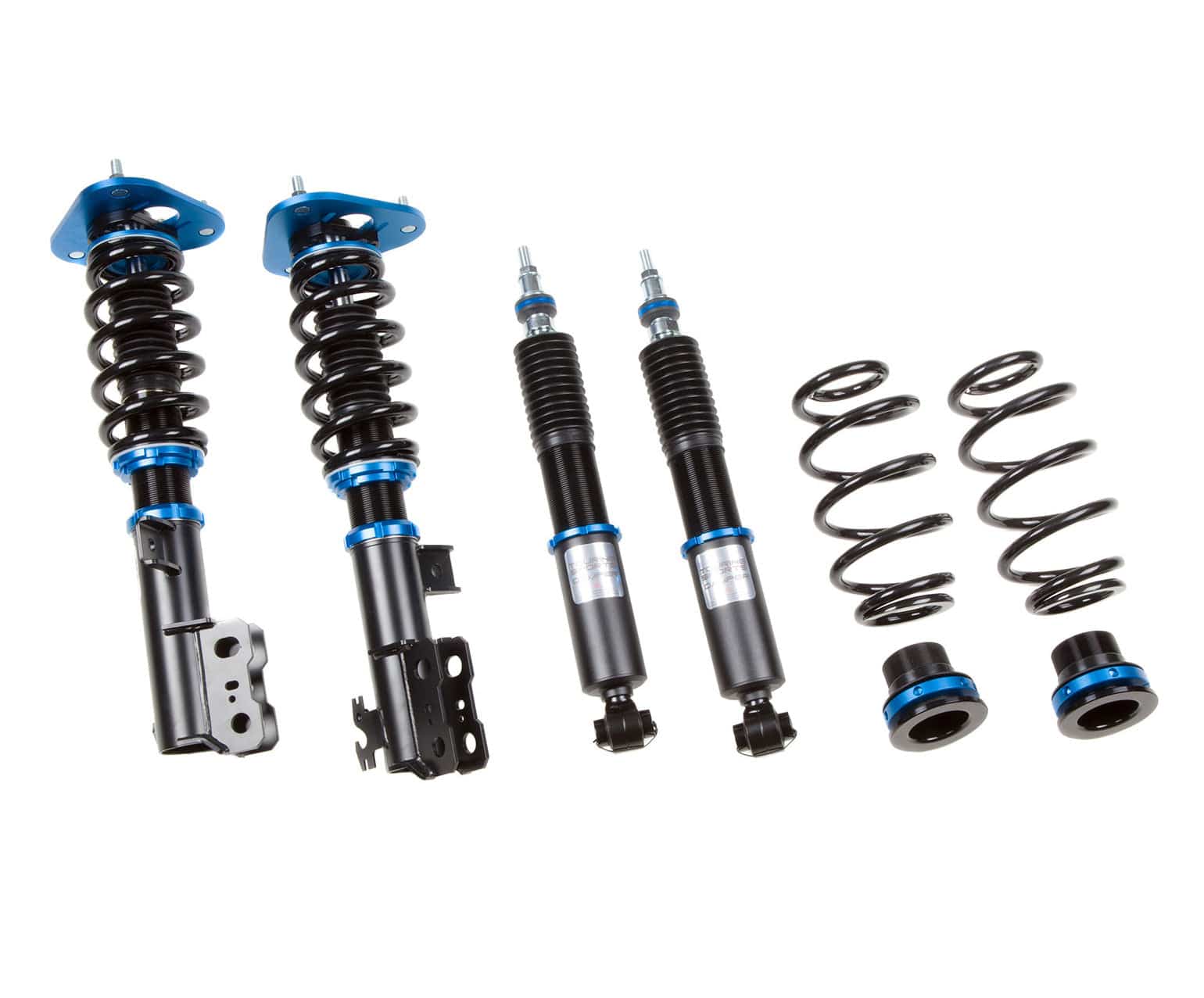

Upgrade your suspension with the Revel Touring Sport Coilovers — also known as the Revel TSD Coilover Kit — engineered specifically for the 2018-2022 Toyota CH-R (AX10/AX50). This performance suspension system delivers a premium balance of ride comfort and sharp handling, making it ideal for street and track enthusiasts alike. Featuring 32-way adjustable coilovers, drivers can fine-tune damping settings to suit daily driving, spirited canyon runs, or weekend track days.
Built with a monotube damper design, the Touring Sport Coilovers ensure consistent performance and improved heat dissipation under aggressive driving conditions. Pillowball top mounts and Teflon thrust washers enhance steering feedback and reduce spring binding and noise, especially on MacPherson strut vehicles. Neoprene shock covers are included to protect the coilovers from dirt and debris, helping to extend product life and maintain consistent performance.
Manufactured by Tanabe, Revel coilovers reflect Japanese engineering precision with features like adjustable ride height, independent preload settings, and pre-selected spring rates optimized for the Acura Integra chassis. Whether you’re seeking a lowered stance or improved cornering response, this coilover kit delivers reliable performance with daily drivability in mind.
Key Features
- 32-way adjustable coilovers for fine-tuned damping control
- Monotube design with large piston valves for consistent suspension performance
- Pillowball upper mounts for precise steering feel (where applicable)
- Teflon thrust washers reduce spring bind and noise on MacPherson setups
- Protective neoprene shock covers included
- Spring rates tuned for street and spirited driving (model-specific)
- Fully adjustable ride height and independent preload
- Designed for performance street driving and occasional track use
- Trusted Japanese engineering by Tanabe
Specifications
| Part Number | 1TR3CDTY001 |
| Part Name | Revel Touring Sport Damper Coilovers |
| Vehicle | 2018-2022 Toyota CH-R |
| Chassis Code | AX10/AX50 |
| Ride Height Adjustable | Yes |
| Damping Adjustable | 1-Way (Rebound & Compression) |
| Spring Rate - Front (Kg/mm) | 6K |
| Spring Rate - Rear (Kg/mm) | 5K |
| Upper Mounts - Front | Camber Plates with Pillowball Bushings |
| Upper Mounts - Rear | Not Applicable |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | Separate Spring & Shock |
| Radial Bearings | Yes |
| Coilover Covers | Included |
| Country of Origin | Taiwan |
| Note |
Vehicle Fitment
- 2018 Toyota CH-R (AX10/AX50)
- 2019 Toyota CH-R (AX10/AX50)
- 2020 Toyota CH-R (AX10/AX50)
- 2021 Toyota CH-R (AX10/AX50)
- 2022 Toyota CH-R (AX10/AX50)
