Product Details

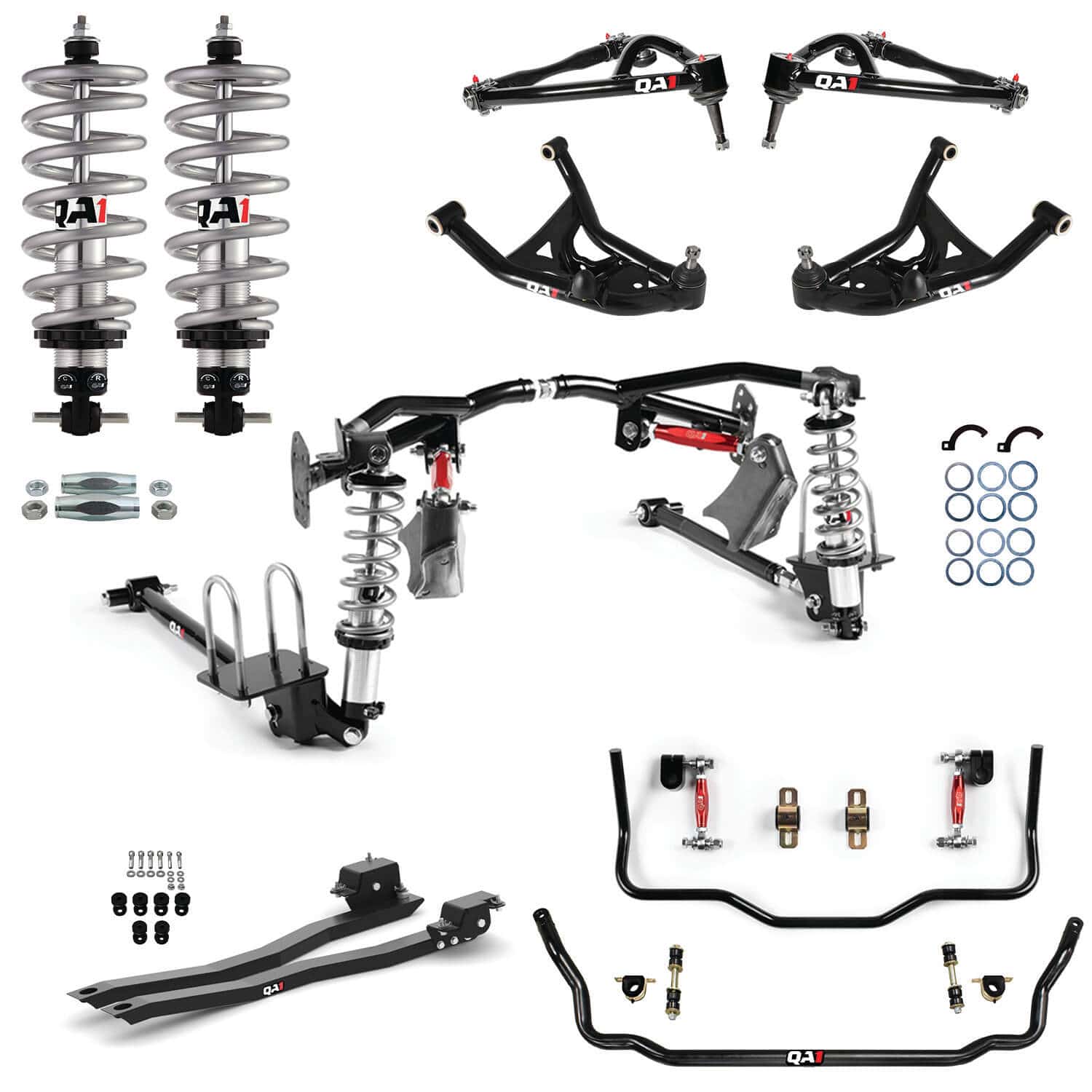

QA1's Level 2 Handling Kit is a complete solution for the 1975-1981 Chevrolet Camaro owners who love twisty back roads and weekend track day events. This complete solution replaces your entire Front and Rear Suspension, optimizing ride quality and handling performance. The coilovers offer adjustable ride height, while the Rear Suspension was optimized for wider wheels and tires. Bind Free, Light-weight Front Suspension QA1's tubular front Control Arms stand out as some of the lightest available in the market. Low friction polyurethane bushings reduce flex and deliver bind-free movement. When paired with QA1's double adjustable Pro-Coil coilovers, and front Sway Bar this kit offers plenty of control. Achieve the Perfect Stance Factory coil springs and leaf springs limit your ability to achieve the perfect stance on your Camaro or Firebird. Upgrading to QA1's coilovers and a tubular 4-link provides 0 to -2 inches of adjustability in the front and 1.25 inches of height adjustability in the rear. Fit Wider Wheels & Tires Designed to work with both standard and mini-tubs, the rear system offers generous clearance for up to 12-inch-wide wheels and 335 tires. Note: Achieving maximum wheel and tire width will require mini tubs. Improved Performance and Stability Perfect for both street and track use, double Adjustable Shocks are famous for their independent rebound and compression tunability. Easy, Installation & Adjustment Thoughtful design meets effortless installation with a completely bolt-in front suspension and a 4-link requiring minimal welding. You'll experience a painless installation and setup process.
Standard Features
- 3 levels of kits to choose from for better launch, straight-line stability & consistent performance
- Build in stages
- Carefully curated for maximum performance
- Ultimate ride height and shock tunability
- Strong, lightweight tubular components
- Best-in-class warranty
- Made in the USA
Specifications
| Part Number | HK52-GMF2 |
| Part Name | Handling Suspension Kit |
| UPC | 806990017376 |
| Vehicle | 1975-1981 Chevrolet Camaro |
| Front Coil Springs Included | Yes |
| Rear Coil Springs Included | Yes |
| Rear Leaf Springs Included | No |
| Front Shocks/Struts Included | No |
| Front Shock Type | Double Adjustable twin-tube |
| Rear Shocks/Struts Included | Yes |
| Rear Shock Type | Double Adjustable twin-tube |
| Front Sway Bar Included | Yes |
| Front Sway Bar Color | Black |
| Front Sway Bar Type | Hollow |
| Front Sway Bar Diameter | 1.375 in. |
| Rear Sway Bar Included | Yes |
| Rear Sway Bar Color | Black |
| Rear Sway Bar Type | Solid |
| Rear Sway Bar Diameter | 0.875 in. |
| Tie Rod Sleeves Included | Yes |
| End Link Bushings Included | Yes |
| Rear Leaf Spring Bushings Included | No |
| Sway Bar Bushings Included | Yes |
| Upper Trailing Arms Included | Yes |
| Lower Trailing Arms Included | Yes |
| Trailing Arm Mount Braces Included | Yes |
| Panhard Bar Included | No |
| Torque Arm Included | No |
| Upper Control Arms Included | Yes |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Control Arm Material | Chromoly |
| Control Arm Color | Black |
| Front Strut Tower Bar Included | No |
| K-Member Included | No |
| K-Member Support Brace Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | Yes |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| Center Link Included | No |
| Spindles Included | No |
| Inner Tie Rod Ends Included | No |
| Outer Tie Rod Ends Included | No |
| Mounting Hardware Included | Yes |
Vehicle Fitment
- 1975 Chevrolet Camaro
- 1976 Chevrolet Camaro
- 1977 Chevrolet Camaro
- 1978 Chevrolet Camaro
- 1979 Chevrolet Camaro
- 1980 Chevrolet Camaro
- 1981 Chevrolet Camaro
