Product Details
All Upper Tubular and Lower Boxed Trailing Arms for the 1973-1988 Buick Regal use polyurethane bushings on both ends, while upper adjustable and lower tubular Trailing Arms use a spherical ball or rod end assembly on the chassis end to eliminate bushing bind, allowing the suspension to move smoother for better control. This keeps the tires planted firmly on the ground for improved traction and a more predictable, better handling car. For a long-lasting finish, tubular and boxed Trailing Arms are powder-coated gloss black, while the adjustable arms are zinc plated and anodized. Boxed Trailing Arms are constructed from 0.120'' wall cold rolled steel tubing for maximum strength and flex elimination. These Trailing Arms have fluted, greasable polyurethane bushings, which are superior to the stock rubber bushings. Tubular Trailing Arms are constructed from 1-1/4'' diameter, 0.120'' wall steel tubing which offers increased strength over other designs, but also have the added advantage of lighter weight.

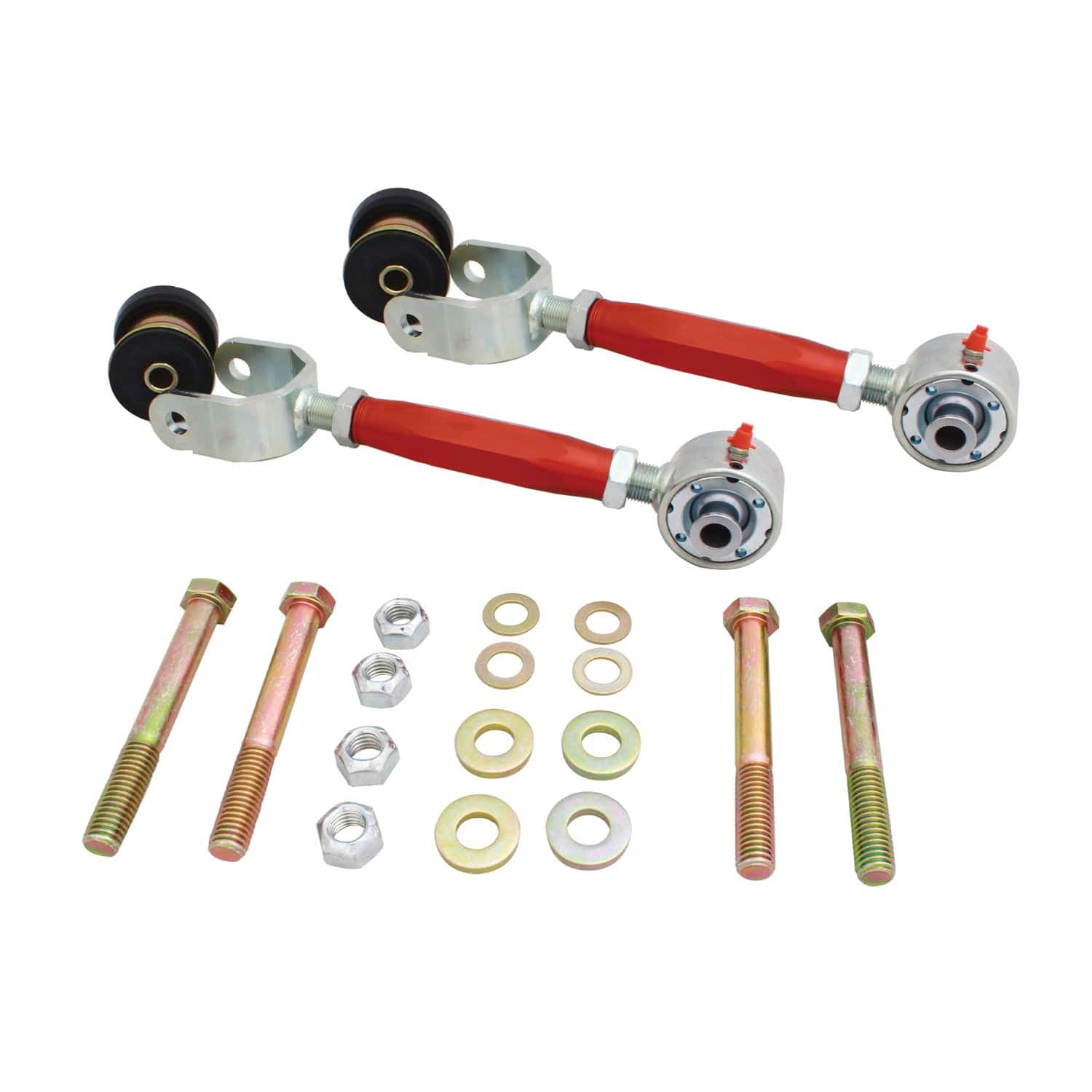

These Trailing Arms have fluted, greasable polyurethane bushings, which are superior to the stock rubber bushings. Heavy-Duty Adjustable Trailing Arms allow easy Rear Suspension adjustments for optimum handling and traction. Simply loosen the jam nuts and adjust the pinion angle without removing the arms from the vehicle. They replace soft OE differential bushings with polyurethane differential bushings, and they use a spherical ball or rod end assembly with UHMW polyethylene bushings on the chassis end to allow the Rear Suspension to move more freely and eliminate bushing bind. All parts sold in pairs.
Standard Features
- Direct fit options for many popular GM, Ford & Mopar's
- Adjustable arms offer easy wheelbase and pinion angle adjustment
- Easy, Bolt-In Installation
- Made in the USA
Specifications
| Part Number | 5247 |
| Part Name | Trailing Arm |
| UPC | 806990064530 |
| Vehicle | 1973-1988 Buick Regal |
| Control Arm Style | Tubular |
| Control Arm Material | Aluminum/Steel |
| Ball Joint Included | No |
| Bushings Included | Yes |
| Control Arm Color | Red |
| Adjustable | Yes |
| Hardware Included | No |
| Bushing Material | Polyurethane |
Vehicle Fitment
- 1973 Buick Regal
- 1974 Buick Regal
- 1975 Buick Regal
- 1976 Buick Regal
- 1977 Buick Regal
- 1978 Buick Regal
- 1979 Buick Regal
- 1980 Buick Regal
- 1981 Buick Regal
- 1982 Buick Regal
- 1983 Buick Regal
- 1984 Buick Regal
- 1985 Buick Regal
- 1986 Buick Regal
- 1987 Buick Regal
- 1988 Buick Regal
