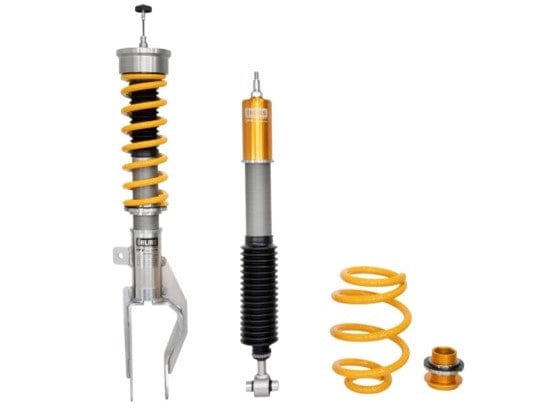

Introducing the latest addition to Ohlins' automotive range—the Öhlins Street Tuned system for Tesla Model 3 and Model Y. Developed utilizing our proven DFV technology monotube shocks with a sharp focus on comfort, the new Street Tuned suspension offers a refined ride quality without compromising vehicle handling and body control. DFV technology is utilized to reduce harshness on rough roads where basic, OE suspensions (and entry level coilovers) can feel coarse and low on grip.
Adjustable ride height allows exact desired stance and look every customer can custom tailor to their preferences. The dampers are individually adjustable through a wide range of 20 defined clicks for precise tuning ranging from comfort focused to improved handling over OE. At the heart of this system is a monotube damper architecture with DFV technology, designed for heightened responsiveness. This is complemented by strengthened large bore shocks, enhancing the system's resilience against wear and tear, together with lightweight aluminum body, reducing the overall unsprung weight on the vehicle.
No matter your destination, the Öhlins Street Tuned system delivers a smoother ride with superior handling and control, ensuring a more comfortable journey on the road ahead.
If you prefer a sportier option the Road & Track system is available, with an updated specification which includes additional suspension travel for maintained performance when loaded with cargo and additional occupants.
Features
- Ride-height adjustable
- 20-click damping adjustable
- Matched compression and rebound hydrodynamics
- Consistent high-tolerance reliability
- Corrosion salt spray tested (ISO 9227)
- Fully rebuildable
- Includes all hardware and instructions for installation
- 2 year limited warranty
- DFV technology (Dual Flow Valve)
- Set includes springs
Features Front
- Conventional shock absorber
- Single bleed adjuster
- Spring preload adjuster
- Height adjustable (approx. -5mm to -30mm lower than standard)
- Coil springs (rate 110 N/mm)
- Use with original top mounts
Features Rear
- Conventional shock absorber
- Single bleed adjuster
- Separate spring preload adjuster
- Height adjustable (approx. -5mm to -30mm lower than standard)
- Coil springs (rate 120 N/mm)
- Use with original top mounts
Coilover Kit Includes
- Coil over kit includes springs and mounting parts
- C-Spanner (for spring preload adjustment)
- Owners manual and mounting instruction
- Sticker set
Spring Rates
-
Front: 70 N/mm // 400 lbs/in. // 7 k/mm
-
Rear: 80 N/mm // 457 lbs/in. // 8 k/mm
