Product Details

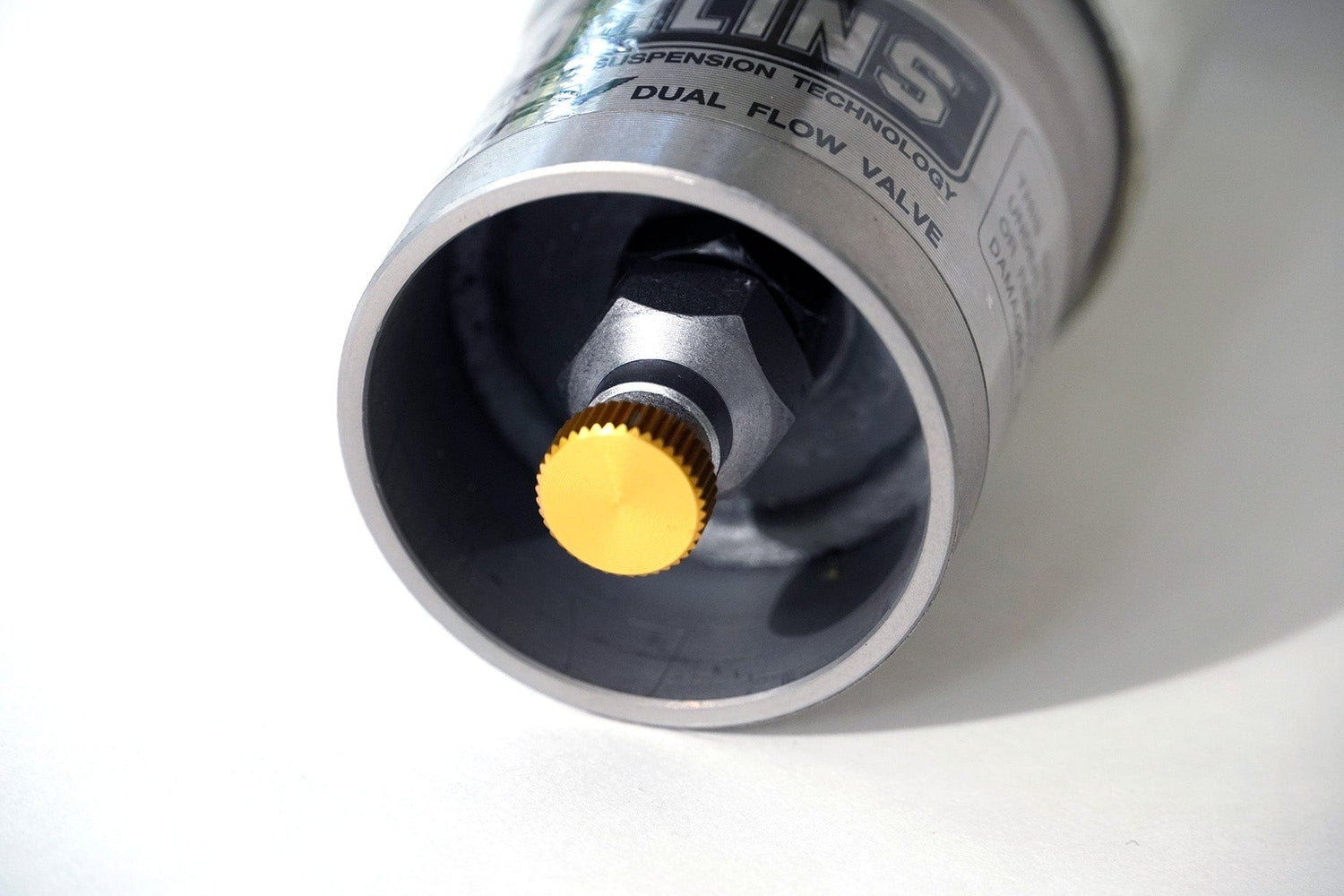

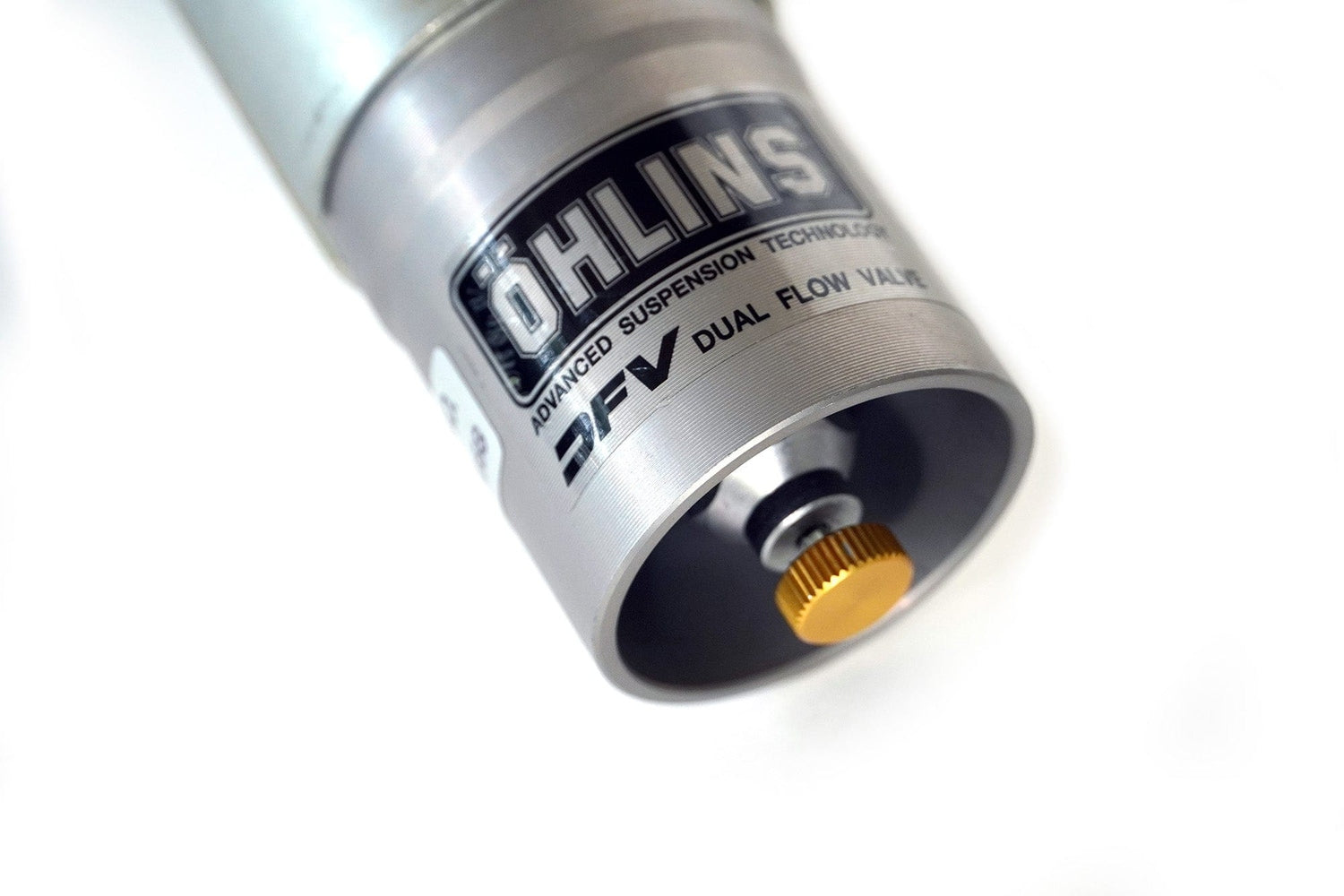

The Ohlins Road & Track 2022-2026 Subaru BR-Z (ZD8) coilovers give your vehicle a true racing experience without losing comfort when commuting to work. Our unique Dual Flow Valve (DFV) technology allows you to quickly change the stiffness of the shock absorber. When arriving to the racetrack, just turn the golden knob clockwise on the damper to set it in race mode this action changes all four areas in the damper; low and high speed compression and rebound damping.
With Ohlins Road & Track Subaru BRZ coilovers you will experience blistering response times, improved bump absorption and a massive amount of grip to increase the safety when driving your car on the limit. The car will be easier to balance on the edge of what the tires can handle before losing grip. You will be much quicker on track. The DFV suspension prevents you from losing the racing line when hitting bumps or curbs. The DFV components within react quickly and keeps you in control of the car and in contact with the track. When driving to and from the track, just set the dampers in road mode for a more relaxed and comfortable drive, still with more grip and quicker response time than ever before.
Features
- Ride-height adjustable
- Matched compression and rebound hydrodynamics
- Consistent high-tolerance reliability
- Fully rebuildable
- Includes all hardware and instructions for installation
- DFV technology (Dual Flow Valve)
- Corrosion salt spray tested (ISO 9227)
- 2 year limited warranty
- Includes springs
Front Features
- McPherson strut, upside down
- Compression and rebound damping with one adjuster

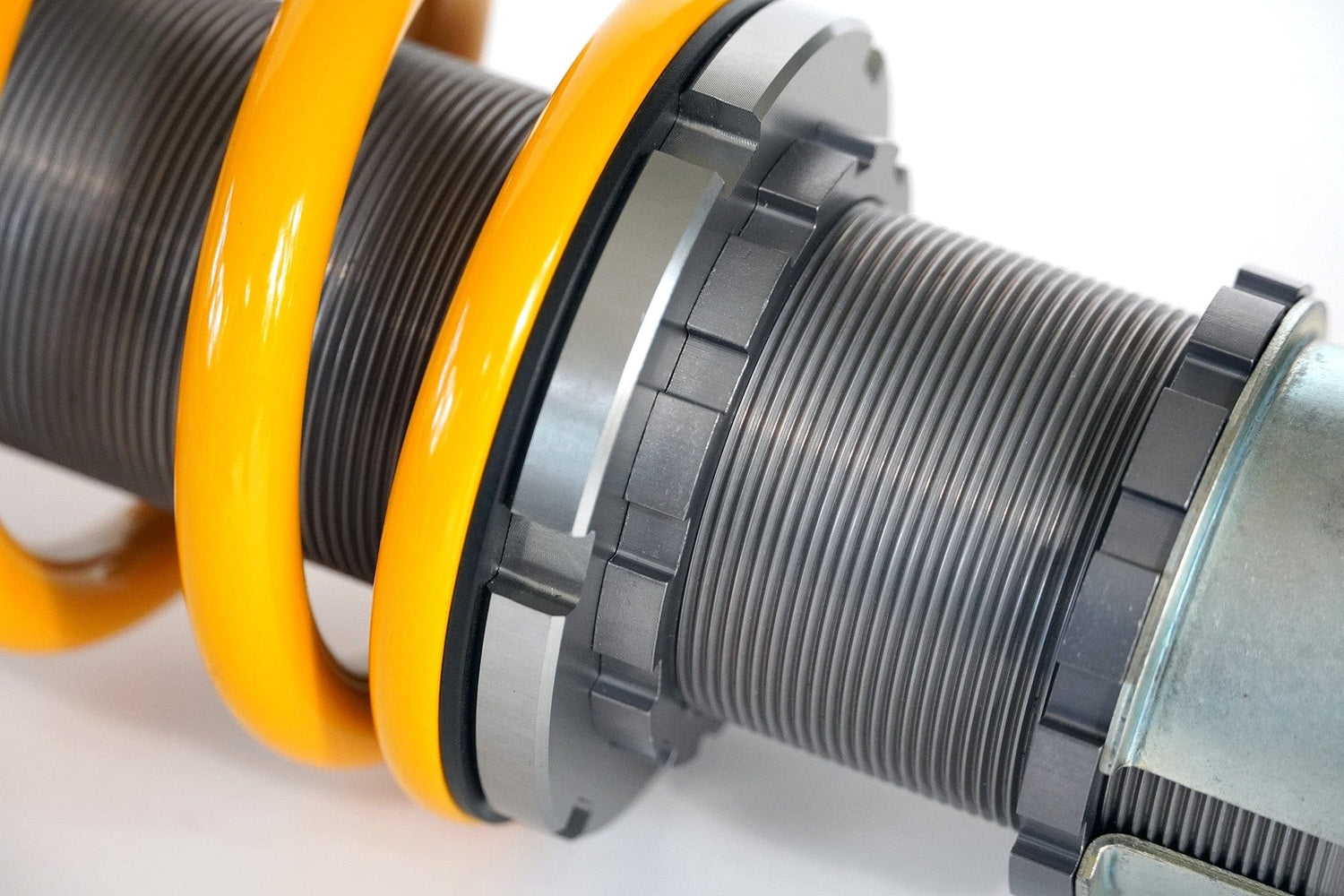

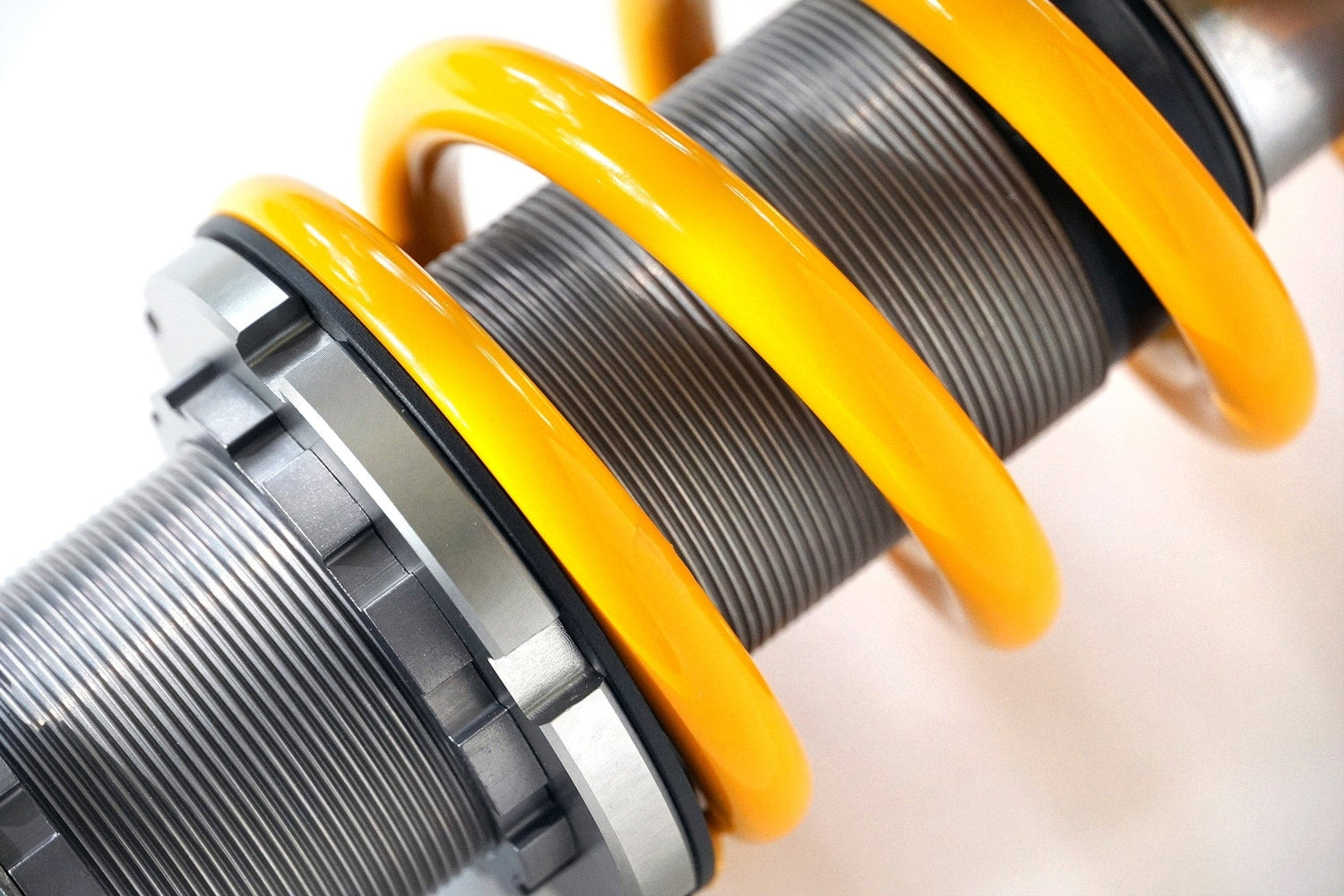

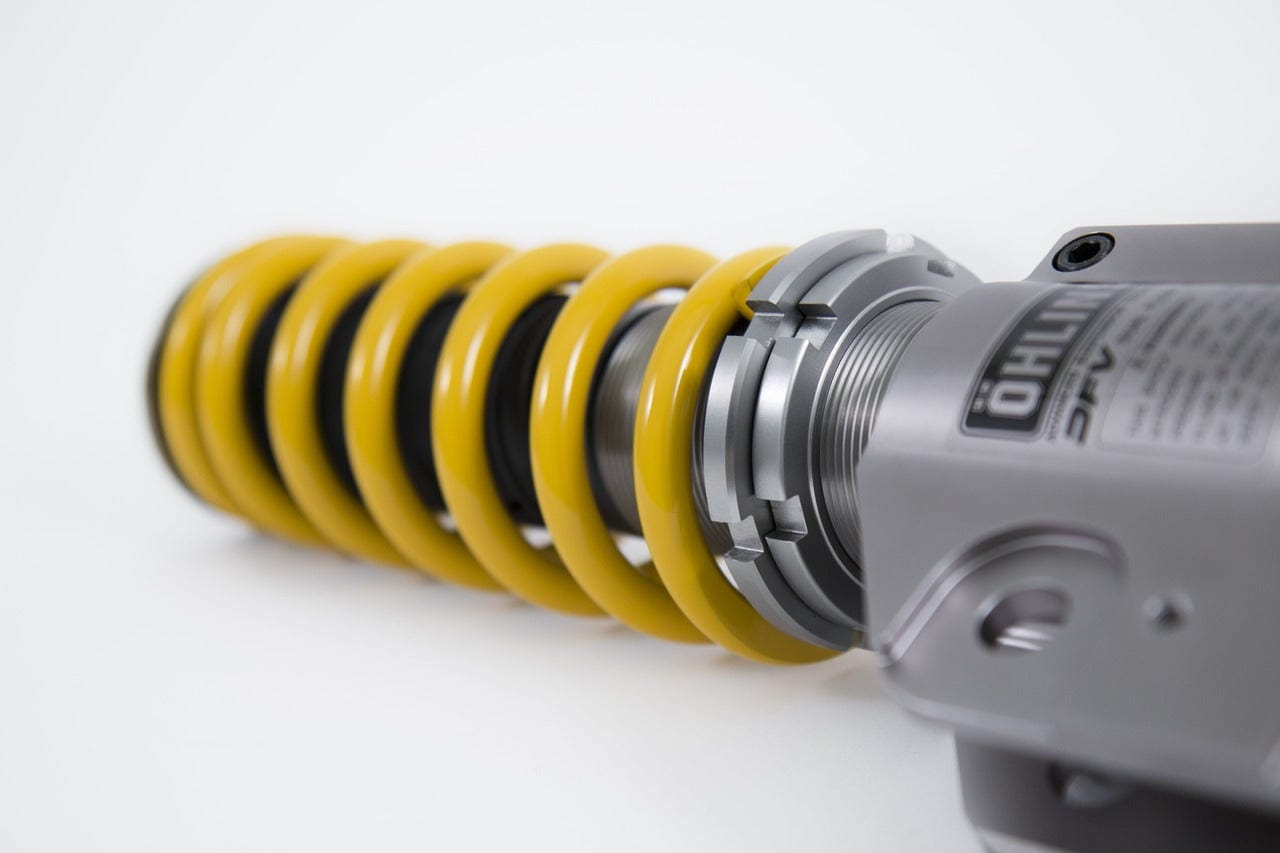

- Spring preload adjuster
- Approx. 0 - 20 mm lower than standard with recommended setup

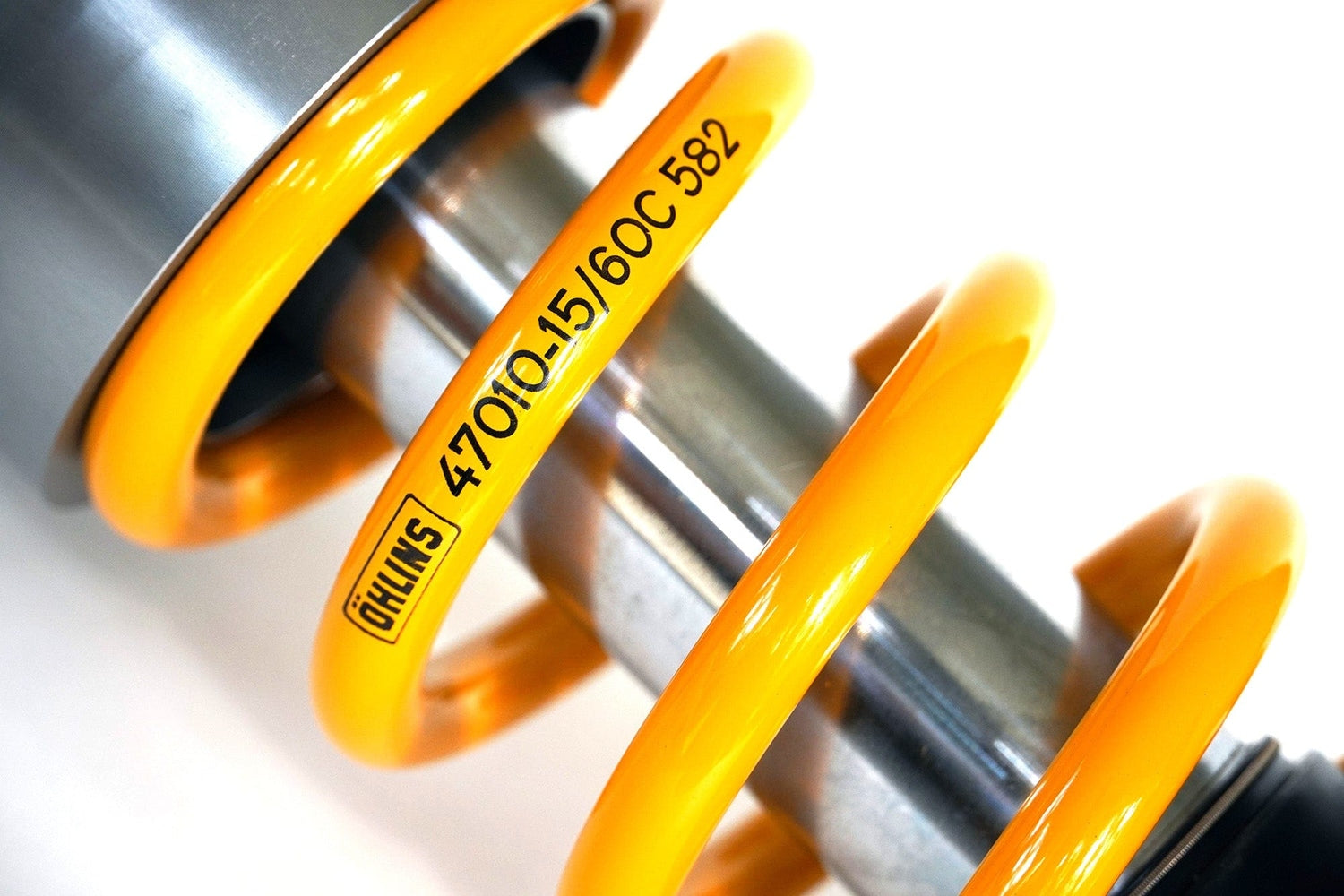

- Spring rate: 60 N/mm
- Dust covers
- Use with original top mounts
Rear Features

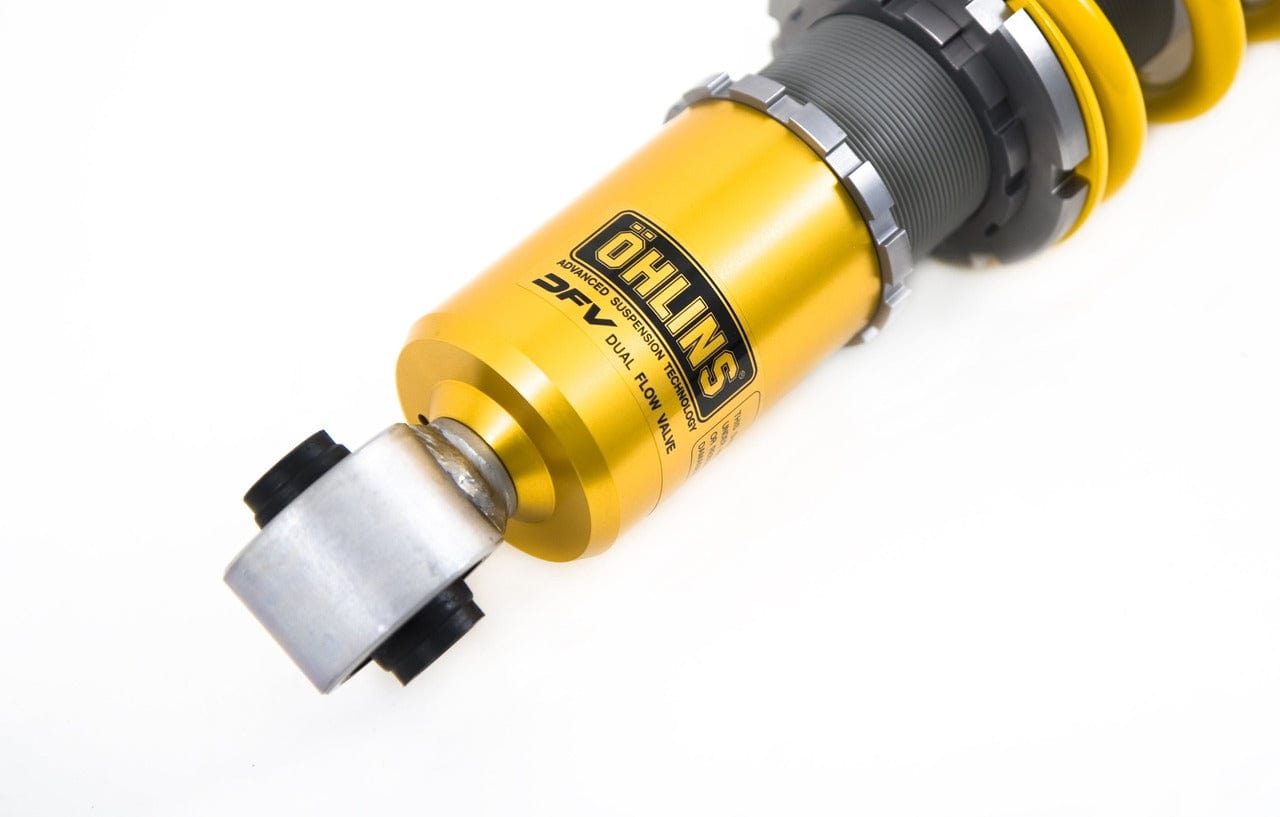

- Conventional Shock Absorber
- Compression and rebound damping with one adjuster
- Spring preload adjuster
- Approx. 0 - 20 mm lower than standard with recommended setup
- Spring rate: 60 N/mm
- Dust covers
- Use with original top mounts
What's Included

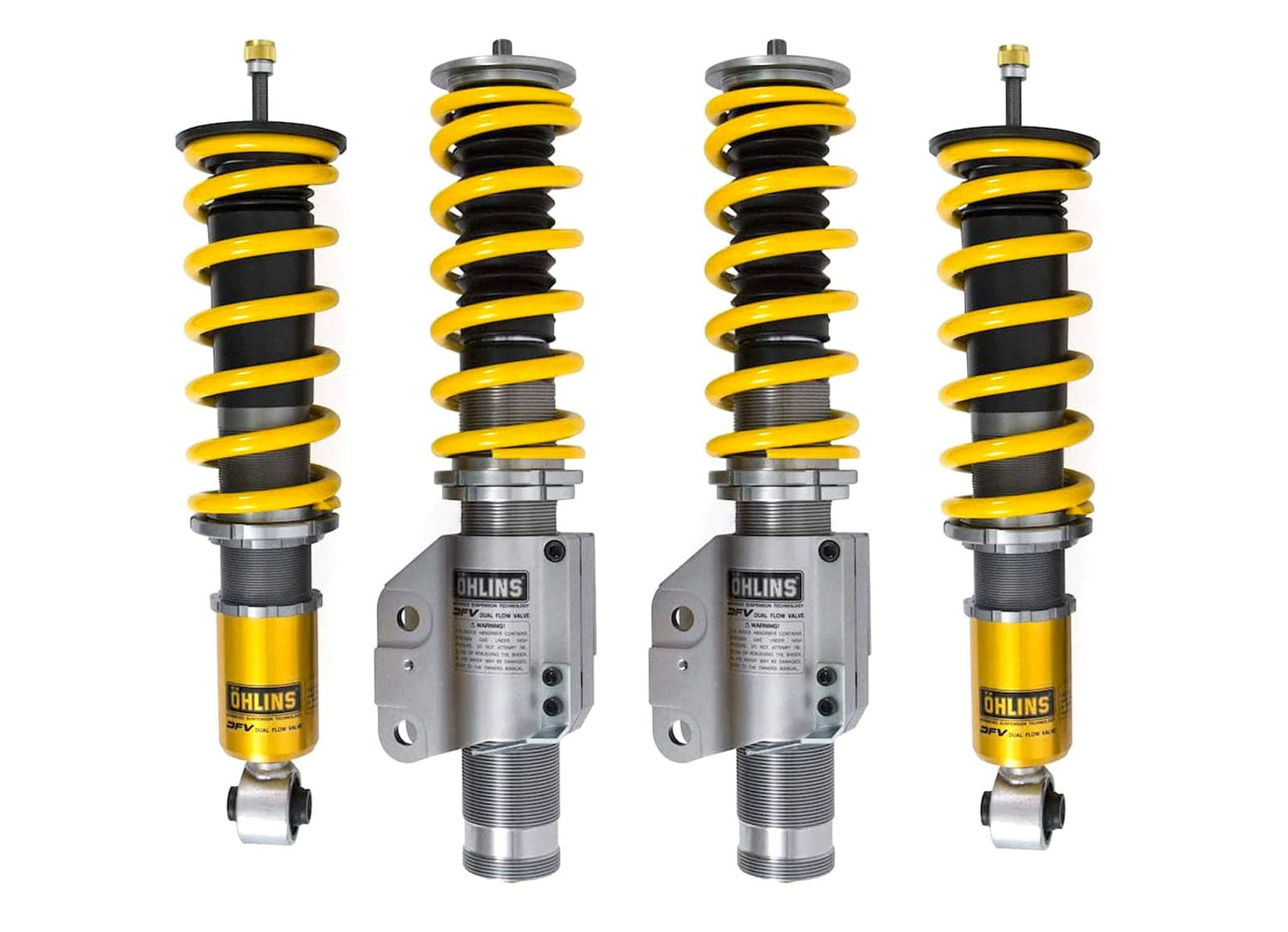

- Subaru BRZ coilover kit includes springs
- C-Spanner (for spring preload adjustment)
- Owners manual and mounting instructions
- Sticker set

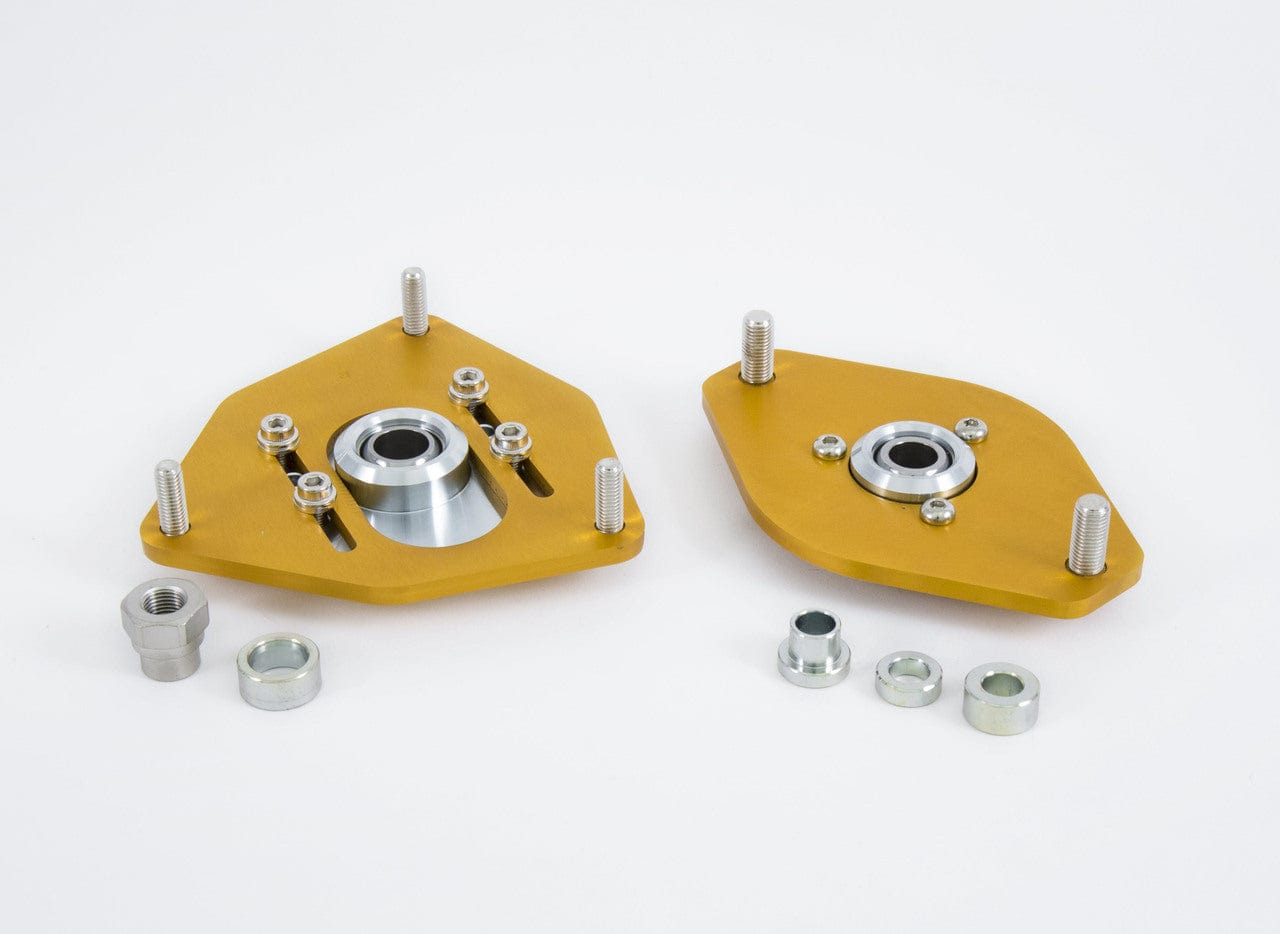

Optional Add-Ons
Documentation
- Installation Instructions (Download PDF)
- Owners Manual (Download PDF)
Specifications
| Part Number | SUS MP21S2 |
| Part Name | Road & Track Coilovers |
| Vehicle | 2022-2026 Subaru BR-Z |
| Chassis Code | ZD8 |
| Technology | Dual Flow Valve (DFV) |
| Ride-Height Adjustable | Yes |
| Adjustment Type | 1-Way |
| Spring Rates - Front | 60 N/mm // 343 lbs/in. // 6 Kg/mm |
| Spring Rates - Rear | 60 N/mm // 343 lbs/in. // 6 Kg/mm |
| Target Height Reduction - Front | 20mm |
| Target Height Reduction - Rear | 20mm |
| Top Mounts - Front | OEM (Not Included) |
| Top Mounts - Rear | OEM (Not Included) |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | Divorced |
| Notes |
|
Vehicle Fitment
- 2022 Subaru BR-Z (ZD8)
- 2023 Subaru BR-Z (ZD8)
- 2024 Subaru BR-Z (ZD8)
- 2025 Subaru BR-Z (ZD8)
- 2026 Subaru BR-Z (ZD8)
Additional Fitment Information
- Top mounts not included
- Aftermarket front sway bar links with large diameter turnbuckles will make contact with strut and damage sway bar tab over time. Only use links with small diameter turnbuckles.
