*Product images are generic and do not always represent the actual SKU.

Ohlins

SKU: MAS Mi10S1

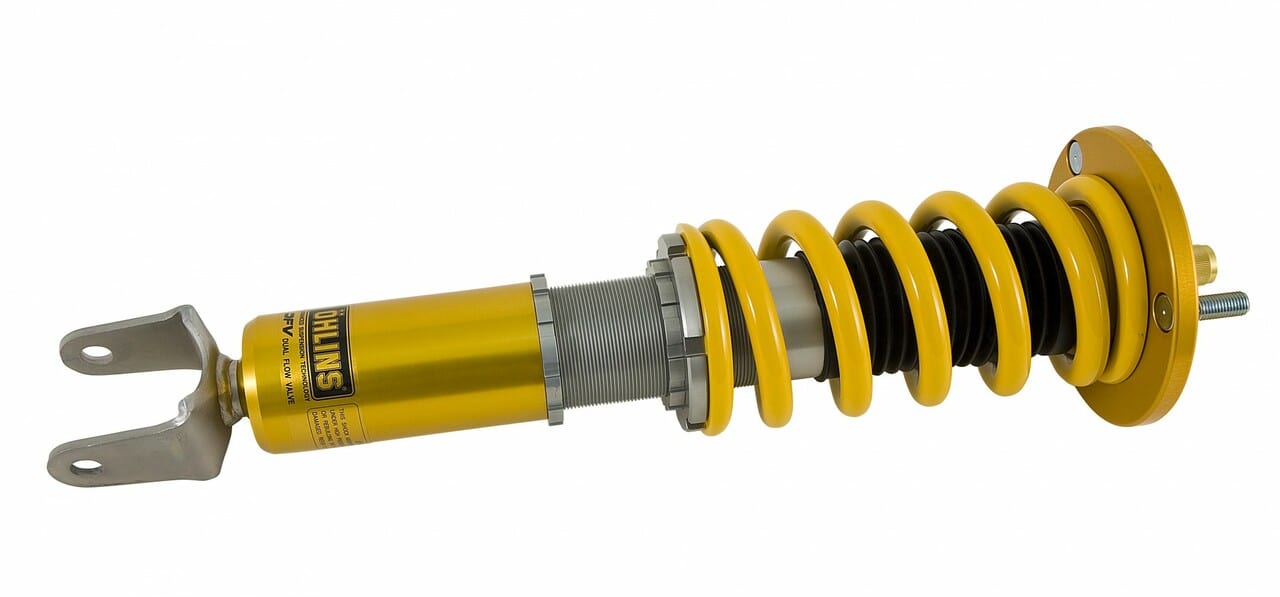

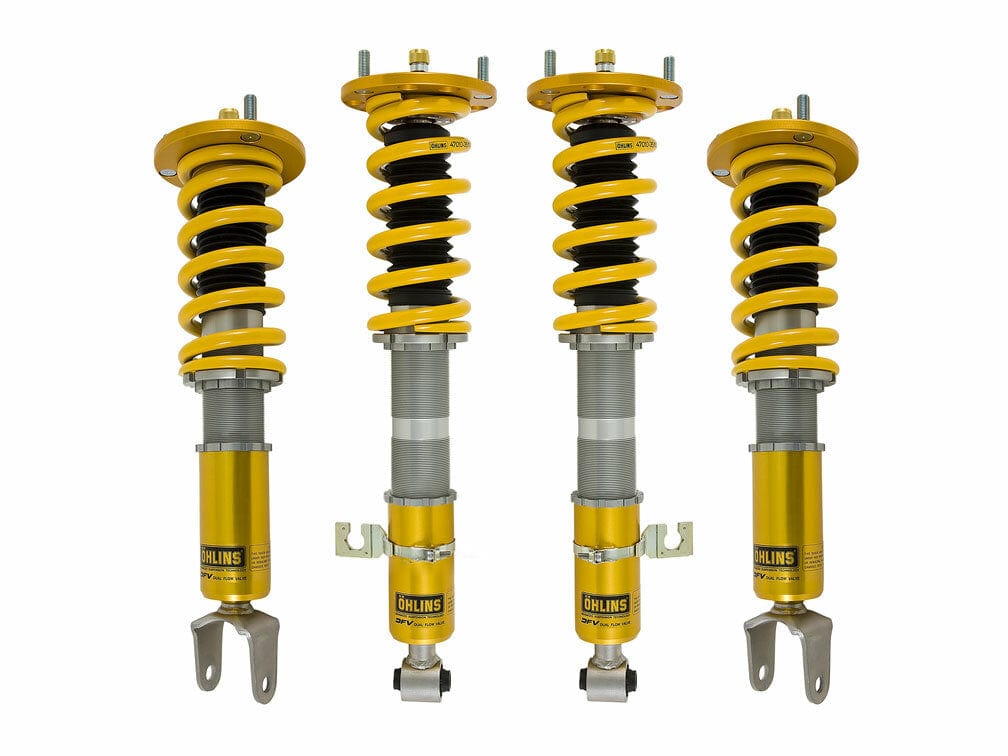

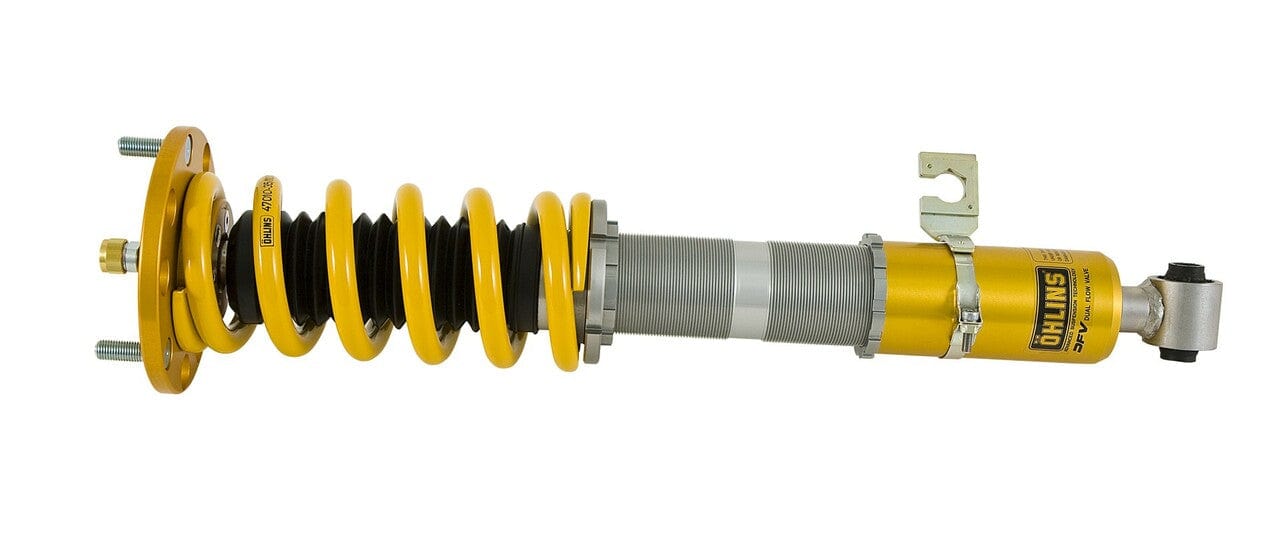

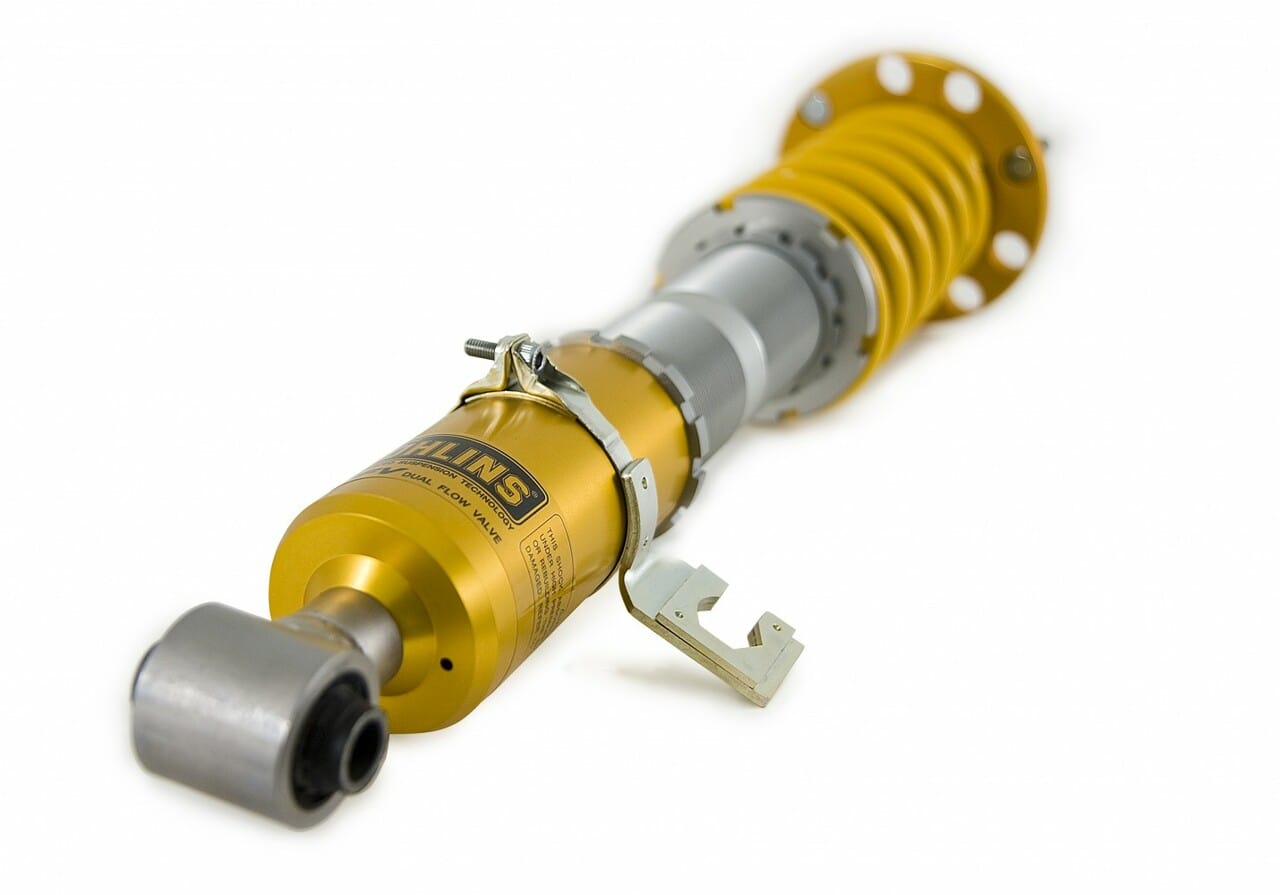

Ohlins Road & Track Coilovers for 1992-1994 Mazda RX-7 (FD)

$ 2,390.00
In Stock (10 Units)

Check if this fits your vehicle

Select a Vehicle

Fits Your Vehicle

Change Vehicle

Does not fit your vehicle

Change Vehicle
Free Shipping
Orders $49+ ship for free in the USA.
Authorized Retailer
100% Authorized Direct Retailer
Low-Price Guarantee
Listed at the lowest price guaranteed.
0% Financing
Easy payment plans with Affirm and Shop Pay.

The Ohlins Road & Track suspension gives your 1992-1994 Mazda RX-7 a true racing experience without losing comfort when commuting to work. Our unique Dual Flow Valve (DFV) technology allows you to quickly change the stiffness of the shock absorber. When arriving to the racetrack, just turn the golden knob clockwise on the damper to set it in race mode this action changes all four areas in the damper; low and high speed compression and rebound damping.

With Ohlins Road & Track coilovers you will experience a car with blistering response times, improved bump absorption and a massive amount of grip to increase the safety when driving your car on the limit. The car will be easier to balance on the edge of what the tires can handle before losing grip. You will be much quicker on track. The DFV suspension prevents you from losing the racing line when hitting bumps or curbs. The DFV components within react quickly and keeps you in control of the car and in contact with the track. When driving to and from the track, just set the dampers in road mode for a more relaxed and comfortable drive, still with more grip and quicker response time than ever before.

Features

  • Ride-height adjustable
  • Matched compression and rebound hydrodynamics
  • Consistent high-tolerance reliability
  • Fully rebuildable
  • Includes all hardware and instructions for installation
  • DFV technology (Dual Flow Valve)
  • Corrosion salt spray tested (ISO 9227)
  • 2 year limited warranty
  • Set includes springs

Features Front

  • Conventional Shock Absorber
  • Compression and rebound damping with one adjuster
  • Spring preload adjuster
  • Approx. 10 - 40 mm lower than standard with recommended setup
  • Spring rate 110 N/mm
  • Dust covers

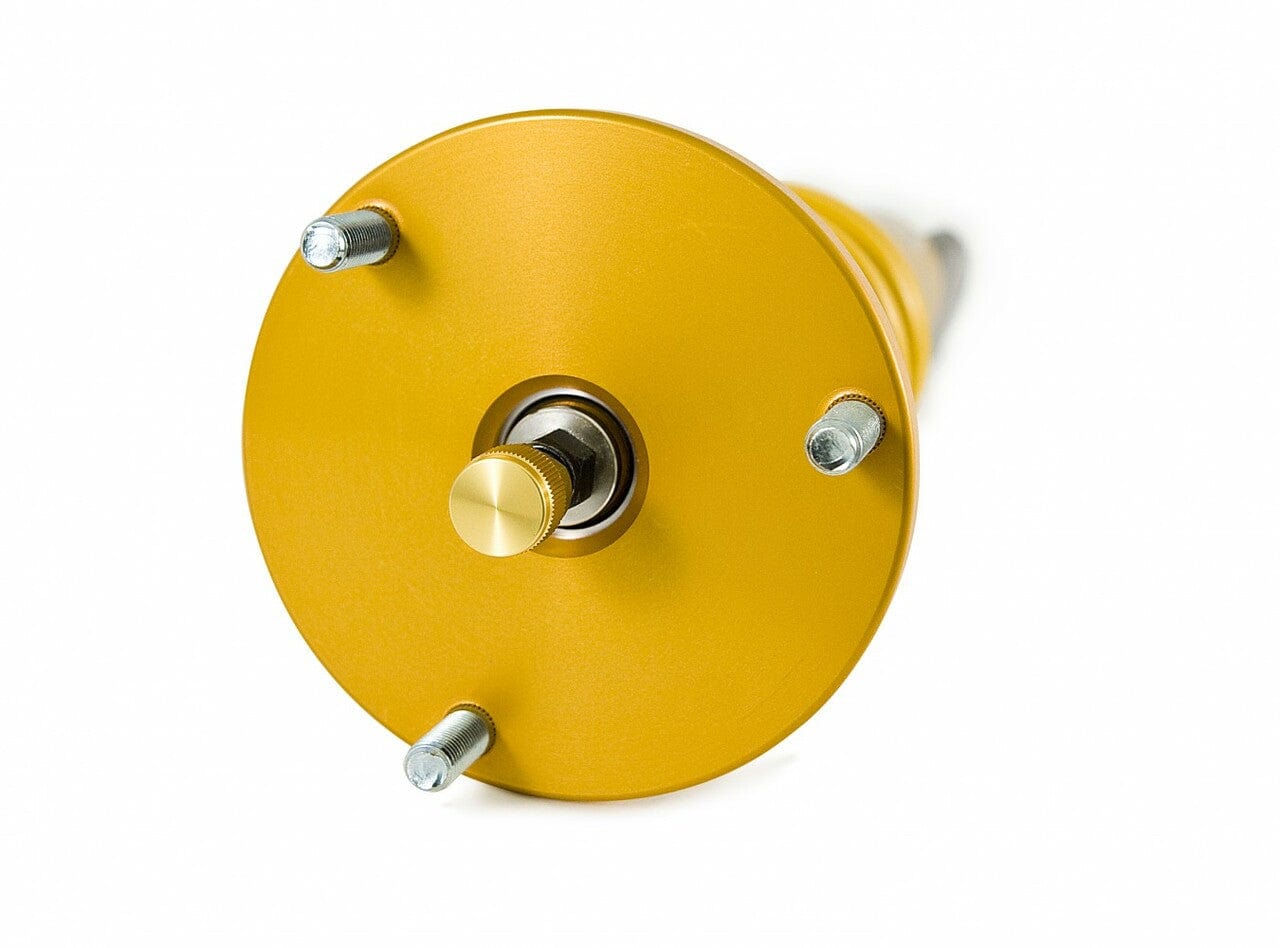

  • Aluminum top mounts (not adjustable)

Features Rear

  • Conventional Shock Absorber
  • Compression and rebound damping with one adjuster
  • Spring preload adjuster
  • Approx. 5 - 35 mm lower than standard with recommended setup
  • Spring rate 110 N/mm
  • Dust covers
  • Aluminum top mounts (not adjustable)

Kit Includes

  • Coil over kit incl. springs and mounting parts
  • C-Spanner (for spring preload adjustment)
  • Owners manual and mounting instruction
  • Sticker set

Spring Rates

  • Front: 110 N/mm // 630 lbs/in. // 11 k/mm
  • Rear: 110 N/mm // 630 lbs/in. // 11 k/mm

Documentation

  • 1992 Mazda RX-7 (FD)
  • 1993 Mazda RX-7 (FD)
  • 1994 Mazda RX-7 (FD)

Additional Fitment Information

  • Part Number: MAS Mi10S1
