Product Details

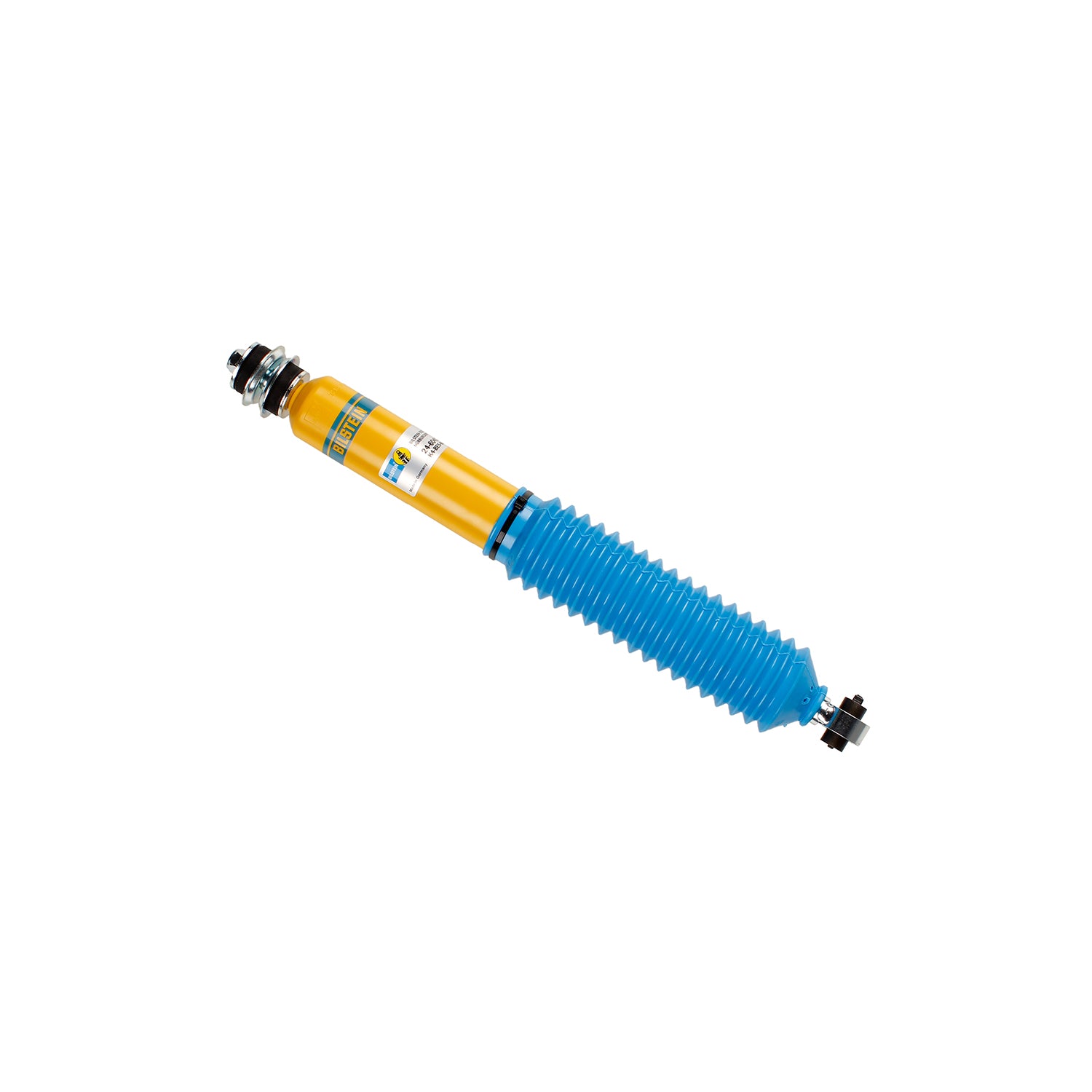

Bilstein Motorsports Dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports Dampers are ideal for racers requiring a direct fit solution with true race-proven performance.
Standard Features
- Monotube design ensures consistent, fade-free performance in all conditions
- Larger working piston with deflective disc valving
- Available in steel and aluminum bodies
Specifications
| Part Number | 24-604277 |
| Part Name | Shock Absorber |
| UPC | 651860512778 |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Body Material | Steel |
| Boot Included | Blue Bellows |
| Collapsed Length | 11.44 in. |
| Collapsed Length | 290.5mm |
| Compression @ 0.52m/s | 1200 |
| Extended Length | 17.83 in. |
| Extended Length | 453mm |
| Finish | Yellow Paint |
| Internal Design | Monotube |
| Lower Mount Type | Eye 10mm |
| Piston Diameter | 46mm |
| Piston Type | Linear |
| Vehicle Placement | Rear |
| Rebound @ 0.52m/s | 1800 |
| Segment | Motorsports |
| Series | Motorsports |
| Shaft Diameter | 11mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 6.4 in. |
| Stroke/Travel Length | 162.6mm |
| Upper Mount Type | Stem |
