Product Details

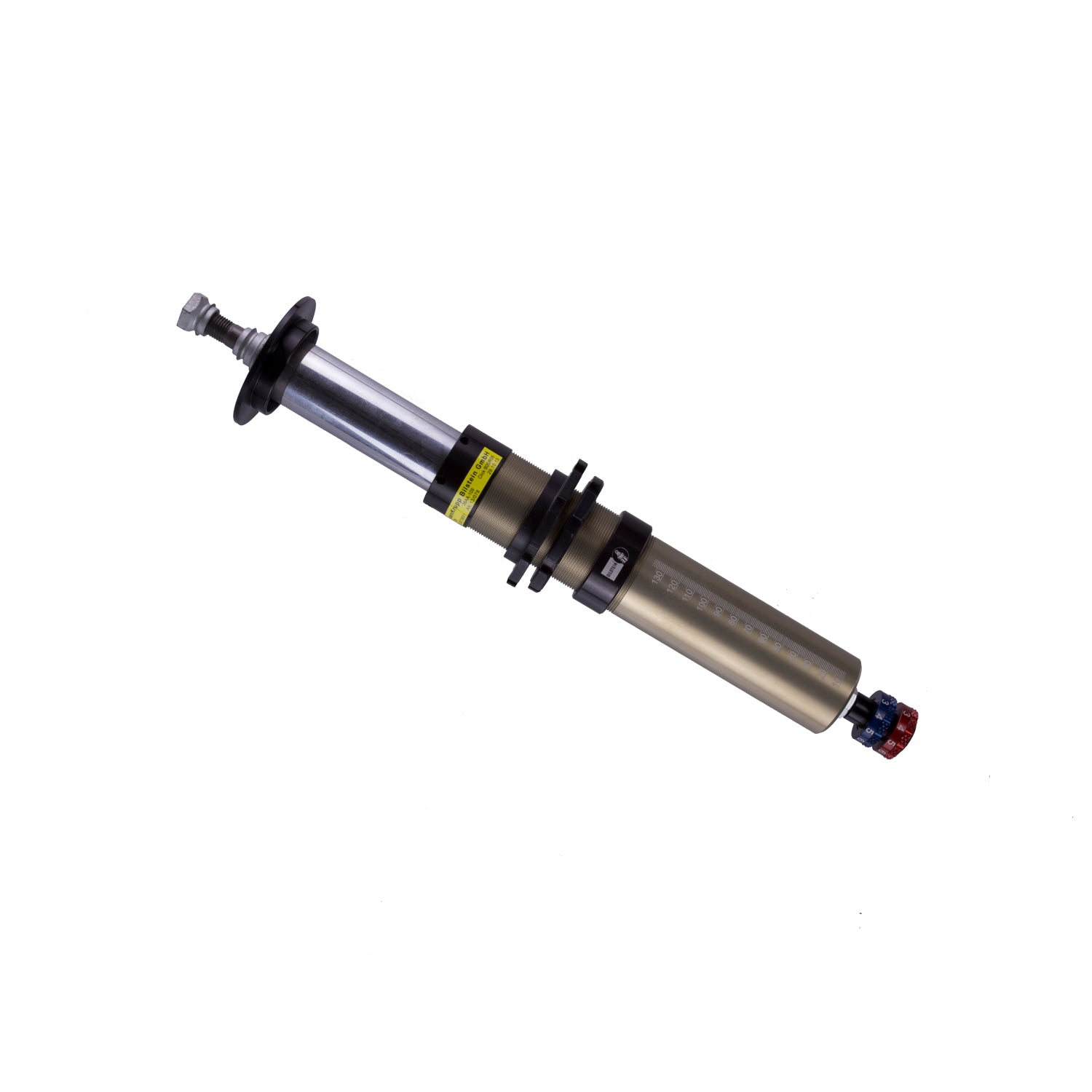

Bilstein MDS (Modular Damping System) Dampers are a premium motorsports product designed for professional road racing. The 2-way independent compression and rebound adjustment system provides 100 different setting variations for the ultimate in handling performance. The Easy Clip System (ECS) spring retainer system allows for rapid spring changes for easy at the track suspension tuning. MDS Dampers are ideal for full-race car applications that demand exceptional versatility and fine tuning for track conditions. Bilstein MDS Dampers provide proven performance and have taken many race cars to victory at races such as the 24 Hours of Le Mans and the 24 Hours of Nürburgring.
Standard Features
- 2-way independent rebound and compression adjustment system
- In-line damping adjustment requires no external reservoir
- Easy Clip System (ECS) spring retainer maintains position in zero preload spring applications and allows rapid changes
Specifications
| Part Number | K4-VM3-95106M0 |
| Part Name | Strut Assembly |
| UPC | 651860686110 |
| Adjustable Damping | Double Adjustable - Compression and Rebound |
| Body Design | Threaded Body (Coilover) |
| Body Material | Aluminum |
| Boot Included | No |
| Collapsed Length | 13.51 in. |
| Collapsed Length | 343.2mm |
| Compression @ 0.52m/s | Adjustable |
| Extended Length | 15.52 in. |
| Extended Length | 394.2mm |
| Finish | Clear Anodized |
| Internal Design | Monotube |
| Lower Mount Type | Housing |
| Piston Diameter | 36mm |
| Piston Type | Linear |
| Vehicle Placement | Front |
| Rebound @ 0.52m/s | Adjustable |
| Segment | Motorsports |
| Series | MDS |
| Shaft Diameter | 14mm |
| Spring Seat Included | Yes |
| Stroke/Travel Length | 2.01 in. |
| Stroke/Travel Length | 51.1mm |
| Upper Mount Type | Stem |
