Product Details

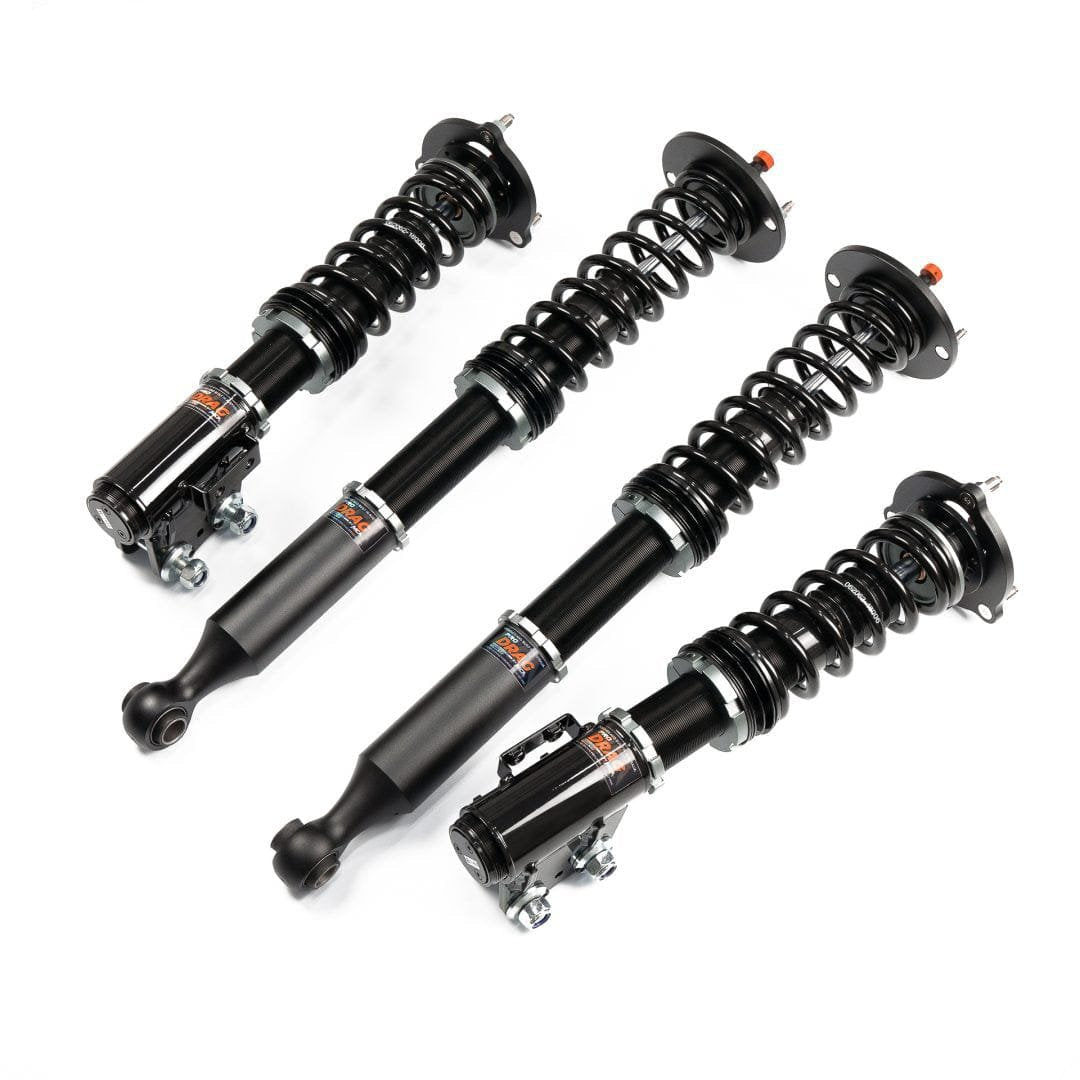

Whilst Drag Racing is not a motorsport that MCA Suspension is well known for, they have actually had a lot of success with top-level teams running in the 6s. MCA decided to take this success and experience and use it to develop drag racing-specific products for a wider range of vehicles. This resulted in the MCA Suspension Pro Drag Coilovers for the 1992-2000 Lexus SC400 (JZZ30).
Designed specifically for Drag Radials used on prepped track surfaces, thanks to their latest Fusion V3.0 Valving, we’ve managed to design a product versatile enough to also be used on unprepared surfaces as well as Roll Racing events.
Features
- Designed, Developed, Assembled & Fully Supported in Australia.
- 3 Year Transferrable, Industry Leading Warranty program.
- Can be Repaired, Reconditioned, Revalved and Resprung.
- MCA Proprietary Fusion Valving Technology V3.0 Pre-selected valving and spring package.
- 12 Clicks of Hard/Soft Damper Adjuster (Bump & Rebound together).
- Camber Adjustment via top mount (check vehicle-specific specs for more info).
- Camber Washer Bottom Mounts(check vehicle-specific specs for more info).
- Damper Adjuster Extenders (where possible, see additional information).
- Wheel travel range adjustment via the bottom mount (pre-set by MCA).
- Height adjustment via spring seat position (base height adjustment is flawed).
- Suggested Height Range: between factory height and 20mm tire gap (depends on vehicle specifics).
- Reinforced double-gusseted lower mounts (where applicable, see additional information).
- Helper Springs to keep the main spring captive at all times.
- Latest Rugged Spec internal sealing designs and components.
- Superior Monotube design.
What's Included
- Complete Suspension System
- Height Adjustment Tools
- Setup Sheet
- Information Sheets
- MCA Stickers
- MCA Lanyard
Specifications
| Part Number | TOYSORZ30-PDRAG |
| Part Name | MCA Pro Drag Coilovers |
| Vehicle | 1992-2000 Lexus SC400 |
| Chassis Code | JZZ30 |
| Adjustment Type | 1-Way |
| Damping Adjustable | Yes |
| Height Adjustable | Yes |
| Front Spring Rates (Default) | 23 kg/mm |
| Rear Spring Rates (Default) | 10 kg/mm |
| Front | Coilover design. |
| Rear | Coilover design, 20cm damper adjuster extenders. |
Vehicle Fitment
- 1992 Lexus SC400 (JZZ30)
- 1993 Lexus SC400 (JZZ30)
- 1994 Lexus SC400 (JZZ30)
- 1995 Lexus SC400 (JZZ30)
- 1996 Lexus SC400 (JZZ30)
- 1997 Lexus SC400 (JZZ30)
- 1998 Lexus SC400 (JZZ30)
- 1999 Lexus SC400 (JZZ30)
- 2000 Lexus SC400 (JZZ30)
