KW Clubsport 2-Way Coilovers - 2014-2018 Mercedes-Benz CLA AWD SKU 35225867
KW Clubsport 2-Way Coilovers - 2014-2018 Mercedes-Benz CLA AWD SKU 35225867

*Product images may not represent the actual SKU.

KW Suspension

SKU: 35225867

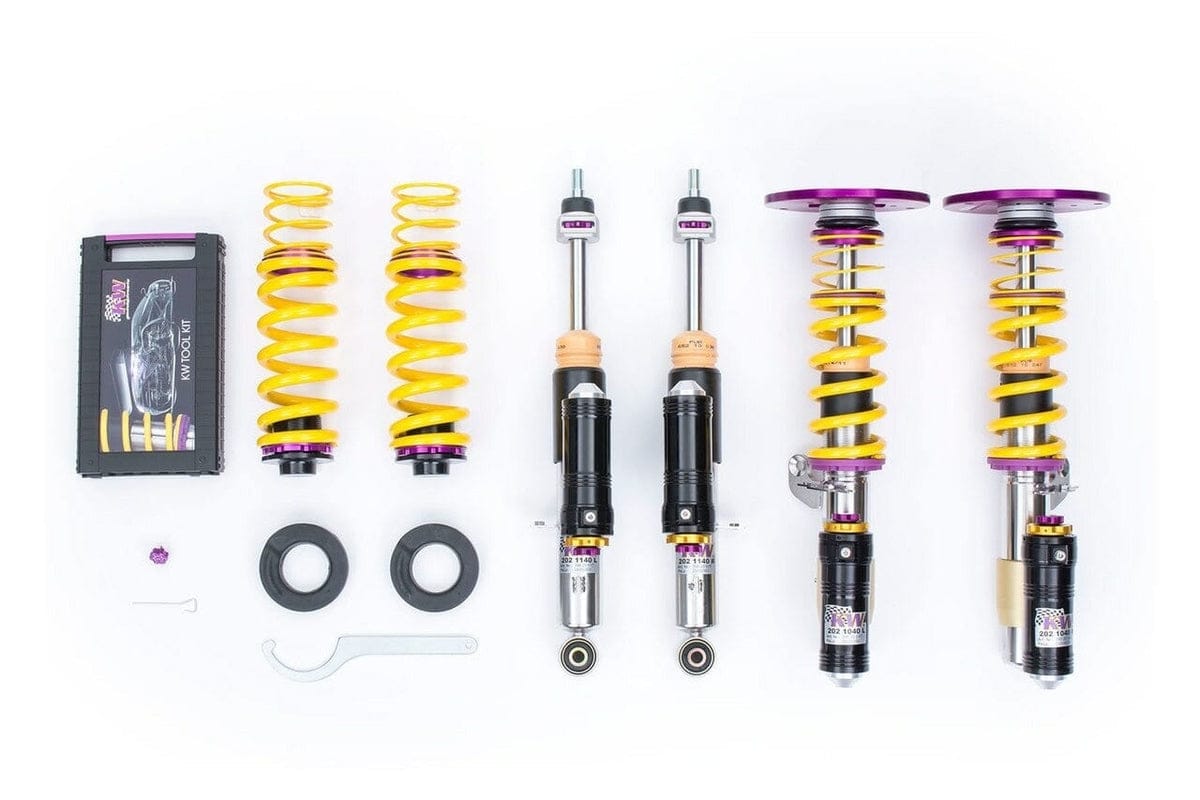

KW Clubsport 2-Way Coilover Kit - 2014-2018 Mercedes-Benz CLA

$3,774.00
Out of Stock
Fitment confirmation is based on the vehicle's year, make, and model only. Please verify fitment by reviewing full product description which may include notes and more specific information.

Check if this fits your vehicle

Select a Vehicle
Fitment confirmation is based on the vehicle's year, make, and model only. Please verify fitment by reviewing full product description which may include notes and more specific information.

Fits your vehicle

Change Vehicle
Fitment confirmation is based on the vehicle's year, make, and model only. Please verify fitment by reviewing full product description which may include notes and more specific information.

Does not fit your vehicle

Change Vehicle
Authorized Retailer
100% Authorized Retailer.
Free Shipping
Orders $250+ ship for free.*
Best Price Guarantee
Lowest price on all products.
0% APR Financing
Buy now, pay later.

KW Clubsport 2-Way Coilover Kit for the 2014-2018 Mercedes-Benz CLA AWD were developed for customers, who demand a better handling car when participating in track day events, but also require an official road approval to use their car every day. The setup was specifically designed for the Nordschleife using track day tires. By using the optional available adjustable top mounts, the suspension geometry can be adjusted to the requirements of tires and the intended use. The mentioned adjustment options combined with the independently adjustable rebound and compression Dampening technology allow individual setup adjustments according to the vehicle load, tire characteristics and different track conditions. The W Clubsport 2 Way Coilover Kit meets every demand regarding a coilover for the usage on the road and the race track. KW Clubsport Coilovers guarantees excellent handling, best performance, highest agility and fantastic lap times.

Standard Features

  • KW suspensions clubsport coilovers are hand built by our expert team and given a uniquely individual serial number at our headquarters in Fichtenberg, Germany
  • Each damper is dyno tested to ensure accuracy and preset to our recommended setting before being release for delivery.
  • Solid aluminum unibal top mounts improve steering feedback by minimizing deflection while providing camber adjustability when applicable.
  • Road legal motorsports technology featuring independent rebound and compression adjustability with application specific track focused linear race springs and matched damper tuning.
  • TVR-A (Twin Valve Rebound - Adjustable) technology - allows oil to flow passed an adjustable, conical low-speed bypass during slow damper speeds, while at higher speed, the main rebound stage valve opens for maximum fluid displacement.
  • TVC-A (Twin Valve Compression - Adjustable) technology - patented compression valve allows fine tuning of low speed. During sudden high piston speeds, the low speed needle and main valve blow-off feature open to maximize flow.
  • Composite spring perch made from wear-resistant, friction-optimized polyamide composite encompassing a stainless-steel insert. The polyamide composite prevents oxidation while the stainless-steel insert maximizes strength.
  • Inox-Line Stainless Steel - Truly Permanent Corrosion Resistance. Inox-Line coatings will not wear off while adjusting the suspension making KW coilover struts 100 percent corrosion resistant with an unlimited lifespan.
Part Number 35225867
Part Name Clubsport 2-Way Coilover Kit
UPC 847691034521
Vehicle 2014-2018 Mercedes-Benz CLA AWD
Front Lowering Rate 0.8 - 1.5 in.
Rear Lowering Rate 0.6 - 1.2 in.
Height Adjustable Yes
Damping Adjustable Yes
Adjustment Type 2-Way
Front Spring Rates 7.14 Kg/mm (400 lbs/in)
Rear Spring Rates 10.18 Kg/mm (570 lbs/in)
Notes Valving is adjusted by adjustment knobs, rebound is only adjustable if the top of the piston rod is accessible. This will depend on the design of the vehicle.
  • 2014 Mercedes-Benz CLA AWD
  • 2015 Mercedes-Benz CLA AWD
  • 2016 Mercedes-Benz CLA AWD
  • 2017 Mercedes-Benz CLA AWD
  • 2018 Mercedes-Benz CLA AWD

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.
