Product Details

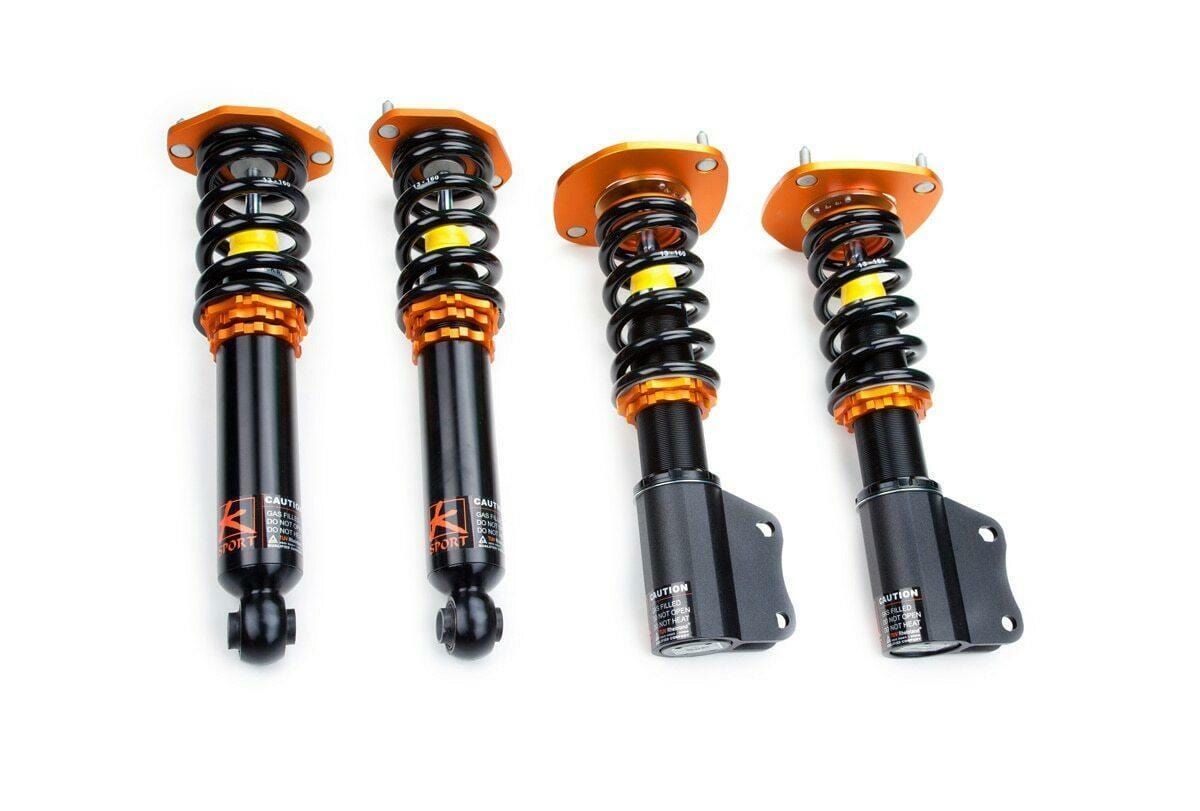

The KSport Version RR Coilover Kit is built for 2008-2014 Mercedes-Benz C-Class owners who want a track-ready damper without jumping to a remote reservoir setup. It features a monotube design, high-pressure nitrogen charge, and damping curves tuned for grip — so your C-Class stays flat through transitions, turns in harder, and uses its tires instead of fighting them.

Full ride-height adjustment and single-knob damping control give you a usable range from street stance to weekend warrior. If the Kontrol Pro feels a touch soft and you're not ready to step up to two-way, the Version RR lives in the sweet spot — a serious coilover for a Mercedes-Benz C-Class that sees real driving without turning into a track-only build.

Features

  • Strictly designed and built for Auto Racing
  • Stiffer spring rates and shock valving combined with 20-30mm shorter shock stroke
  • 36 levels of damping which allow you the ability to perfectly dial in your coilover system
  • Collars and upper mounts made from 6061 aluminum with T6 for increased hardness
  • Adjustable spring perch for height adjustment
  • Adjustable lower mount allowing maximum suspension travel
  • Camber adjustment on many models
  • All metal pillowball for added strength and responsiveness
  • Monotube high pressure design for better performance and heat dissipation
  • Electroplated body for added protection from corrosion and rust

Specifications

Part Number CMD080-RR
Damping Adjustment 36-Way
Height Adjustable Yes
Spring Rate (Front) 18.0 kg/mm (1008 lbs/in)
Spring Rate (Rear) 18.0 kg/mm (1008 lbs/in)
Spring Type Linear
Top Mount (Front) Pillowball Mount with camber adjustment
Top Mount (Rear) Aluminum Mount no camber adjustment
Notes Ksport Electronic Damping Cancellation Kit EDCMD080 available for this application

Vehicle Fitment

  • 2008 Mercedes-Benz C-Class
  • 2009 Mercedes-Benz C-Class
  • 2010 Mercedes-Benz C-Class
  • 2011 Mercedes-Benz C-Class
  • 2012 Mercedes-Benz C-Class
  • 2013 Mercedes-Benz C-Class
  • 2014 Mercedes-Benz C-Class

Important Fitment Note

RWD excludes 4MATIC
