Product Details

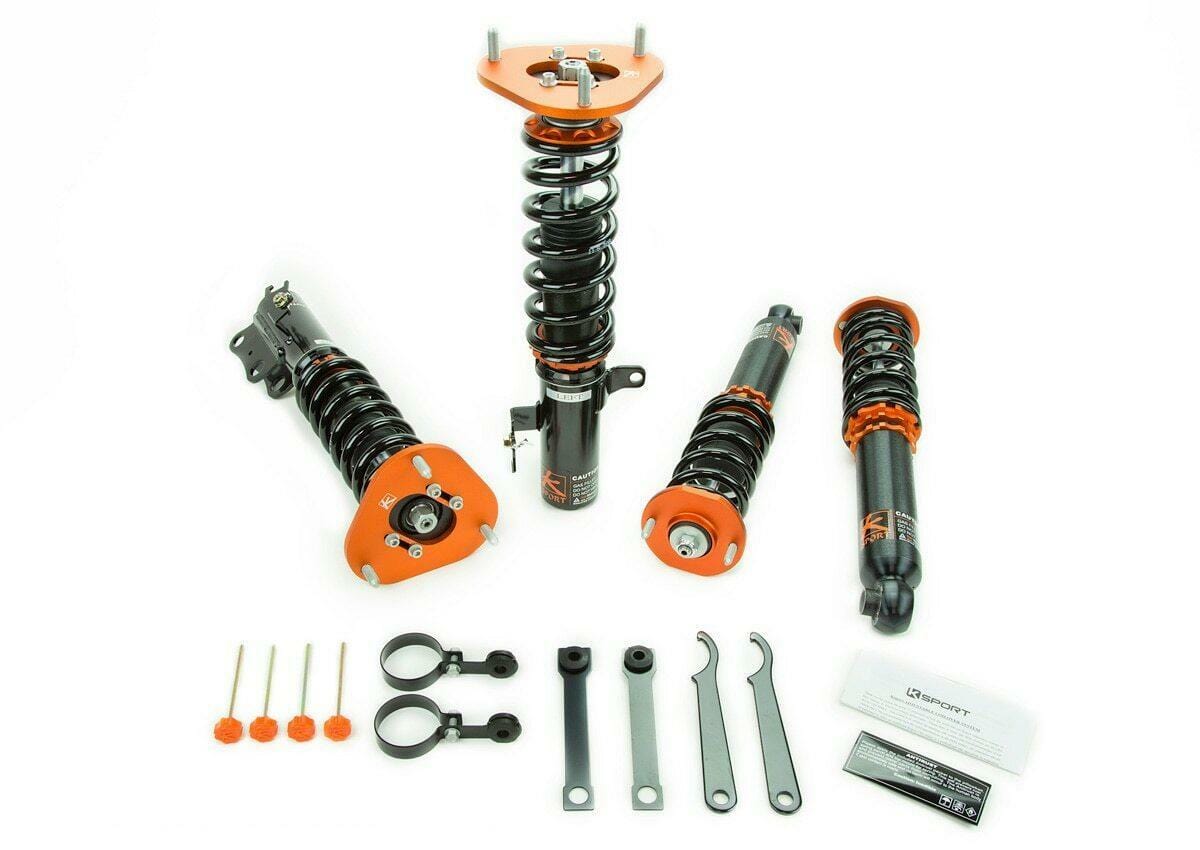

The KSport Version DR Drag Race Coilover Kit is purpose-built to launch the 1984-1992 Volkswagen Golf harder and straighter. Soft front spring rates and drag-specific damping let the nose lift to plant the rear tires, while stiffer rear valving controls squat and keeps power going through the contact patch — the difference between spinning and hooking when the tree turns green.

Full height adjustment lets you set pre-load and corner weights for your Volkswagen Golf's driveline layout, and single-knob damping adjustment makes tuning between passes fast. If you're building a dedicated drag car or a street/strip Golf that still has to drive home, the Version DR is a coilover system designed to put power on the ground.

Features

  • Spring rates and shock valving specific for Drag Racing
  • 36 levels of damping which allow you the ability to perfectly dial in your coilover system
  • Collars and upper mounts made from 6061 aluminum with T6 for increased hardness
  • Adjustable spring perch for height adjustment
  • All metal pillowball for added strength and responsiveness
  • Adjustable lower mount allowing maximum suspension travel
  • Monotube high pressure design for better performance and heat dissipation
  • Electroplated body for added protection from corrosion and rust

Specifications

Part Number CVW020-DR
Damping Adjustment 36-Way
Height Adjustable Yes
Spring Rate (Front) 5.3 kg/mm (297 lbs/in)
Spring Rate (Rear) 7.5 kg/mm (420 lbs/in)
Spring Type Linear
Top Mount (Front) Reuses OEM Top Mount
Top Mount (Rear) Reuses OEM Top Mount

Vehicle Fitment

  • 1984 Volkswagen Golf
  • 1985 Volkswagen Golf
  • 1986 Volkswagen Golf
  • 1987 Volkswagen Golf
  • 1988 Volkswagen Golf
  • 1989 Volkswagen Golf
  • 1990 Volkswagen Golf
  • 1991 Volkswagen Golf
  • 1992 Volkswagen Golf
