Product Details

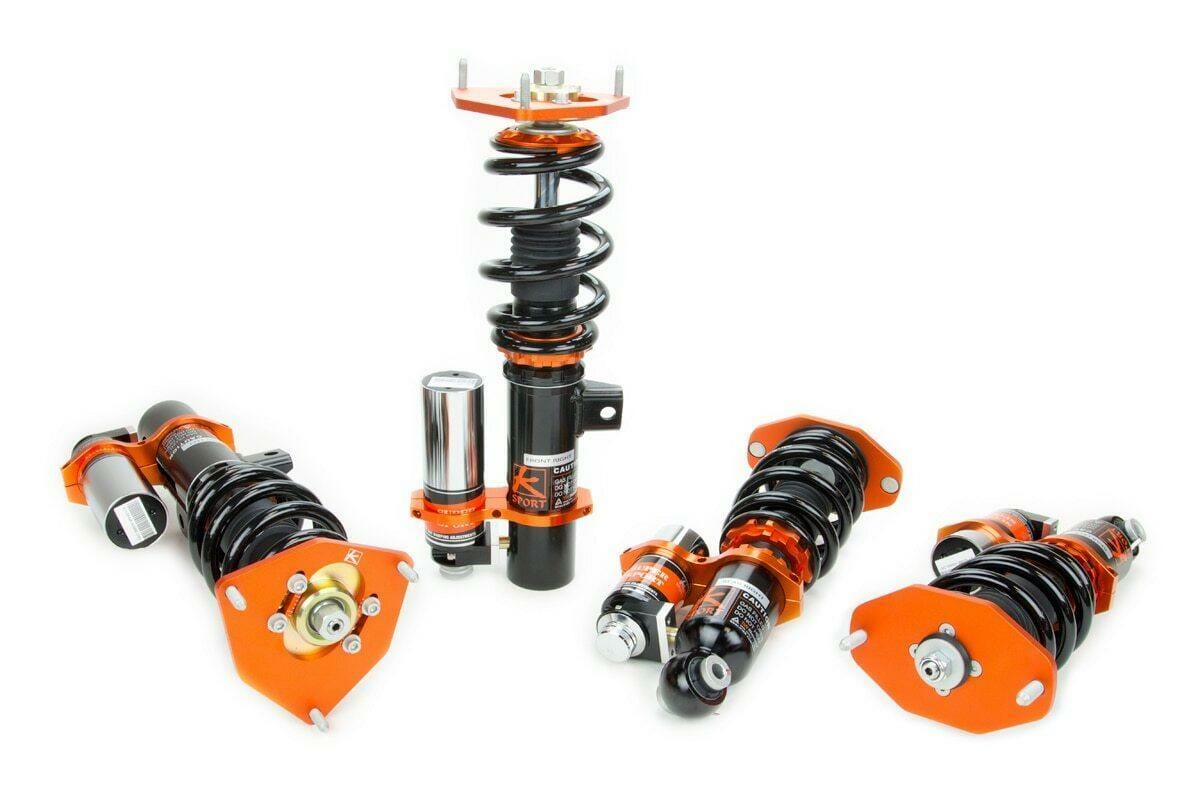

The KSport Kontrol Plus 2 Way Adjustable Coilover Kit opens up pro-level setup options for the 2008-2013 BMW M3. Remote reservoirs give you separate compression and rebound knobs — so you can dial out understeer on a fast sweeper, free up the rear on corner exit, or soften the ride for a street drive without rewriting your entire setup. This is the kit to buy when one-knob damping has stopped being enough.

Added oil volume from the remotes keeps damper temperatures down through long sessions on track, while 55mm monotube shocks hold consistent force hour after hour. Pair the Kontrol Plus 2 Way with your BMW M3 for time attack, endurance laps, or serious canyon work where you need a chassis that behaves the same on lap twelve as it did on lap two.

Features

  • Kontrol Plus 2 Way coilover kit is its utilization of remote reservoirs that provide separate adjustments for rebound and compression
  • Over 864 possible shock settings
  • Remote reservoirs increase the kit’s ability to dissipate heat
  • Pillowball Top Mounts on most models
  • Adjustable lower mount allowing maximum suspension travel
  • Electroplated body for added protection from corrosion and rust
  • Monotube high pressure design for better heat dissipation
  • 36 levels of damping adjustment via the top of the assembly and an additional 24 levels of nitrogen adjustments via the bottom of the reservoir
  • Collars and upper mounts made from 6061 aluminum with T6 for increased hardness
  • Camber adjustment on most models
  • Pillowball top mount for increased steering feel on most models
  • Monotube high pressure design for better performance and heat dissipation

Specifications

Part Number CBM094-P2
Damping Adjustment 2-Way (864 settings via compression/rebound/pressure)
Height Adjustable Yes
Spring Rate (Front) 14.0 kg/mm (784 lbs/in)
Spring Rate (Rear) 14.0 kg/mm (784 lbs/in)
Spring Type Linear
Top Mount (Front) Pillowball Mount with camber adjustment
Top Mount (Rear) Aluminum Mount no camber adjustment
Notes True Rear Coilover

Vehicle Fitment

  • 2008 BMW M3
  • 2009 BMW M3
  • 2010 BMW M3
  • 2011 BMW M3
  • 2012 BMW M3
  • 2013 BMW M3

Important Fitment Note

Coupe, Sedan, Convertible
