Product Details

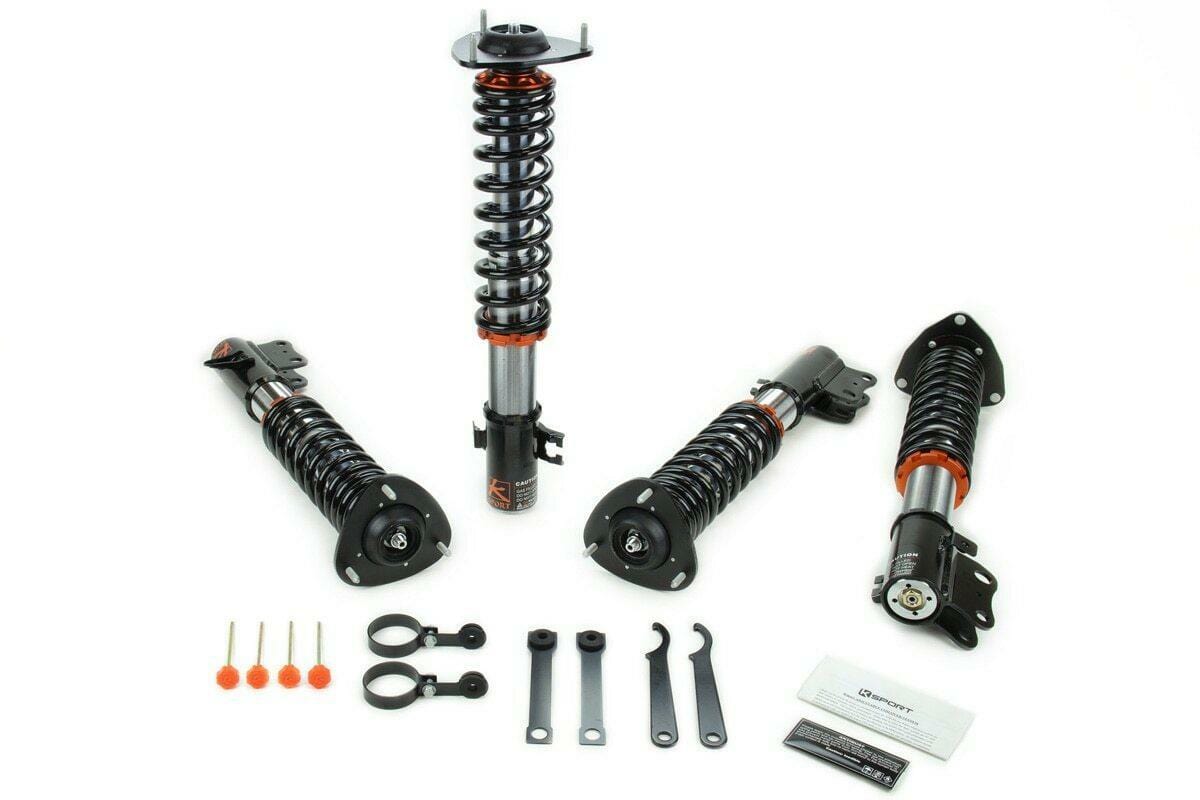

The KSport Gravel Rally GR Coilover Kit is designed to let the 1999-2005 Volkswagen Golf soak up gravel stages, rough forest roads, and the compression hits that destroy street-tuned dampers. Extended stroke, heavy-duty internals, and rally-specific damping curves keep the wheels planted over dirt, ruts, and jumps so you can carry speed on surfaces where most coilover kits simply can't survive.
Large shock bodies handle the sustained heat of long stages, and the adjustable lower mount lets you run the taller, more compliant ride height rally driving demands without losing suspension travel. For Volkswagen Golf owners building a gravel car — or just wanting a coilover tough enough for roads most kits weren't designed for — the Gravel Rally GR is the KSport choice.
Features
- Specially designed extended length springs for rally racing
- Extended cylinder length and piston stroke, which greatly improved handling over uneven and bumpy roads.
- Inverted design for McPherson type suspension
- Large 55mm shock bodies and increased shock fluid volume for better cooling
- Heavy duty strengthened steel top mounts
- Heavy duty steel lower mounts for stronger protection under aggressive track driving
- 36-way adjustable damping
- Adjustable spring perch for height adjustment
- Monotube high pressure design for better performance and heat dissipation
- Electroplated body for added protection from corrosion and rust
- Integrated Bump stop and Dust boot to protect damper seal
Specifications
| Part Number | CVW040-GR |
| Damping Adjustment | 36-Way |
| Height Adjustable | Yes |
| Spring Rate (Front) | 6.1 kg/mm (342 lbs/in) |
| Spring Rate (Rear) | 4.0 kg/mm (224 lbs/in) |
| Spring Type | Linear |
| Top Mount (Front) | Reuses OEM Top Mount |
| Top Mount (Rear) | Reuses OEM Top Mount |
Vehicle Fitment
- 1999 Volkswagen Golf
- 2000 Volkswagen Golf
- 2001 Volkswagen Golf
- 2002 Volkswagen Golf
- 2003 Volkswagen Golf
- 2004 Volkswagen Golf
- 2005 Volkswagen Golf
