Product Details

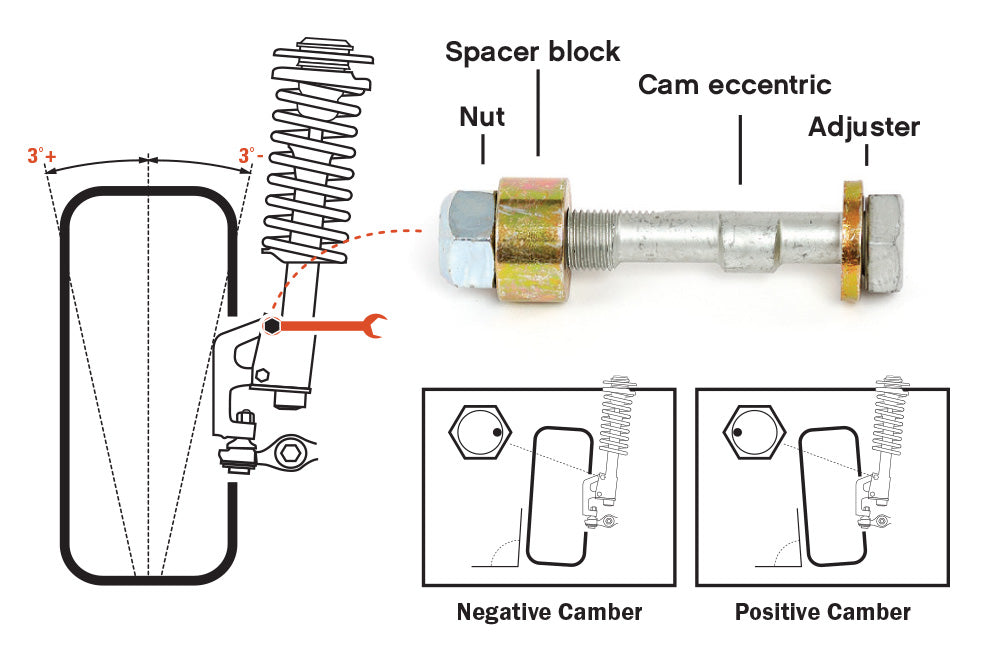

Consisting of a pair of specially-designed bolts, H&R patented "Triple C" Camber Adjustment Bolts to your 2006-2012 Suzuki Grand Vitara 4WD (JT) replace the original upper fastening bolts on McPherson strut applications. As the bolt is turned, a small cam eccentric alters the vehicle's camber, allowing adjustments from 0-3 degrees, positive or negative. When you lower a vehicle's ride height, negative camber is increased ? how much depends on the vehicle and the reduction in ride height. H&R "Triple C" Camber Adjustment Bolts are a simple, yet very effective means of removing excessive camber, adjusting your vehicle's camber settings, or even correcting small side-to-side camber variations for precise alignment. Installation takes only minutes with readily available hand tools, and benefits include increased tire life, improved tracking and the ability to dial in more camber for weekend track events.
Standard Features
- Specially designed bolts allow for camber adjustment on McPherson strut designs
- Easy install
- + or -3 degree adjustment range
- Fine tune your alignment for optimum tire wear or track performance
- Made in Germany
Specifications
| Part Number | TC114 |
| Part Name | Electronics |
| Vehicle | 2006-2012 Suzuki Grand Vitara 4WD |
| Chassis Code | JT |
Vehicle Fitment
- 2006 Suzuki Grand Vitara 4WD (JT)
- 2007 Suzuki Grand Vitara 4WD (JT)
- 2008 Suzuki Grand Vitara 4WD (JT)
- 2009 Suzuki Grand Vitara 4WD (JT)
- 2010 Suzuki Grand Vitara 4WD (JT)
- 2011 Suzuki Grand Vitara 4WD (JT)
- 2012 Suzuki Grand Vitara 4WD (JT)
