Product Details

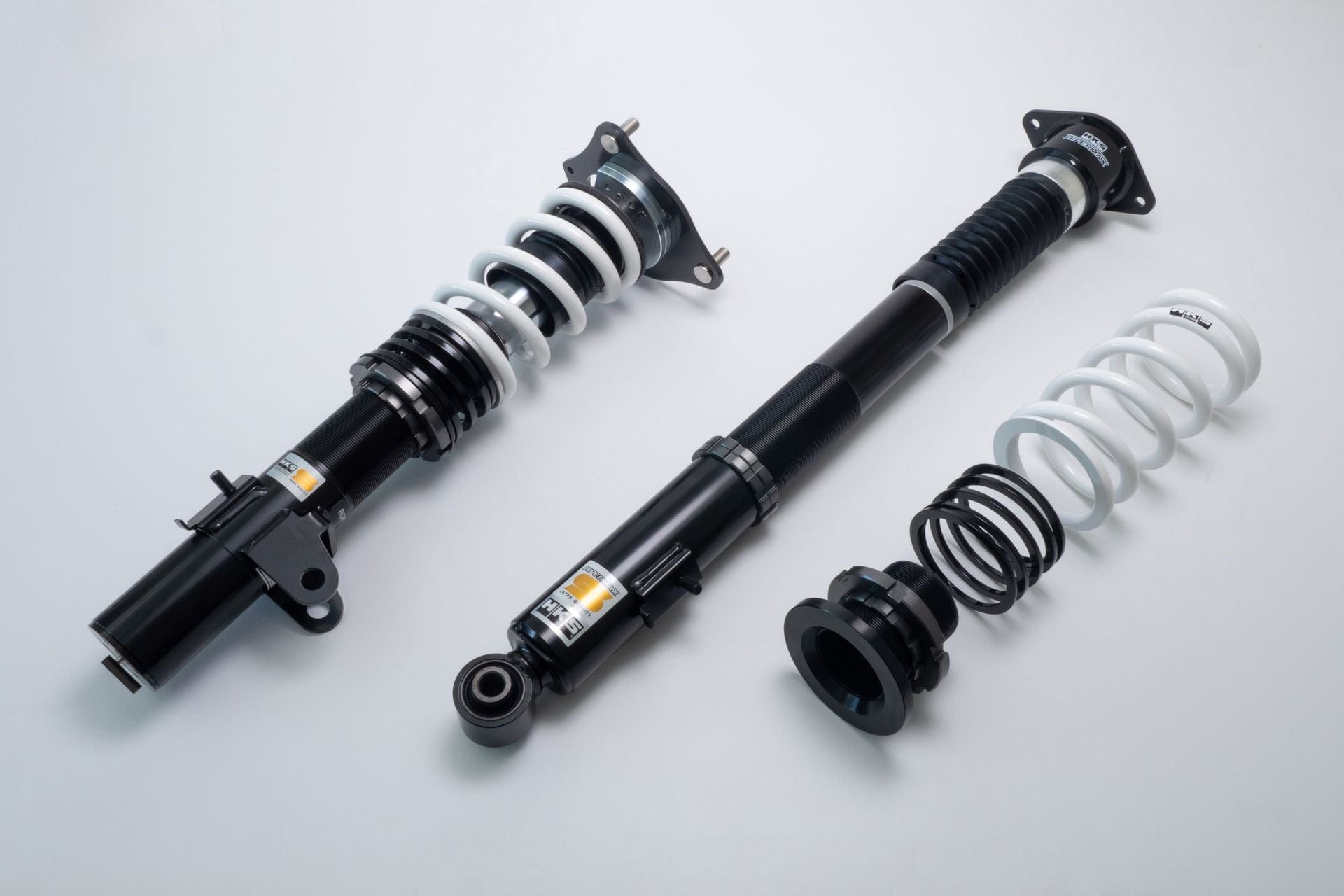

HKS Hipermax S coilovers for the 2023+ Honda Civic Type R (FL5) are engineered for drivers who want genuine performance gains without giving up daily-driver comfort. Built around HKS's FLAT RIDE CONCEPT, the Hipermax S smooths out low-speed harshness while keeping the Honda Civic Type R planted under hard cornering — delivering the refined, controlled ride quality that makes a coilover worth owning on the street.
30-level damping adjustment, a large-diameter monotube damper, Dual PVS, and DURA BOOTS give the Hipermax S its signature mix of long-life durability and tunability. Length-adjustable shock bodies let you lower the Honda Civic Type R without pre-loading the spring, and every kit is backed by HKS's class-leading 3-year / 60,000 km warranty — validated over 60,000 km of real-world testing before it ever leaves Japan.
Features
- Monotube damper construction — separates gas/oil for stable damping under heat
- 30-level damping adjustment via the WR Needle valve system
- FLAT RIDE CONCEPT tuning — absorbs low-speed road harshness, controls body roll
- Dual Preload Valve System (Dual PVS) — tuned per chassis
- DURA BOOTS — new-spec dust boots with improved heat, weather, and ozone resistance
- Advanced Bump Rubber Plus — progressive, early engagement
- Reinforced rubber upper mounts (pillowball optional on select SKUs)
- HKS in-house cold-formed springs with printed spring rates
- PNE corrosion coating on threaded surfaces
- Length-adjustable shock body — preload-independent height adjustment
- 3-year / 60,000 km warranty (validated through real-world driving)
- Rebuildable — dust boots and stabilizer links now covered
- Made in Japan
Specifications
| Part Number | 80300-AH013CP |
| Part Name | HKS Hipermax S Coilovers |
| Vehicle | 2023+ Honda Civic Type R |
| Chassis Code | FL5 |
| Country of Origin | Japan |
| Damping Adjustment | 30-Level 1-Way |
| Height Adjustable | Yes |
| Spring Rate - Front | 10.0 Kg/mm |
| Spring Rate - Rear | 8.0 Kg/mm |
| Spring Length - Front | 150mm |
| Spring Length - Rear | 170mm |
| Upper Mount - Front | Spherical Bearing |
| Upper Mount - Rear | Rubber |
| Ride Height Range - Front | -23mm (-21mm to -43mm) |
| Ride Height Range - Rear | -22mm (+3mm to -41mm) |
| Warranty | 3-year / 60,000 km |
Important Fitment Notes
- Front upper mount: pillowball type. Includes Suspension Error Canceler
Vehicle Fitment
- 2023 Honda Civic Type R (FL5)
- 2024 Honda Civic Type R (FL5)
- 2025 Honda Civic Type R (FL5)
- 2026 Honda Civic Type R (FL5)
