Product Details

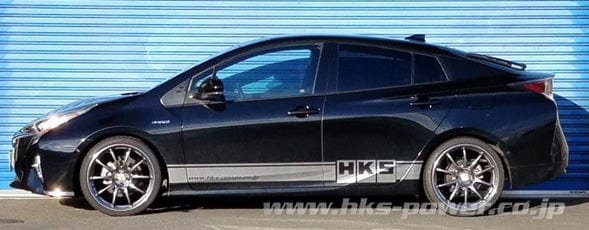

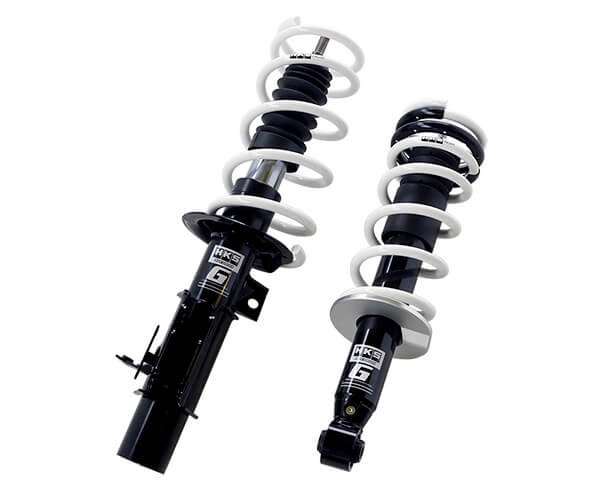

HKS Hipermax G coilovers for the 2016+ Toyota Prius (ZVW50/ZVW51) are tuned specifically for vehicles where ride quality, body control, and factory-level integration matter more than adjustability. The Hipermax G retains the stock upper mounts and full factory suspension stroke — giving the Toyota Prius a meaningful drop in stance without the harshness, geometry changes, or cabin noise that come with aggressive coilover setups.
A single-tube monotube damper, exclusive Low-Down Style springs, and HKS's PNE coating (5x the corrosion resistance of standard galvanizing) make the Hipermax G the right call for family vehicles, long commutes, and harsh road conditions. Each unit is assembled in an ISO 9001 facility in Japan and dyno-tested individually before shipping, so the Toyota Prius rides as cleanly on delivery as it does a hundred thousand miles later.
Features
- Single-tube monotube damper for consistent damping and rigidity
- OEM upper mounts retained — no NVH increase, preserves factory geometry
- Low-Down Style Spring — special material for durability at lowered ride height
- Full factory suspension stroke retained
- Multiple valve shim specifications per vehicle for optimal damping character
- PNE coating — 5x the durability of standard galvanizing in harsh environments
- Strengthened mounting brackets vs. conventional dampers
- Individually dyno-tested at the factory
- Made in an ISO 9001-certified Japanese facility
Specifications
| Part Number | 80260-AT004 |
| Part Name | HKS Hipermax G Coilovers |
| Vehicle | 2016+ Toyota Prius |
| Chassis Code | ZVW50/ZVW51 |
| Country of Origin | Japan |
| Damping Adjustment | Non-Adjustable |
| Height Adjustable | Yes |
| Spring Rate - Front | 2.5 Kg/mm |
| Spring Rate - Rear | 3.8 Kg/mm |
| Upper Mount - Front | OEM |
| Upper Mount - Rear | OEM |
| Warranty | 2-year / 40,000 km |
Important Fitment Notes
- Make-to-order item. 2WD only
Vehicle Fitment
- 2016 Toyota Prius (ZVW50/ZVW51)
- 2017 Toyota Prius (ZVW50/ZVW51)
- 2018 Toyota Prius (ZVW50/ZVW51)
- 2019 Toyota Prius (ZVW50/ZVW51)
- 2020 Toyota Prius (ZVW50/ZVW51)
- 2021 Toyota Prius (ZVW50/ZVW51)
- 2022 Toyota Prius (ZVW50/ZVW51)
- 2023 Toyota Prius (ZVW50/ZVW51)
- 2024 Toyota Prius (ZVW50/ZVW51)
- 2025 Toyota Prius (ZVW50/ZVW51)
- 2026 Toyota Prius (ZVW50/ZVW51)
