Product Details

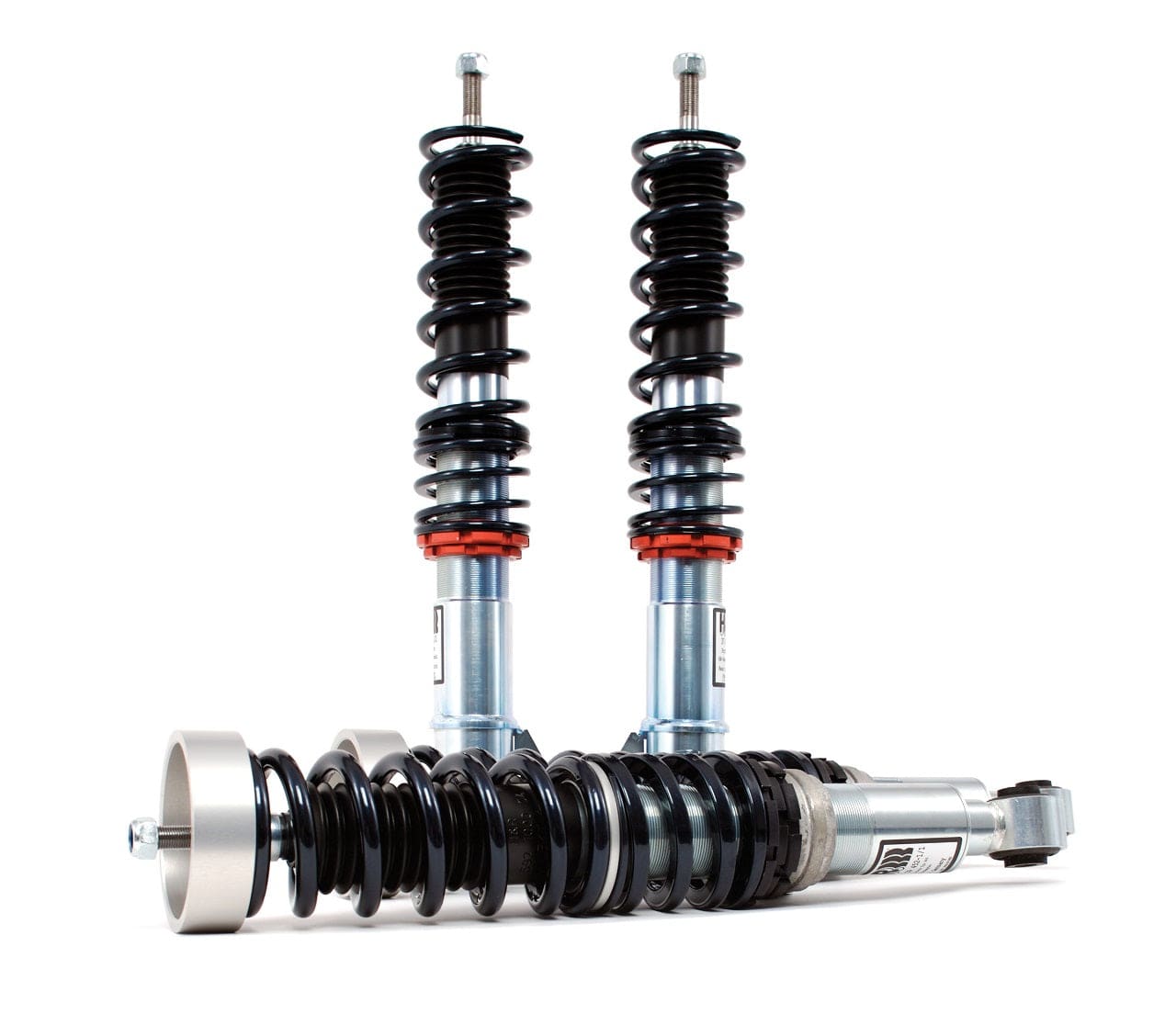

H&R RSS Coilovers for your 2011-2014 Ford Mustang V6/V8 (S197) are designed and tested on the famous Nurburgring, and are for the performance minded driver that requires the most vehicle feedback. The result is flat cornering and supreme directional control - a perfect choice for the high performance driver. RSS Coilovers lower the center of gravity and reduce body roll for better handling.
Like all H&R coilovers, RSS Coilovers feature H&R exclusive dynamic damper technology and a fully threaded shock body.
Standard Features
- Height adjustable to 1.0 - 2.3 inches on average
- More spring rate and shock valving
- Fully threaded body
- Tuned spring rates and dampers for the performance driver.
- The most feedback, flat cornering, and supreme directional control
- Made in Germany
Specifications
| Part Number | RSS29170-2 |
| Part Name | Coilovers |
| Country of Origin | Germany |
| Vehicle | 2011-2014 Ford Mustang V6/V8 |
| Chassis Code | S197 |
| Damping Adjustment | Non-Adjustable |
| Ride-Height Adjustable | Yes |
| Front Lowering | 1.2 - 2.7 inches |
| Rear Lowering | 1.2 - 2.5 inches |
| Front Spring Rates | 630 lb/in | 11.2 kg/mm |
| Rear Spring Rates | 515 lb/in | 9.2 kg/mm |
| Part Note 1 | Damping Adjustable Front |
| Part Note 2 | Springs upgrade with different spring rates available: Requires part number 29170CS3 |
| Part Note 3 | Optional Spring Rates: Front 715 lb/in | 12.8 kg/mm - Rear: 600 lb/in | 10.7 kg/mm |
| Quantity | Full Set (Front & Rear) |
| Fitment Note 1 | Lowering varies by engine size, battery package, and model options. |
Vehicle Fitment
- 2011 Ford Mustang V6/V8 (S197)
- 2012 Ford Mustang V6/V8 (S197)
- 2013 Ford Mustang V6/V8 (S197)
- 2014 Ford Mustang V6/V8 (S197)
