Product Details

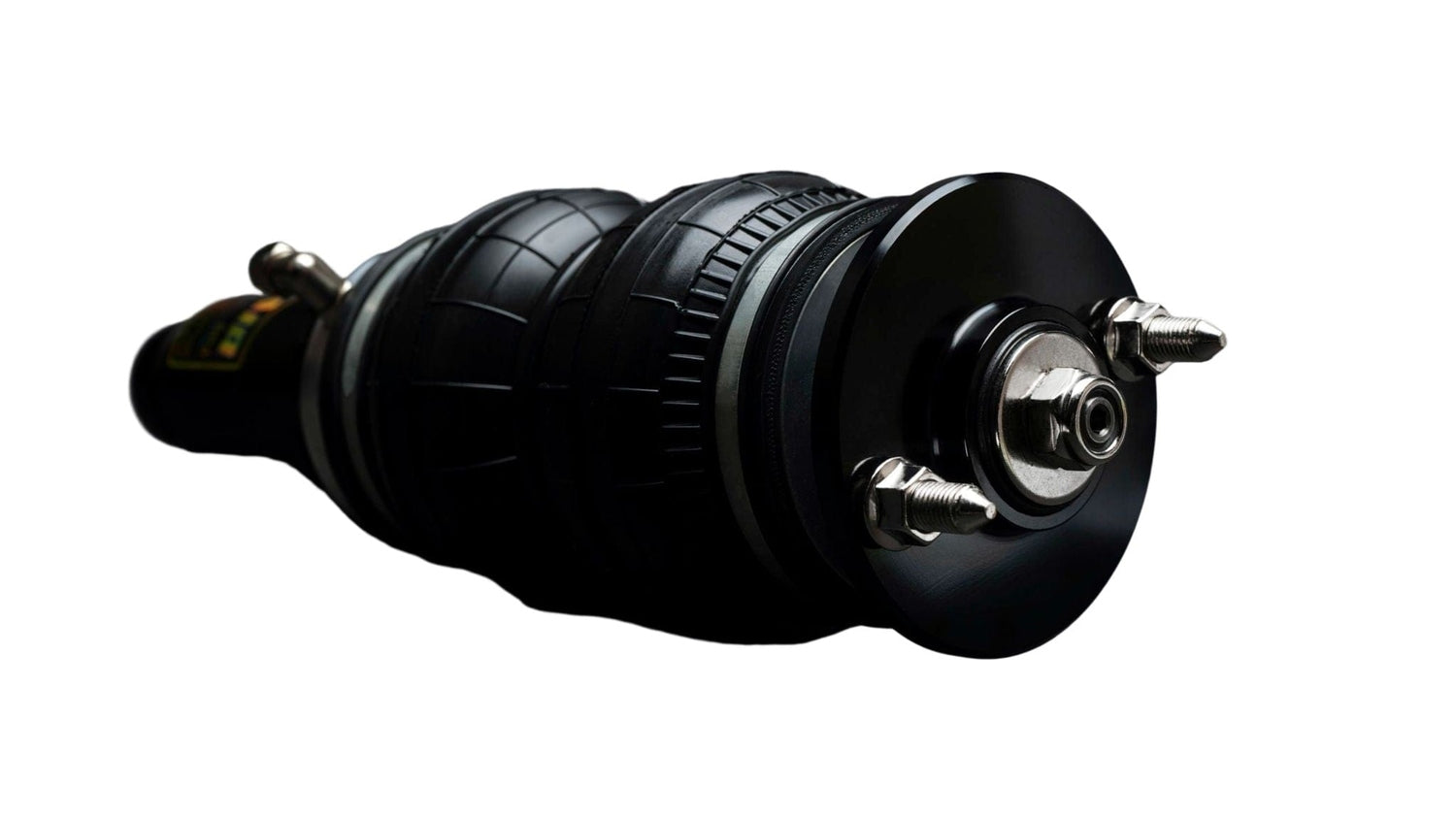

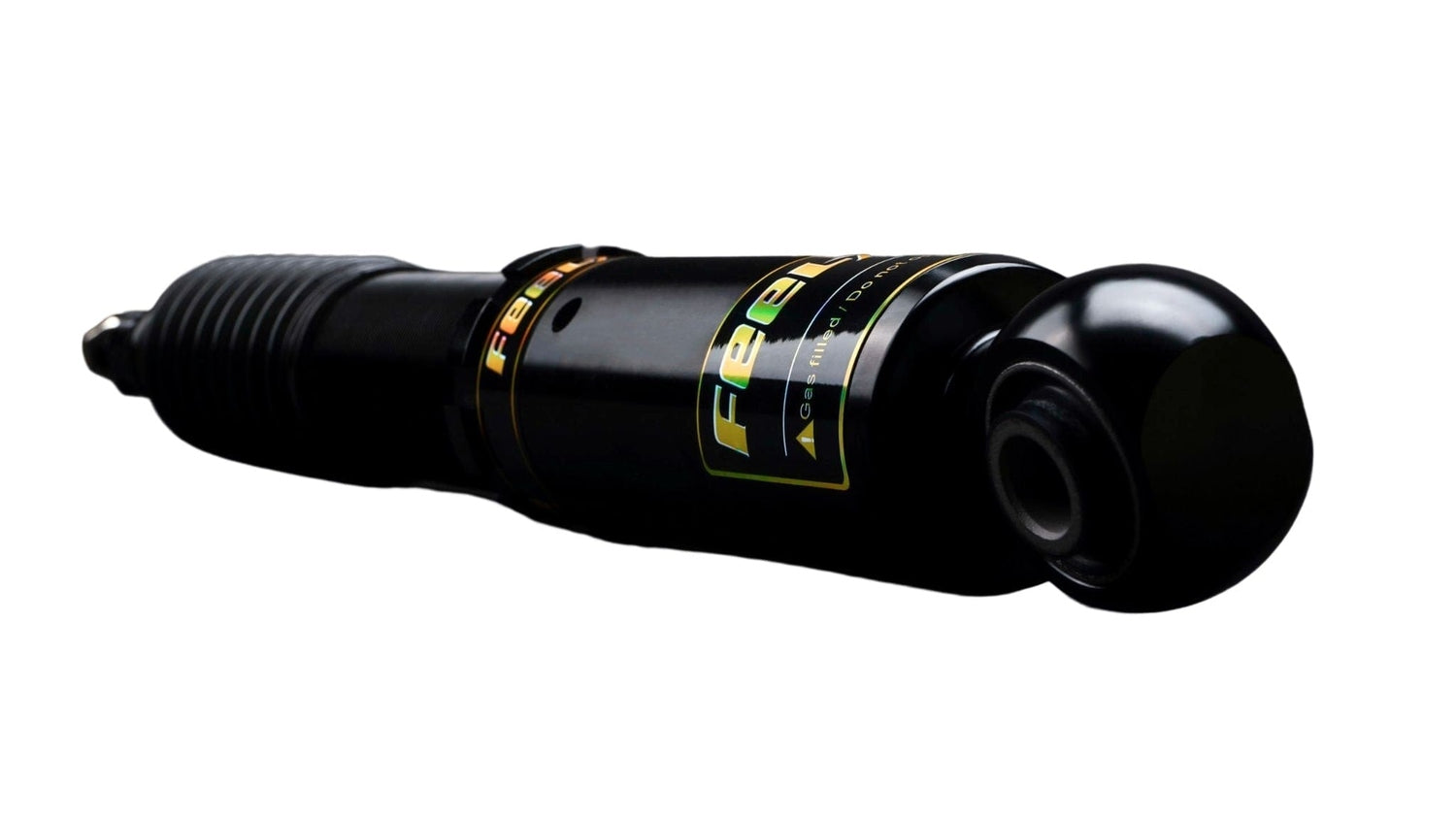

Function and Form Type 5 Air Struts for the 2005-2014 Ford Mustang S197 round out our lineup of performance suspension products. Our line of air struts allow drivers to achieve that ultimate show look when parked for the local meets, yet still, deliver a smooth ride for cruising down the freeway on the way home. Easily adjust the ride height with pre-sets. Pair with our pressure or other sensor-based air management systems.
What it Feels Like: Air springs provide a smooth, constant 'gliding' ride quality. Reduction of noise, vibration, and harshness.
NOTE: Frame modifications for strut tower may be required for select models to accommodate camber plate mounting.
Features
- Double bellows air springs with reinforced girdle hoop
- Dual chamber convoluted air springs fit into tight spaces and tolerance for angular differences
- Designed to be plumbed with 1/4 inch or 3/8 inch air lines
- 32-step adjustable damping spectrum
- Fully threaded damper body for ride height adjustments
- Linear valving design allows for predictable uniform stiffness that increases as the piston speed increases
- Durable steel and aluminum components withstand real world road conditions while reducing weight
- Adjustable sway bar end links included for select models
- Camber top plates available for select vehicles with MacPherson style suspension
Specifications
Part Number | 57100805 |
Part Name | Function and Form Type 5 Air Struts |
Vehicle | 2005-2014 Ford Mustang S197 |
Chassis Code | |
Adjustment Type | 1-Way |
Damping Adjustable | Yes |
Height Adjustable | Yes |
Primary Color | Black |
Front/Rear Camber Top Plates Note | Camber top plates are available or are included for select vehicles with MacPherson style suspension |
Front Top Mounts | Steel |
Rear Top Mounts | Not applicable |
Front/Rear Top Mounts Note | Select vehicles with MacPherson style suspension will include a pillowball top mount assembly |
Vehicle Fitment
- 2005 Ford Mustang S197
- 2006 Ford Mustang S197
- 2007 Ford Mustang S197
- 2008 Ford Mustang S197
- 2009 Ford Mustang S197
- 2010 Ford Mustang S197
- 2011 Ford Mustang S197
- 2012 Ford Mustang S197
- 2013 Ford Mustang S197
- 2014 Ford Mustang S197
