Product Details

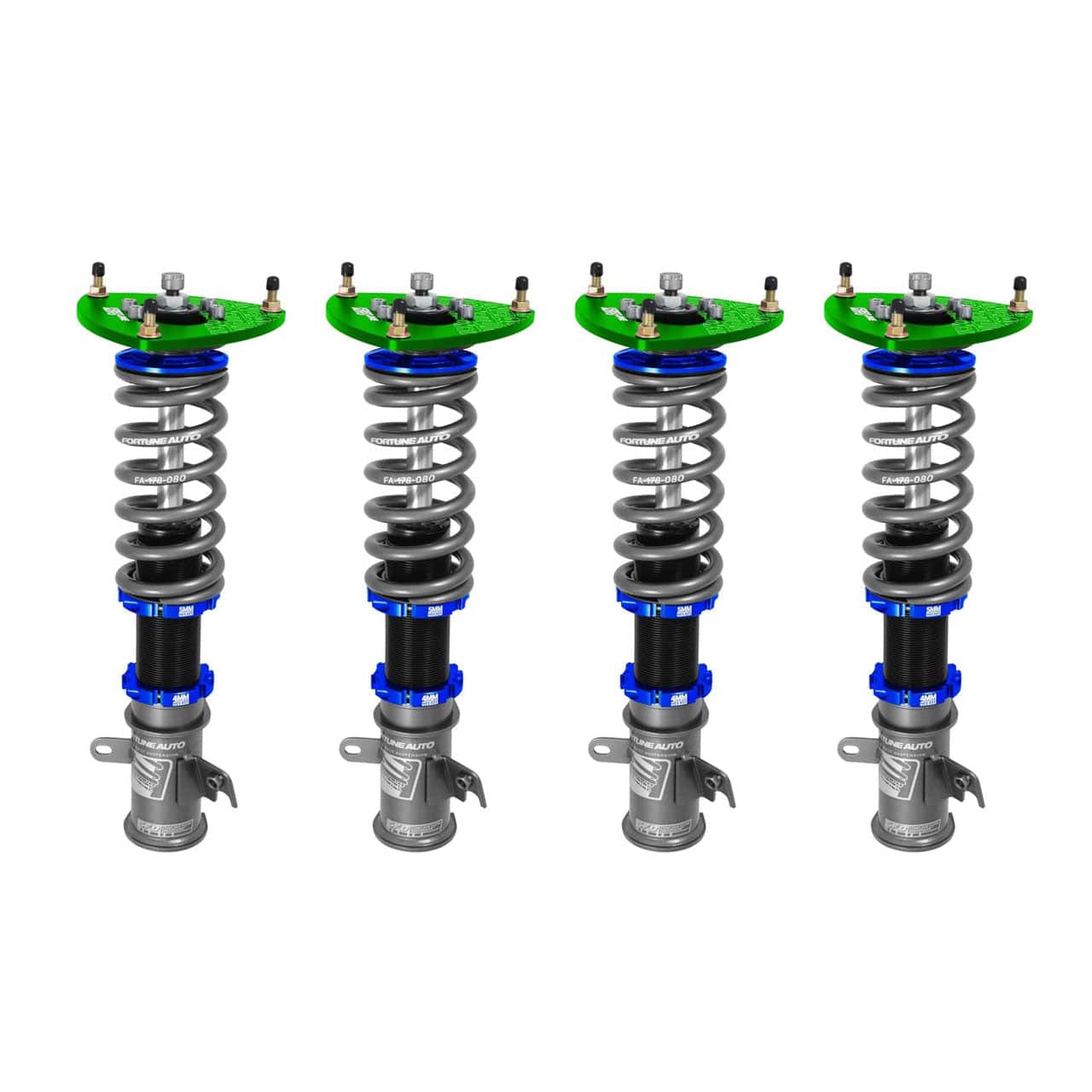

The Fortune Auto 510 Series Coilovers for the 2009-2022 Nissan GT-R (R35) deliver the perfect balance of daily driving comfort and track-ready performance. These R35 GT-R coilovers feature Fortune Auto's Generation 8 monotube damper technology with 24-step adjustable damping, giving you full control over your Nissan GT-R suspension setup. Custom-built and dyno-tested in the USA, every set is matched specifically for your R35 and backed by a 5-year limited warranty.
Generation 8 Technology
- Concave Flow Digressive™ (CFD) Pistons — 6XXX alloy series with optimized high flow valves for maximum damper sensitivity and an incredibly dynamic adjustment range
- Radial Bearing Mounts — Koyo Japan bearings for noise-free operation and smoother steering response (MacPherson applications)
- Premium Chrome Silicon Springs — Superior alloy for better performance, longevity, and ride quality
- Bright Dip Anodized Components — Chemical polishing process that protects against corrosion and oxidation

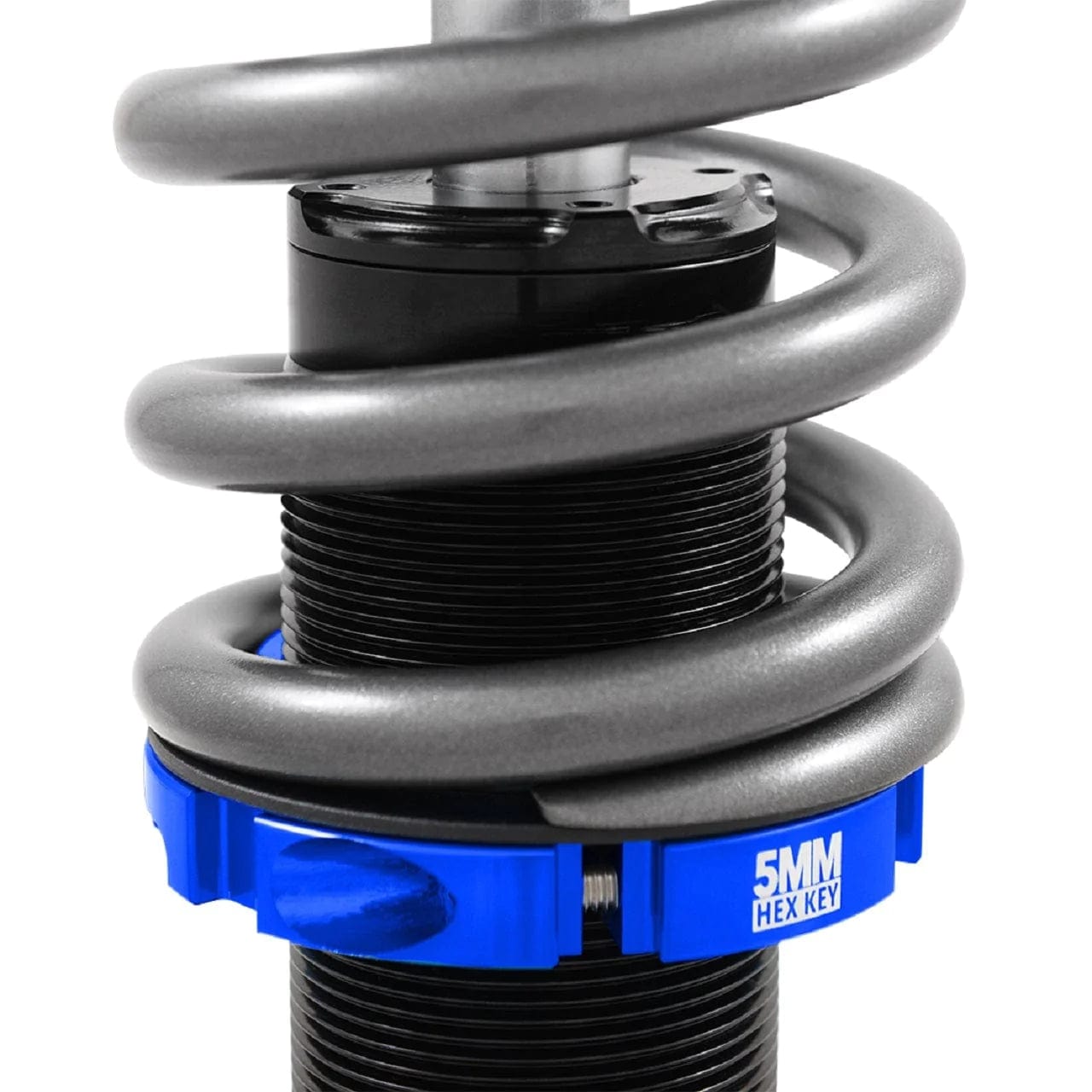

- Laser Etched Hardware — Top plates, spring perches, and locking rings labeled with hex key sizes for easy setup
- Lower Mount Locking Ring Clamps — Now standard for easier adjustment and less prone to coming loose in high mechanical grip applications
Features
- FA Synthetic Shock Oil
- Concave Flow Digressive Piston Technology™
- Lower Mount Locking Ring Clamps
- Radial Bearing Mounts Standard on MacPherson Applications
- Premium Chrome Silicon Springs
- Custom Built and Dyno Tested
- 5 Year Limited Manufacturer's Warranty
- 24-Step Adjustable Dampers
- Monotube Damper with High Pressure Nitrogen
- T6 6061 Aluminum Mounts
- Rebuildable and Revalveable at our Facility in the USA
- Modularity – Upgradeable to 2-Way or 3-Way Canister
Specifications
| Part Number | FA510CFD-R35 |
| Part Name | 510 Series Coilovers |
| Vehicle | 2009-2022 Nissan GT-R |
| Chassis Code | R35 |
| Spring Rate - Front | 14 Kg/mm |
| Spring Rate - Rear | 10 Kg/mm |
| Custom Spring Rates Available? | Yes |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | True Coilover |
| Damping Adjustment | 1-Way (24-Step) |
| Ride-Height Adjustable | Yes |
| Spring Type | Chrome Silicon |
| Camber Plates Included | No |
Vehicle Fitment
- 2009 Nissan GT-R
- 2010 Nissan GT-R
- 2011 Nissan GT-R
- 2012 Nissan GT-R
- 2013 Nissan GT-R
- 2014 Nissan GT-R
- 2015 Nissan GT-R
- 2016 Nissan GT-R
- 2017 Nissan GT-R
- 2018 Nissan GT-R
- 2019 Nissan GT-R
- 2020 Nissan GT-R
- 2021 Nissan GT-R
- 2022 Nissan GT-R
