Product Details

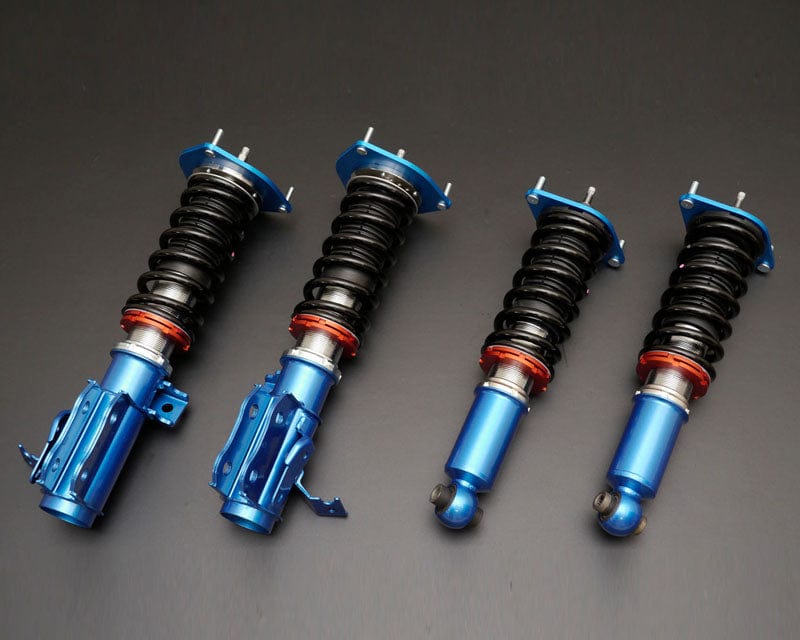

The Cusco Street Zero A Coilovers for the 2022-2025 Toyota GR86 (ZN8) drop your GR86 up to 55mm while unlocking sharper steering response, reduced body roll, and the confident rear-end stability the FA24 platform was designed to deliver. With 40-level adjustable damping and 7/8 Kg/mm spring rates, these Cusco coilovers offer the widest adjustment range in the Street Zero A lineup — from a comfortable daily setup to a track-ready configuration in minutes.
GR86 coilovers need to complement a chassis that already prioritizes driver engagement, and the Street Zero A enhances it with pillow ball camber-adjustable front upper mounts for precise alignment control after lowering. Rear mount options let you choose between hard rubber for refined street driving or pillow ball for maximum chassis feedback on track days. Full-tapped threaded cases adjust height independently of spring preload, preserving full suspension stroke at any ride height. eCon2 compatible. Made in Japan.
Features
- 40-Level adjustable damping (1-Way)
- Full-tapped case for total ride-height control
- CPRV internal valve for stable damping force
- eCon electronic controller compatible
- Front camber-adjustable pillow ball upper mounts included
- Rear upper mount options: Hard Rubber or Pillow Ball
- Twin-tube shock absorber
- Optional spring rates available
- Made in Japan
Specifications
| Part Number | 6C1 61N CN / 6C1 61N CP |
| Part Name | Cusco Street Zero A Coilovers |
| Vehicle | 2022-2025 Toyota GR86 |
| Chassis Code | ZN8 |
| Engine | FA24 (2.4L) |
| Drivetrain | RWD |
| Damping Adjustment | 1-Way (40 levels) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 7 Kg/mm (optional 8, 9, 10) |
| Spring Rate - Rear | 8 Kg/mm (optional 7, 9, 10) |
| Camber Plates - Front | Yes (Pillow Ball) |
| Camber Plates - Rear | No |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | True Coilover |
| Notes | Rear upper mount options: Hard Rubber (CN) / Pillow Ball (CP); eCon2 compatible |
Vehicle Fitment
- 2022 Toyota GR86 (ZN8)
- 2023 Toyota GR86 (ZN8)
- 2024 Toyota GR86 (ZN8)
- 2025 Toyota GR86 (ZN8)
