Bilstein CA5 Series 46mm Monotube Suspension Rear Shock Absorber - 11.67 in. Collapsed, 0.52m/s: 370 Compression A511152530
Bilstein CA5 Series 46mm Monotube Suspension Rear Shock Absorber - 11.67 in. Collapsed, 0.52m/s: 370 Compression A511152530

Bilstein

|

SKU: A511152530

Bilstein CA5 Series 46mm Monotube Suspension Rear Shock Absorber - 11.67 in. Collapsed, 0.52m/s: 370 Compression

$316.33
Ask a question
Out of stock

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In-Stock: 1 business day
  • Out of Stock: 3-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

Lifetime Manufacturer Warranty

Most of the BILSTEIN products available in the North American aftermarket are backed by our LIMITED LIFETIME WARRANTY for as long as you own your BILSTEIN products, while certain product categories are backed by industry leading warranties ranging from 90 days to two (2) years. Please consult our BILSTEIN Warranty Promise to see which warranty is applicable to your product.

More Information

Product Details

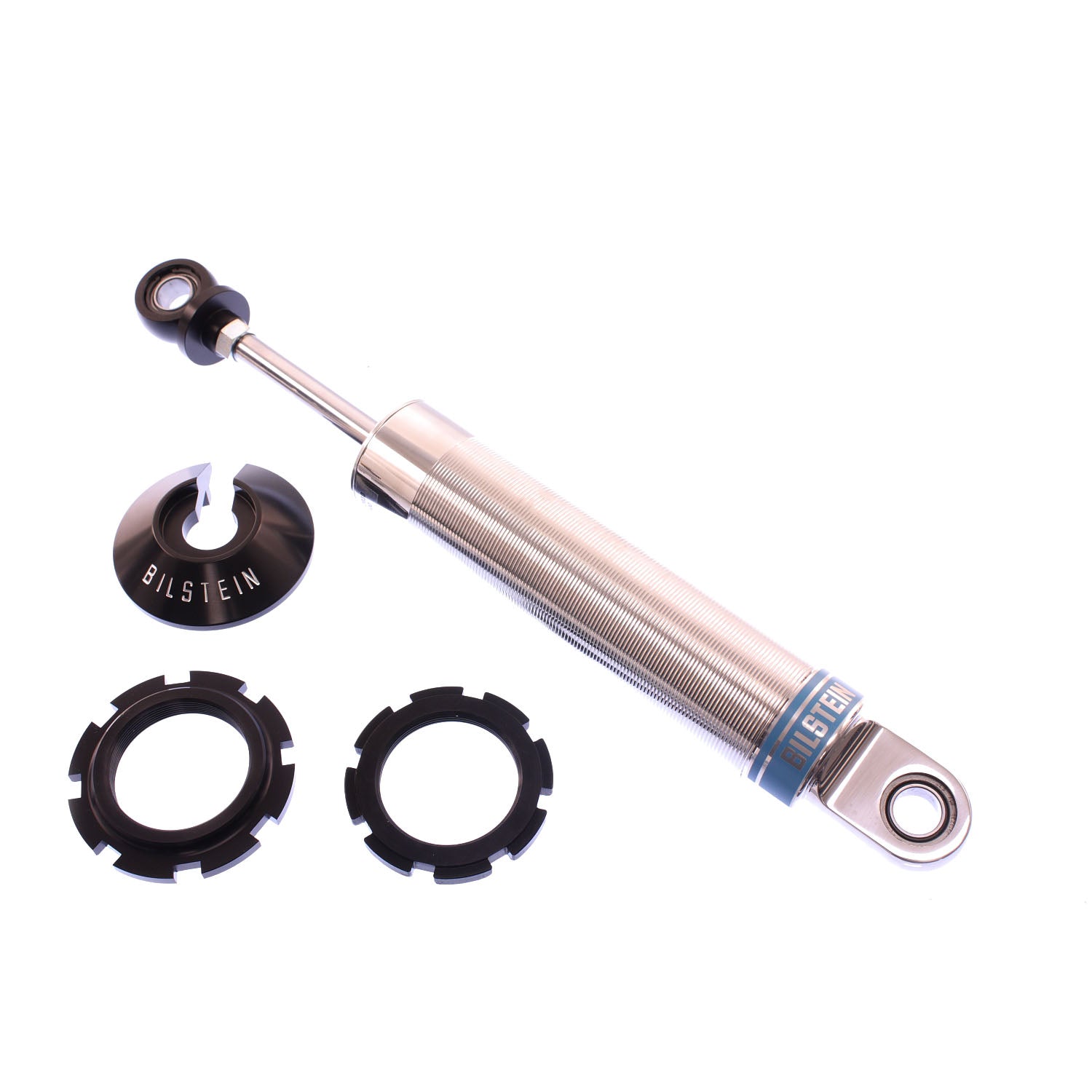

Bilstein CA5 Series Shock Absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. Built around a billet aluminum monotube design, these Shock Absorbers feature a 46mm piston, threaded body, 5/8 inch spherical rod end mounts and various lengths and valve settings to choose from. Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring. Bilstein CA5 Series Shock Absorbers provide a wide range of options to support any custom street rod application need.

Standard Features

  • Designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup
  • Built around a billet aluminum monotube design, these shock absorbers feature a 46mm piston, threaded body, 5/8 inch spherical rod end mounts and various lengths and valve settings to choose from

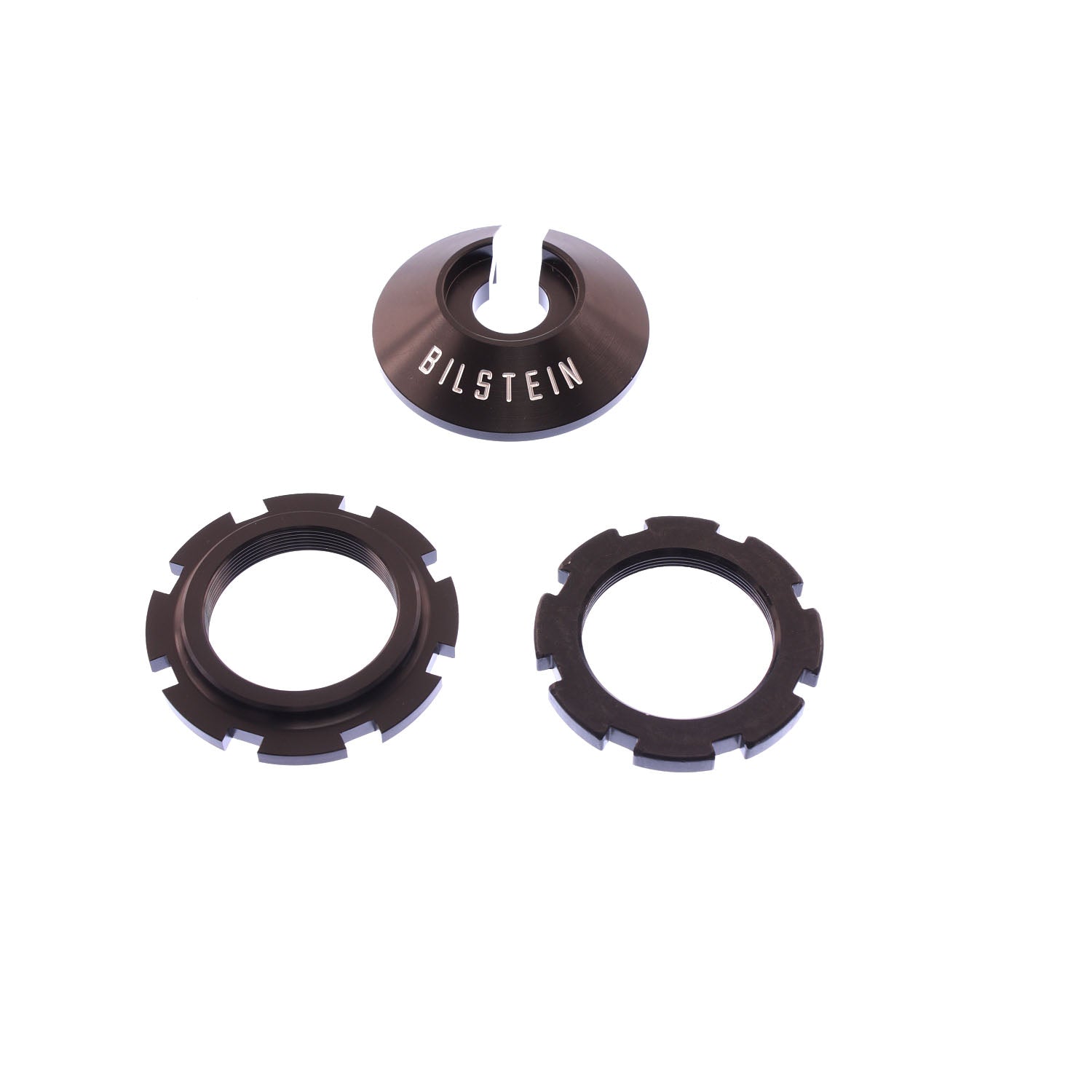

  • Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring
Specifications
Part Number A511152530
Part Name Shock Absorber
UPC 651860597355
Boot Included No
Collapsed Length 11.67 in.
Collapsed Length 296.5mm
Compression @ 0.52m/s 370
Extended Length 15.16 in.
Extended Length 385mm
Finish Polished Aluminum
Internal Design Monotube
Lower Mount Type 15.9mm Heim
Vehicle Placement Rear
Rebound @ 0.52m/s 1350
Recommended Mounting Length 12.5 in.
Segment Tuning
Series CA5 Series
Spring Seat Included Yes
Upper Mount Type 15.9mm Heim
