Product Details

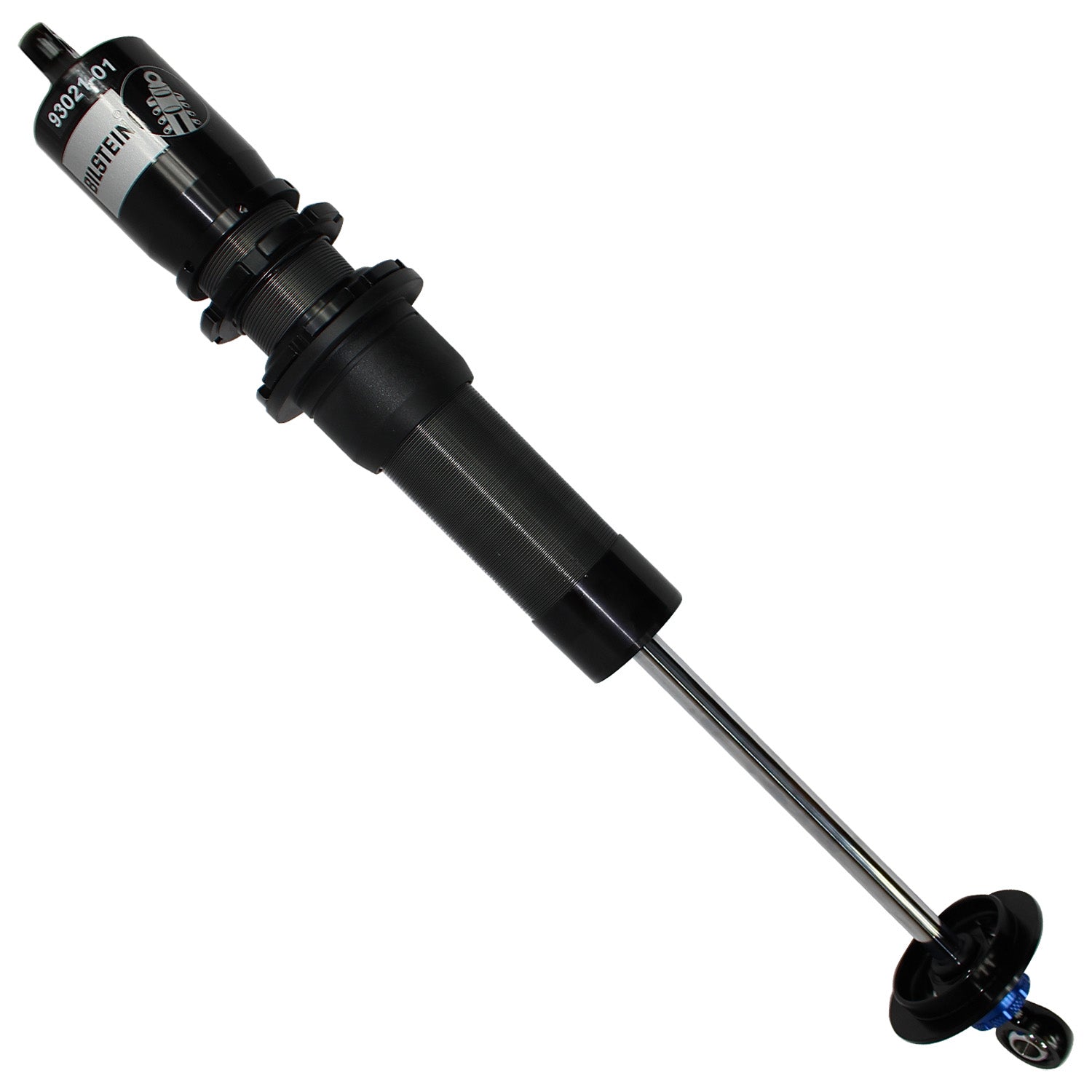

Bilstein XVA Series Shock Absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These Shock Absorbers are available in non-single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series Shock Absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
Note: Product Images may not represent the actual Sku
Standard Features
- 46mm extruded aluminum threaded body improves durability and heat dissipation
- Dual-zone gas bulb decreases gas pressure while increasing grip levels
- Optimized floating piston improves driver feel and response
- Single Adjustable - Rebound
Specifications
| Part Number | 33-344171 |
| Part Name | Shock Absorber |
| UPC | 651860923062 |
| Adjustment Type | 1-Way |
| Body Design | Threaded Body Large Bulb Screw Top (Coilover) |
| Body Diameter (ID) | 46 mm |
| Body Material | Aluminum |
| Boot Included | No |
| Collapsed Length | 13.10 in. |
| Collapsed Length | 332.7 mm |
| Damping Adjustable | Yes |
| Extended Length | 18.66 in. |
| Extended Length | 474.0 mm |
| Finish | Clear Anodized |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Piston Type | Sold Separately |
| Segment | Motorsports |
| Series | XVA Series |
| Spring Seat Included | Yes |
| Upper Mount Type | 1/2 in. Heim |
| Valving Identifier | Dry Kit (No Valving) |
| Quantity | Sold Individually |
