Bilstein Universal Motorsports 46mm Monotube Suspension Strut Assembly - 17.72 in. Extended Length

Name: Bilstein Universal Motorsports 46mm Monotube Suspension Strut Assembly - 17.72 in. Extended Length
Brand: Bilstein
Price: 549.0 USD
Availability: InStock

$549.00

Out of Stock

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description
Specifications

Description

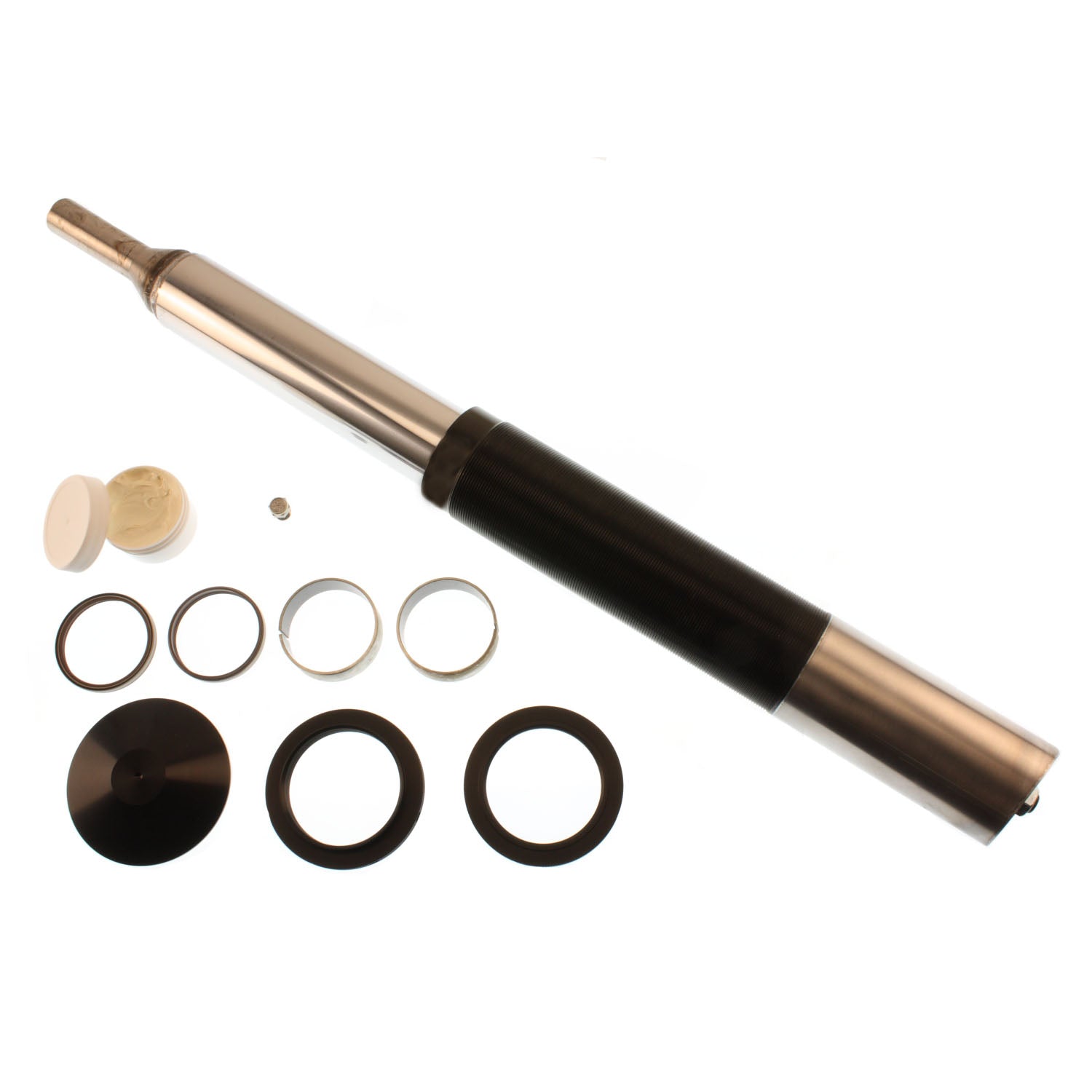

Bilstein Universal Motorsports Struts are massive 46mm I.D. inverted monotube Dampers intended to be adapted to MacPherson strut style suspension systems. The strut insert is provided with a blank upper-stem that can be machined down to fit a specific top mount or camber/caster plate variations. Each strut is supplied with a matched external housing that permits the builder to fabricate weld tabs for mounting the unit to a vehicle's lower steering knuckle. Additionally, the threaded housing allows the builder to adjust the ride height of the vehicle to ensure the proper ride height is met in order for the vehicle to perform at the highest level possible.

Standard Features

Large 46mm linear piston with precise valving profiles
50mm OD, hard-chromed strut insert tube for strength
14mm piston rod for added side-load support

Specifications

Part Number	35-212799
Part Name	Strut Assembly
UPC	651860681962
Boot Included	No
Collapsed Length	11.89 in.
Collapsed Length	302.0 mm
Extended Length	17.72 in.
Extended Length	450.0 mm
Finish	Olive-Drab Zinc
Internal Design	Monotube
Lower Mount Type	Housing
Rebound @ 0.52m/s	3780
Segment	Motorsports
Series	Universal Motorsports Strut
Spring Seat Included	Yes
Upper Mount Type	Stem
