Product Details

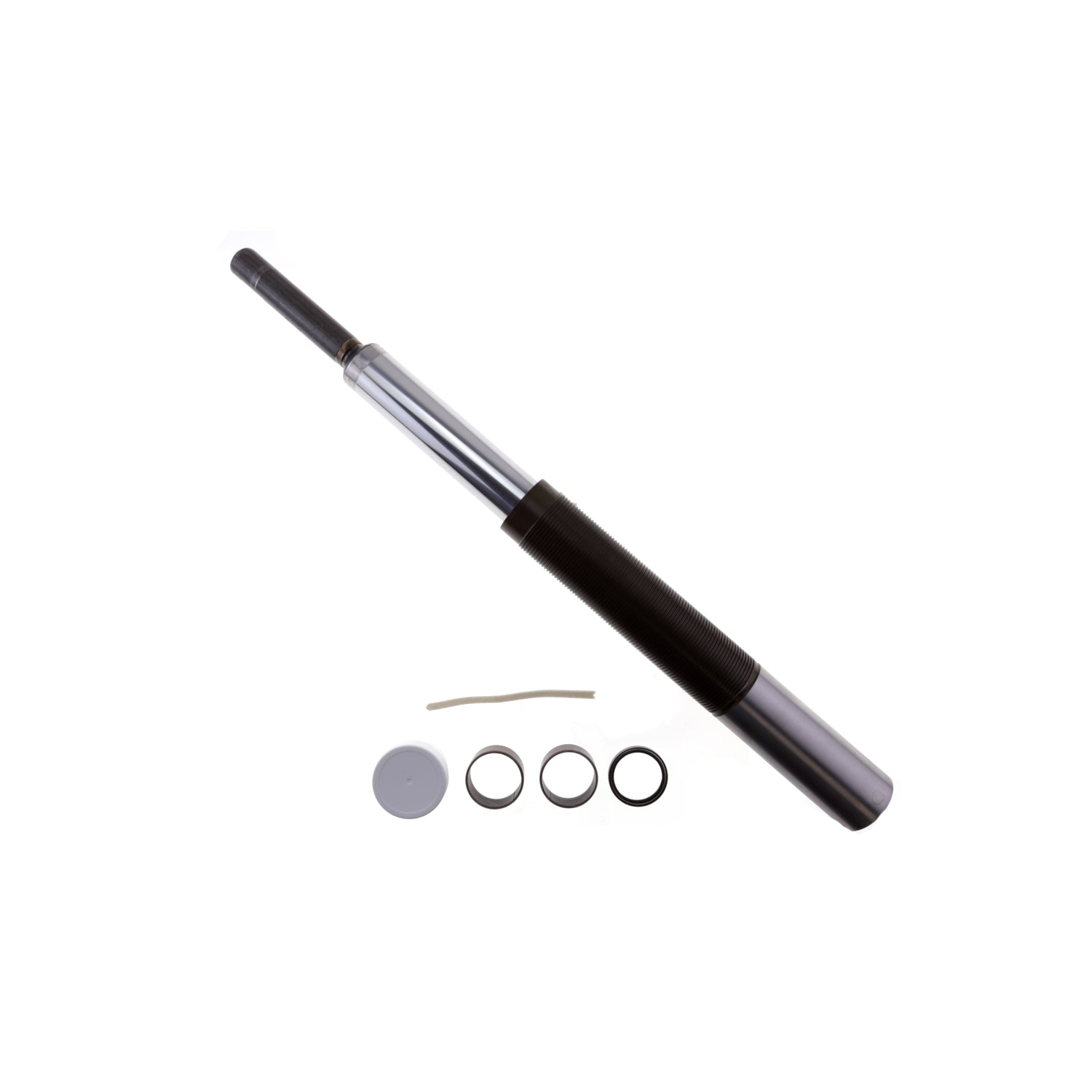

Bilstein Universal Motorsports Struts feature inverted 36mm monotube Dampers that are ideal for a range of MacPherson strut style motorsports applications. The semi-finished upper mounting stem and body housing allows builders to fabricate to their unique mounting needs. The Universal Motorsports Struts are ideal for racers demanding a superior performing and versatile strut design beyond what traditional OE-style designs can provide.
Standard Features
- Large 46mm linear piston with precise valving profiles
- 50mm OD, hard-chromed strut insert tube for strength
- 14mm piston rod for added side-load support
Specifications
| Part Number | 35-223115 |
| Part Name | Strut Assembly |
| UPC | 651860705484 |
| Body Design | Threaded Body (Coilover) |
| Body Diameter (ID) | 36 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 13.29 in. |
| Collapsed Length | 337.6 mm |
| Compression @ 0.52m/s | 960 |
| Damping Adjustable | No |
| Extended Length | 19.86 in. |
| Extended Length | 504.4 mm |
| Finish | Olive-Drab Zinc |
| Internal Design | Monotube |
| Lower Mount Type | Housing |
| Piston Type | Digressive |
| Rebound @ 0.52m/s | 1735 |
| Segment | Motorsports |
| Series | Universal Motorsports Strut |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Valving Identifier | 180/100 |
| Quantity | Sold Individually |
