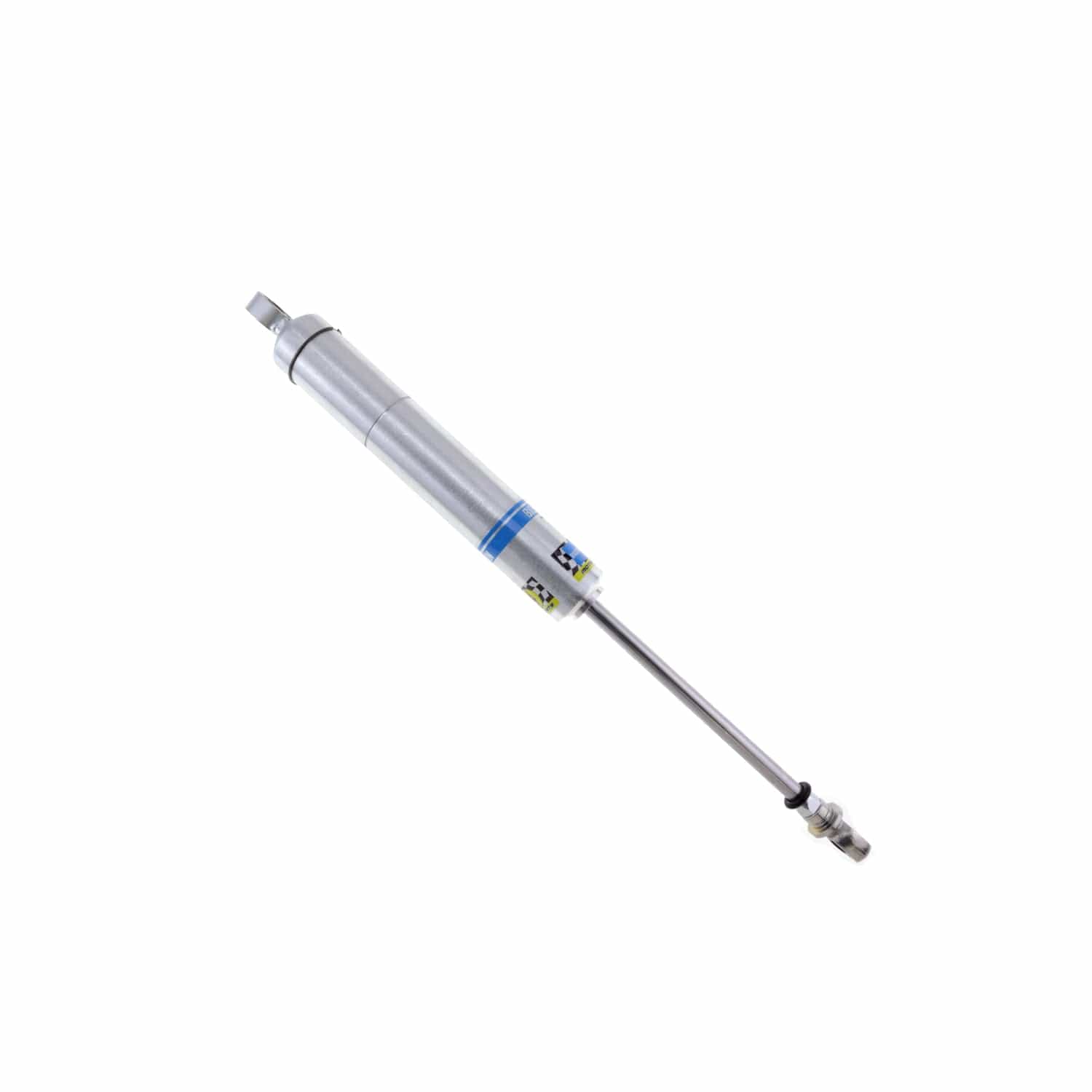

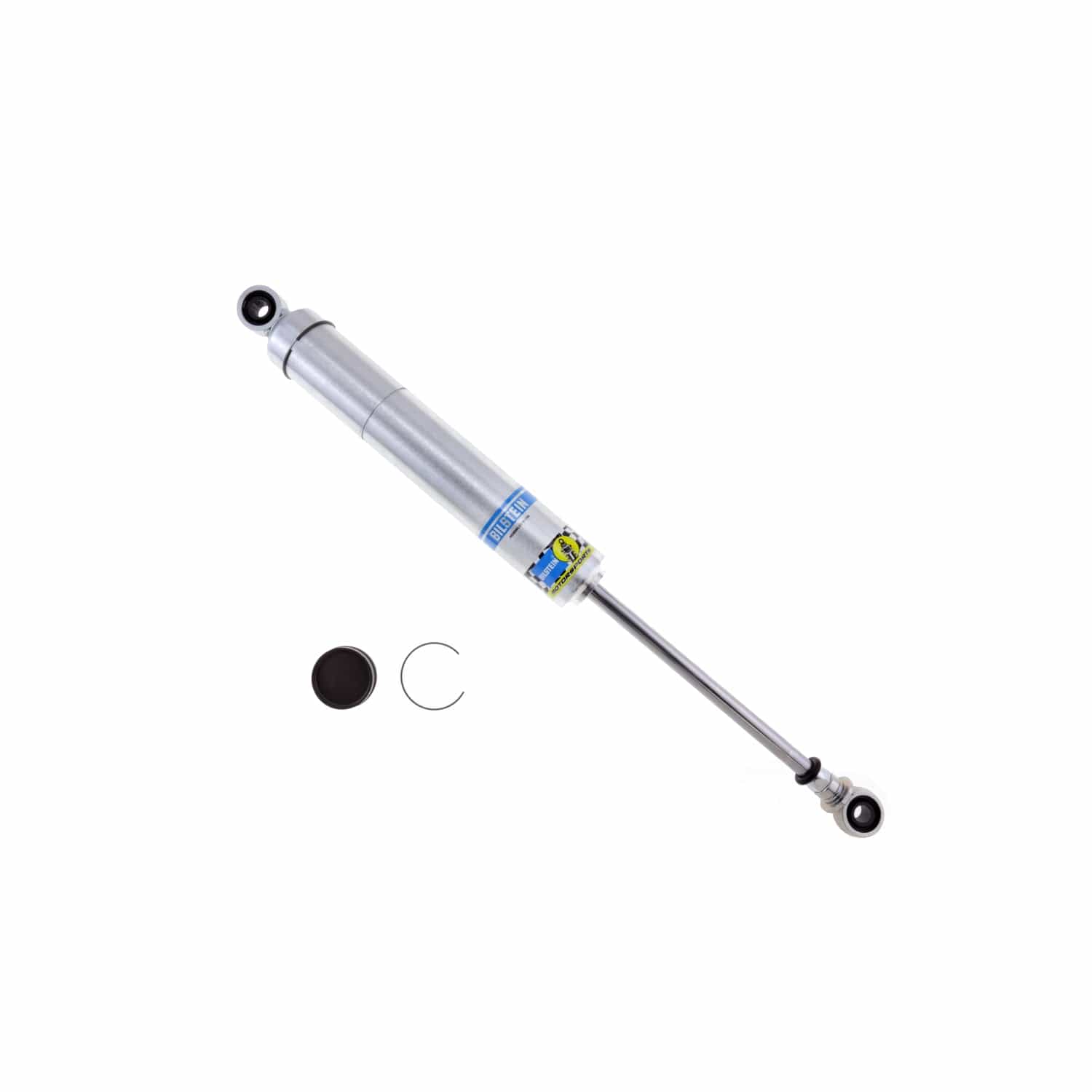

Bilstein SZ Series Monotube Suspension Shock Absorber - 14.25 in. Collapsed

Name: Bilstein SZ Series Monotube Suspension Shock Absorber - 14.25 in. Collapsed
Brand: Bilstein
Price: 144.72 USD
Availability: InStock

$144.72

Out of Stock

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description
Specifications

Description

Bilstein SZ Series Shock Absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These Shock Absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled with no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series Shock Absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Standard Features

Plated steel body for durability and superior heat dissipation
46mm piston design for maximum damping control
Standard 1/2 graphite heims

Specifications

Part Number	33-243450
Part Name	Shock Absorber
UPC	651860750330
Body Design	Smooth Body (Non-Coilover)
Body Diameter (ID)	46 mm
Body Material	Steel
Boot Included	No
Collapsed Length	14.25 in.
Collapsed Length	362.0 mm
Damping Adjustable	No
Extended Length	22.20 in.
Extended Length	564.0 mm
Finish	Zinc Plated
Internal Design	Monotube
Lower Mount Type	1/2 in. Heim
Piston Type	Digressive
Segment	Motorsports
Series	SZ Series
Spring Seat Included	No
Upper Mount Type	1/2 in. Heim
Valving Identifier	Digressive Dry Kit (No Valving)
