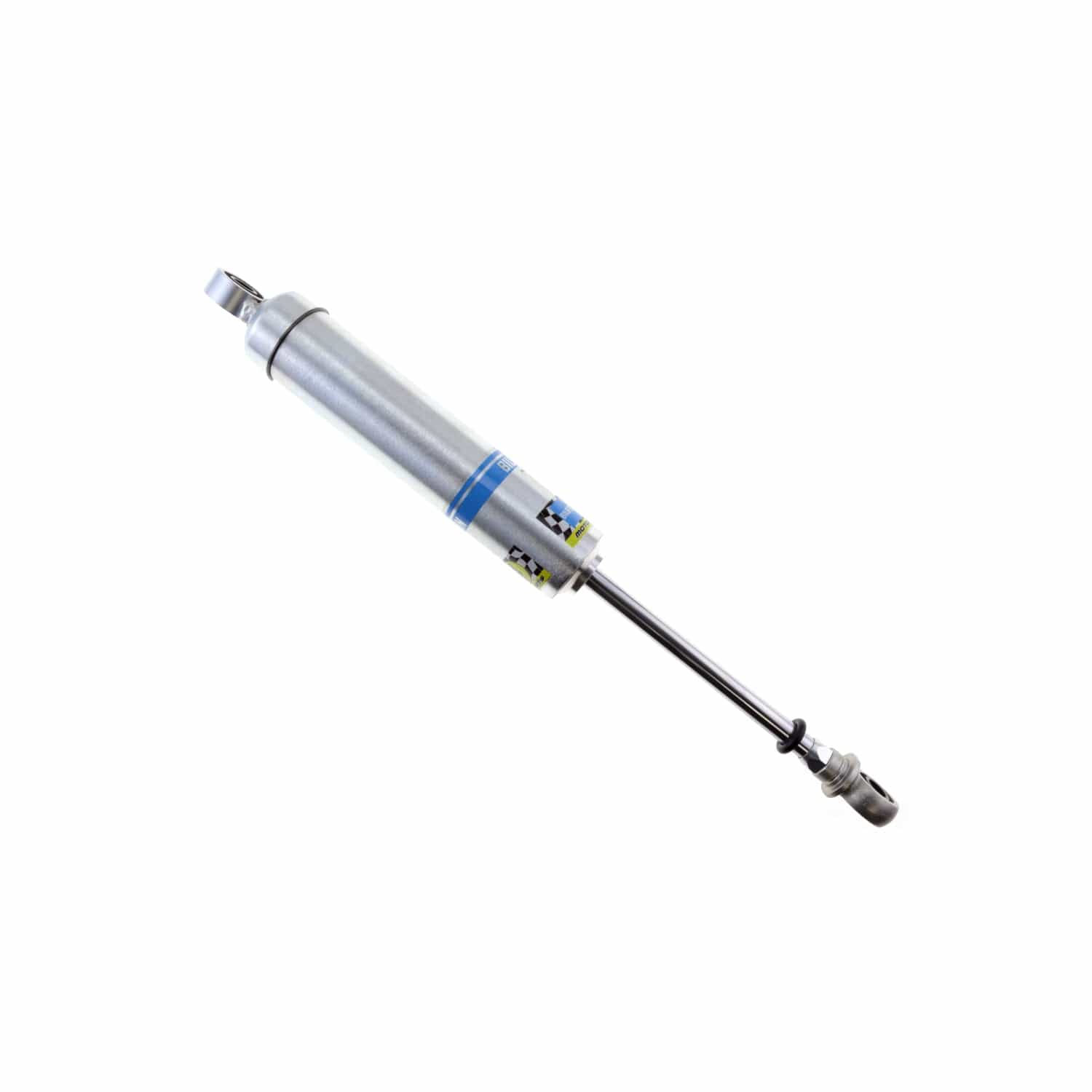

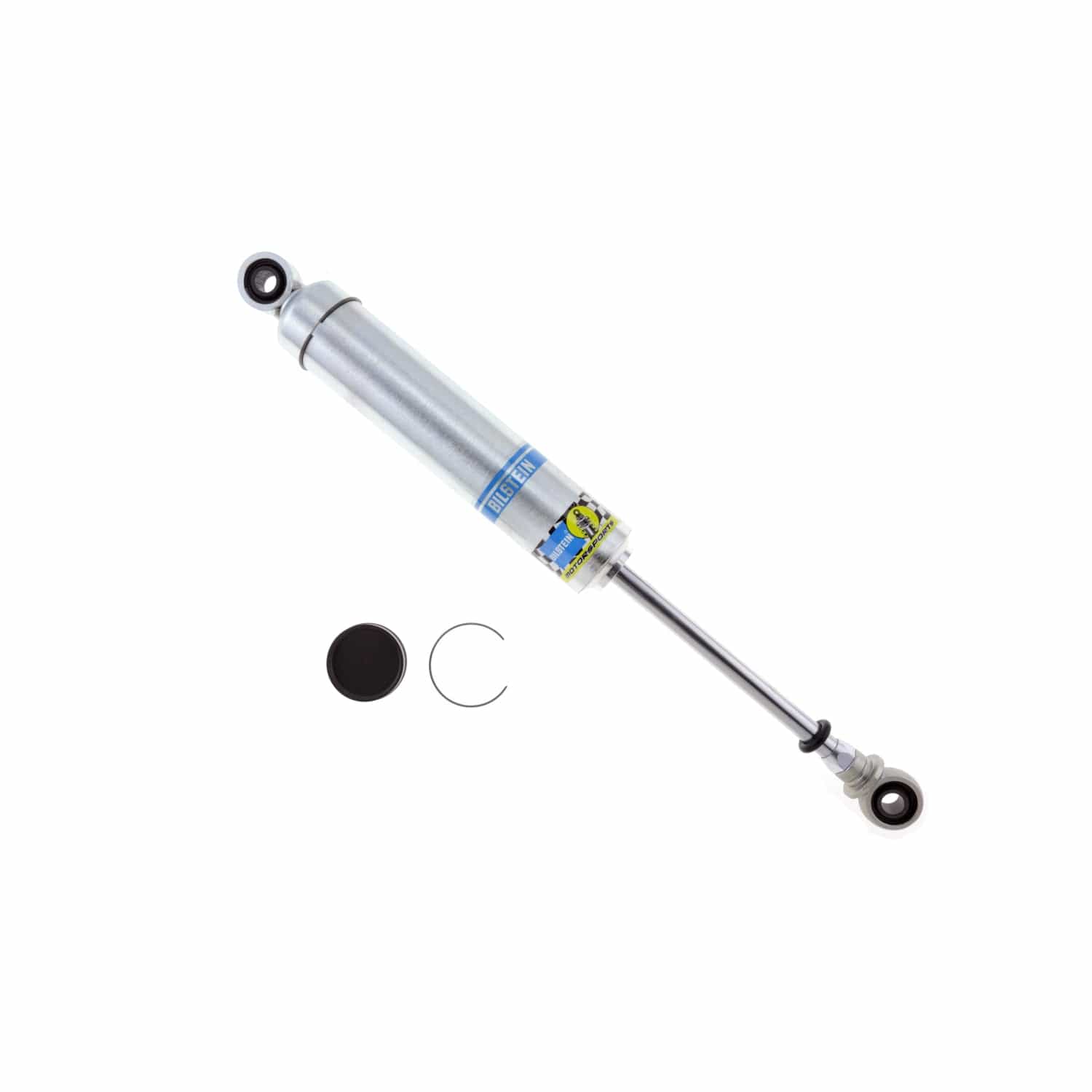

Bilstein SZ Series Monotube Suspension Shock Absorber - 12.05 in. Collapsed 33-243436
Bilstein SZ Series Monotube Suspension Shock Absorber - 12.05 in. Collapsed 33-243436
Bilstein SZ Series Monotube Suspension Shock Absorber - 12.05 in. Collapsed 33-243436

Bilstein

|

SKU: 33-243436

Bilstein SZ Series Monotube Suspension Shock Absorber - 12.05 in. Collapsed

$144.72
Ask a question
Out of stock

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In-Stock: 1 business day
  • Out of Stock: 3-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

Lifetime Manufacturer Warranty

Most of the BILSTEIN products available in the North American aftermarket are backed by our LIMITED LIFETIME WARRANTY for as long as you own your BILSTEIN products, while certain product categories are backed by industry leading warranties ranging from 90 days to two (2) years. Please consult our BILSTEIN Warranty Promise to see which warranty is applicable to your product.

More Information

Product Details

The Bilstein SZ Series shock absorber is sold for custom and motorsport builds, here at 12.05 in. collapsed. There is no vehicle lookup here: you select on dimension, mounting, and the damping you want.

The monotube design is what separates these. A single high-pressure gas chamber keeps the oil from aerating, so damping stays consistent as the unit heats up instead of fading away.

Features

  • Plated steel body for durability and superior heat dissipation
  • 46mm piston design for maximum damping control
  • Standard 1/2 graphite heims
Specifications
Part Number 33-243436
Part Name Shock Absorber
UPC 651860750316
Body Design Smooth Body (Non-Coilover)
Body Diameter (ID) 46 mm
Body Material Steel
Boot Included No
Collapsed Length 12.05 in. (306.0 mm)
Damping Adjustable No
Extended Length 18.11 in. (460.0 mm)
Finish Zinc Plated
Internal Design Monotube
Lower Mount Type 1/2 in. Heim
Piston Type Digressive
Segment Motorsports
Series SZ Series
Spring Seat Included No
Upper Mount Type 1/2 in. Heim
Valving Identifier Digressive Dry Kit (No Valving)
Quantity Sold Individually
