Product Details

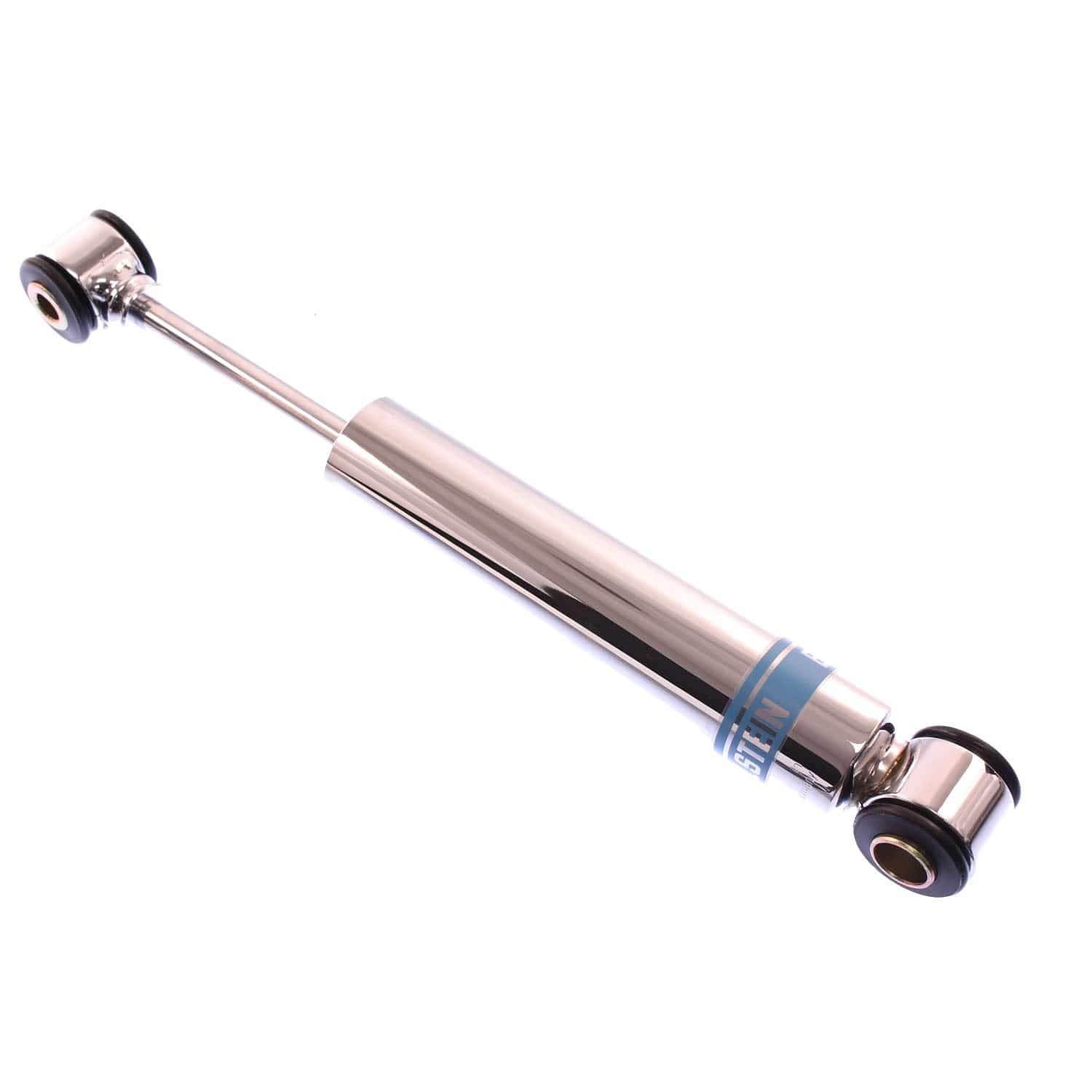

The Bilstein Bilstein shock absorber is specified by dimension rather than by vehicle, here at 9.88 in. collapsed. It is the part you reach for when the build does not match a catalog application and you need a damper sized to the car you actually have.
The monotube design is what separates these. A single high-pressure gas chamber keeps the oil from aerating, so damping stays consistent as the unit heats up instead of fading away.
Features
- Designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup
- SS4 Series Shock Absorbers feature a 36mm piston, smooth body, 5/8 inch polyurethane bushing mounts and various lengths and valve settings to choose from
- SS4 Series Shock Absorbers provide a wide range of options to support any custom street rod application need
Specifications
| Part Number | F4-BOA-0000788 |
| Part Name | Shock Absorber |
| UPC | 790832514959 |
| Boot Included | No |
| Collapsed Length | 9.88 in. (251.0 mm) |
| Compression @ 0.52m/s | 695 |
| Extended Length | 14.55 in. (369.5 mm) |
| Finish | Chrome Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 15.9 mm |
| Rebound @ 0.52m/s | 1310 |
| Segment | Motorsports |
| Series | SS4 Series |
| Upper Mount Type | Eye 11.2 mm |
| Quantity | Sold Individually |
