Product Details

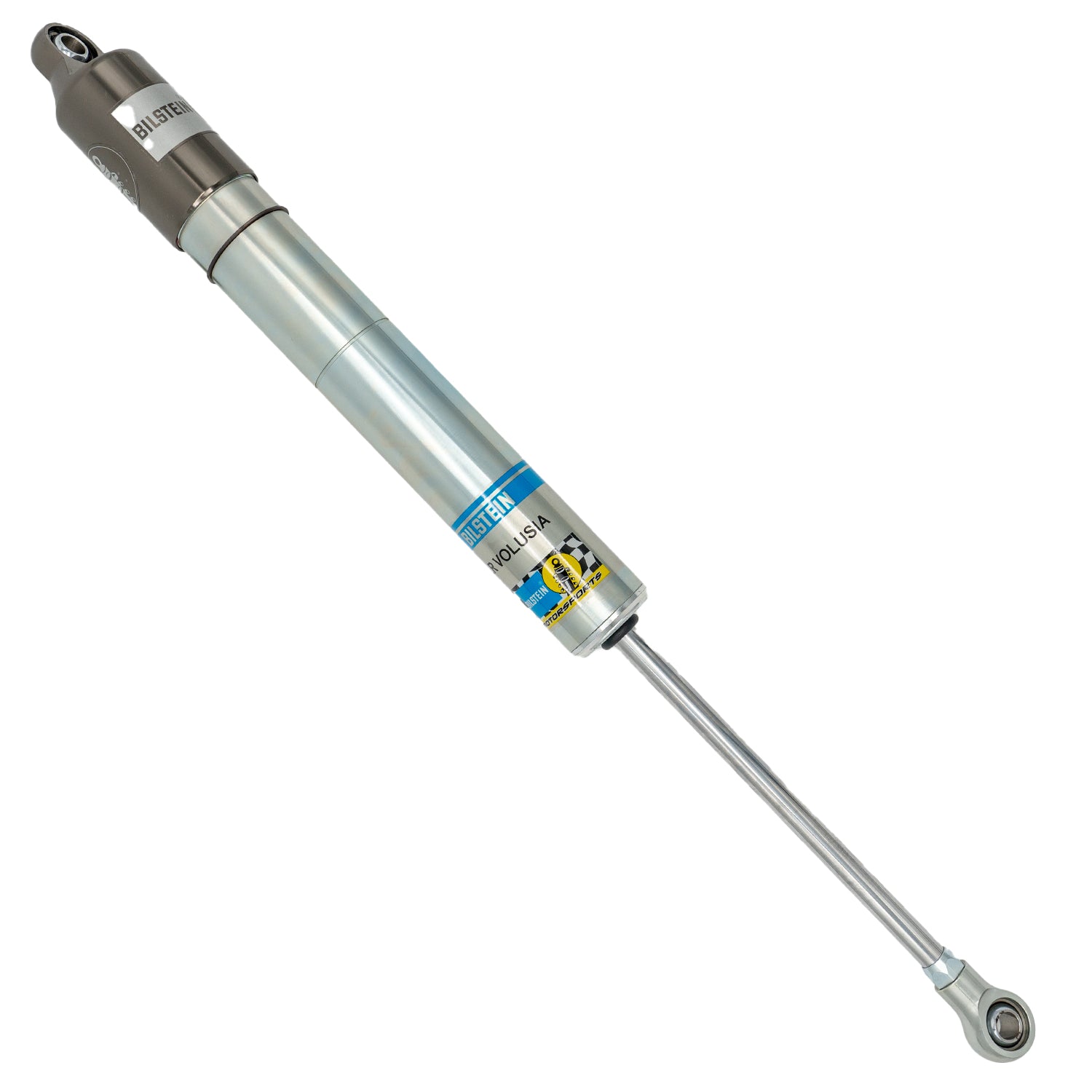

Bilstein SNS2 Series (BV) Shock Absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims. These Shock Absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately). SNS2 Series (BV) Shock Absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable Dampers with extra tuning options through base valve technology.
Note: Product Images may not represent the actual Sku
Standard Features
- Base Valve design delivers ultra low rod pressures and eliminates gas preload
- Modular steel body design allows racer rebuildability
- Comes with IMCA-legal plug assembly installed (SNS2 Series)
Specifications
| Part Number | 33-344195 |
| Part Name | Shock Absorber |
| UPC | 651860924960 |
| Body Design | Smooth Body Screw Top (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Body Material | Steel |
| Collapsed Length | 18.26 in. |
| Collapsed Length | 463.7 mm |
| Damping Adjustable | No |
| Extended Length | 26.04 in. |
| Extended Length | 661.3 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Piston Type | Digressive |
| Segment | Motorsports |
| Series | SNS2 Series (BV) |
| Spring Seat Included | No |
| Upper Mount Type | 1/2 in. Heim |
| Valving Identifier | LR WISSOTA |
| Quantity | Sold Individually |
