Product Details

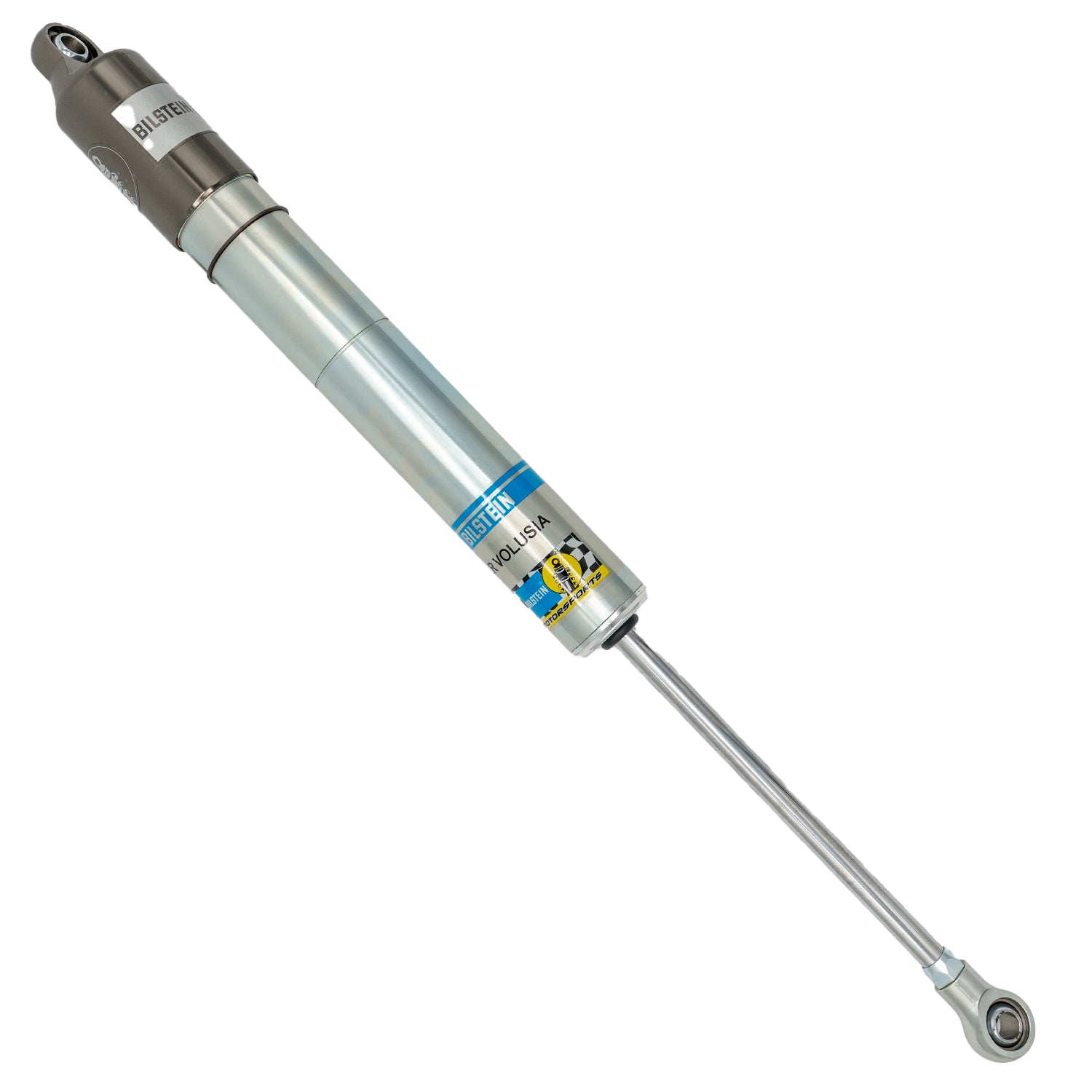

Bilstein SNS2 Series Shock Absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These Shock Absorbers feature a steel body cap and a Schrader valve or fill plug. They are upgradeable to adjustable shafts and can be converted to a coilover (kit sold separately). SNS2 Series Shock Absorbers are ideal for racers whose sanctioning rules require an all steel construction with rebuild capability.
Note: Product Images may not represent the actual Sku
Standard Features
- Plated steel body for durability and superior heat dissipation
- 46mm piston design for maximum damping control
- Standard 1/2 graphite heims
Specifications
| Part Number | 33-321479 |
| Part Name | Shock Absorber |
| UPC | 651860879703 |
| Body Design | Smooth Body Screw Top (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 15.12 in. |
| Collapsed Length | 384.0 mm |
| Damping Adjustable | No |
| Extended Length | 23.90 in. |
| Extended Length | 607.0 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Piston Type | 2/4 (comp/reb) |
| Segment | Motorsports |
| Series | SNS2 Series |
| Spring Seat Included | No |
| Upper Mount Type | 1/2 in. Heim |
| Valving Identifier | Linear |
| Quantity | Sold Individually |
