Product Details

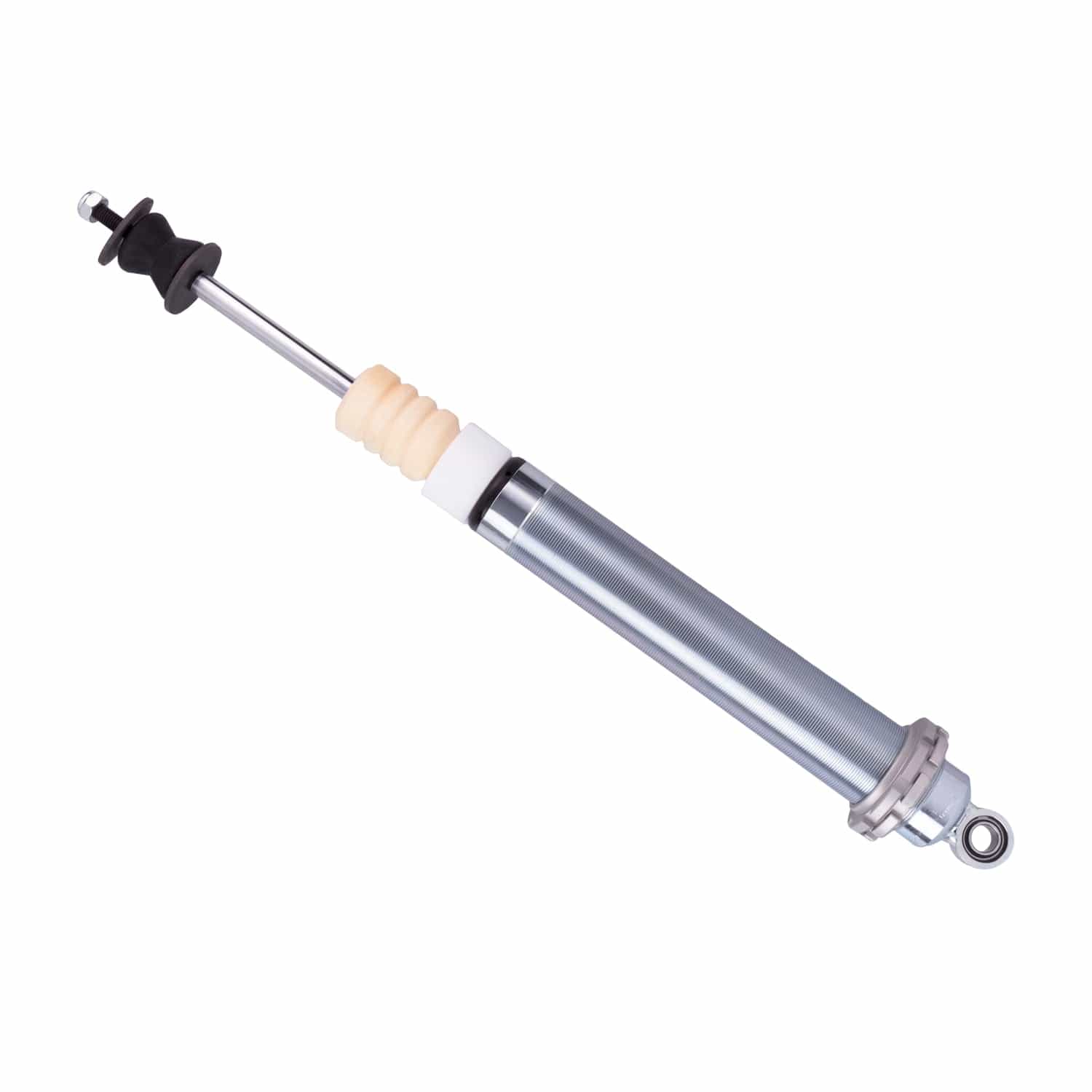

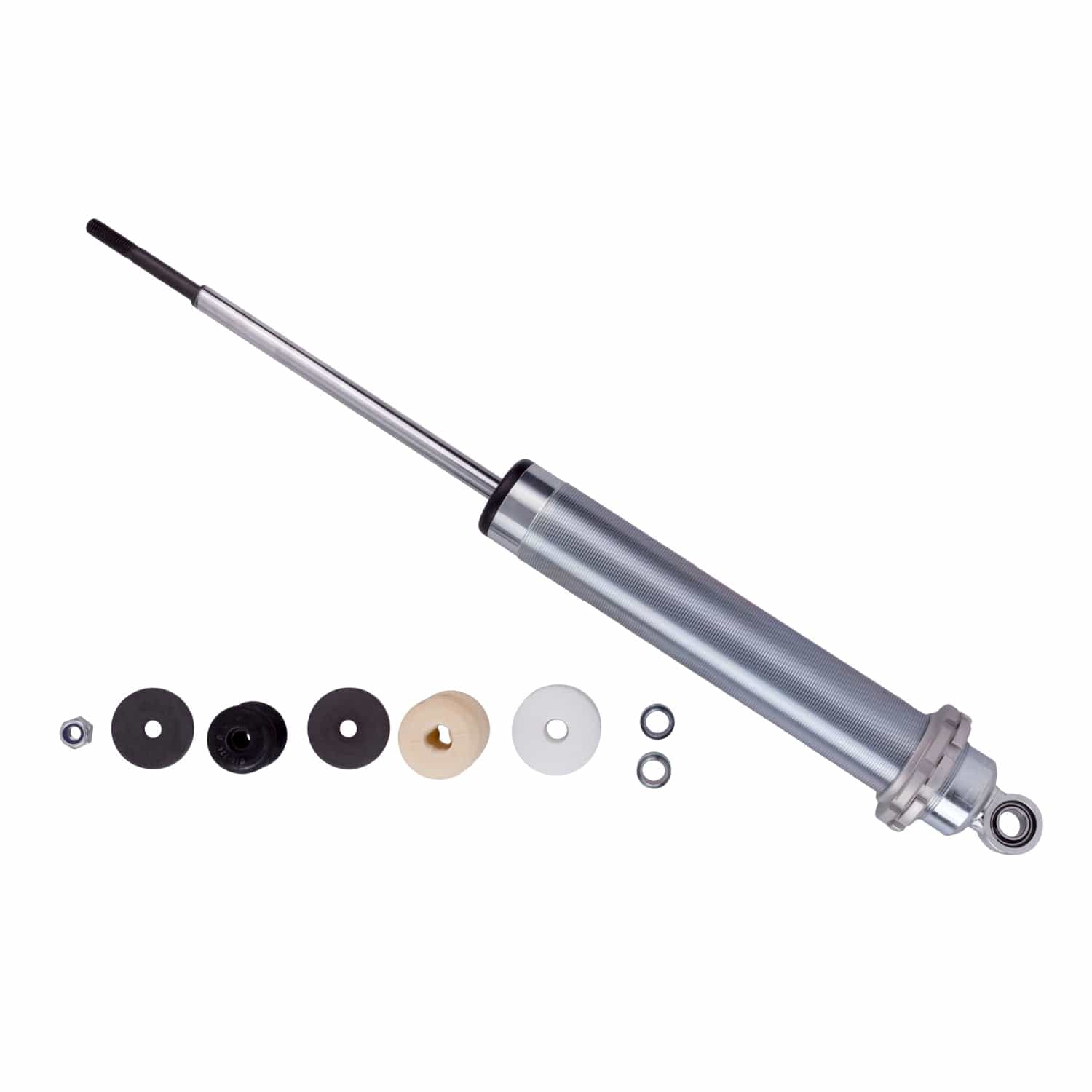

Bilstein Motorsports Dampers for the 1978-1979 Porsche 930 are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports Dampers are ideal for racers requiring a direct fit solution with true race-proven performance.
Standard Features
- Monotube design ensures consistent, fade-free performance in all conditions
- Larger working piston with deflective disc valving
- Available in steel and aluminum bodies
Specifications
| Part Number | 24-617321 |
| Part Name | Shock Absorber |
| Vehicle | 1978-1979 Porsche 930 |
| UPC | 651860753911 |
| Body Design | Threaded Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 17.19 in. |
| Collapsed Length | 436.5 mm |
| Compression @ 0.52m/s | 1875 |
| Damping Adjustable | No |
| Extended Length | 21.57 in. |
| Extended Length | 548.0 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | 15 mm Heim |
| Piston Type | Linear |
| Position | Rear |
| Rebound @ 0.52m/s | 2040 |
| Segment | Motorsports |
| Series | Motorsports |
| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
| Notes | RSR Version 2; Setting: 2400/1800; For use with M14 lower mounting bolt; Requires additional components and racing springs |
Vehicle Fitment
- 1978 Porsche 930
- 1979 Porsche 930
