Product Details

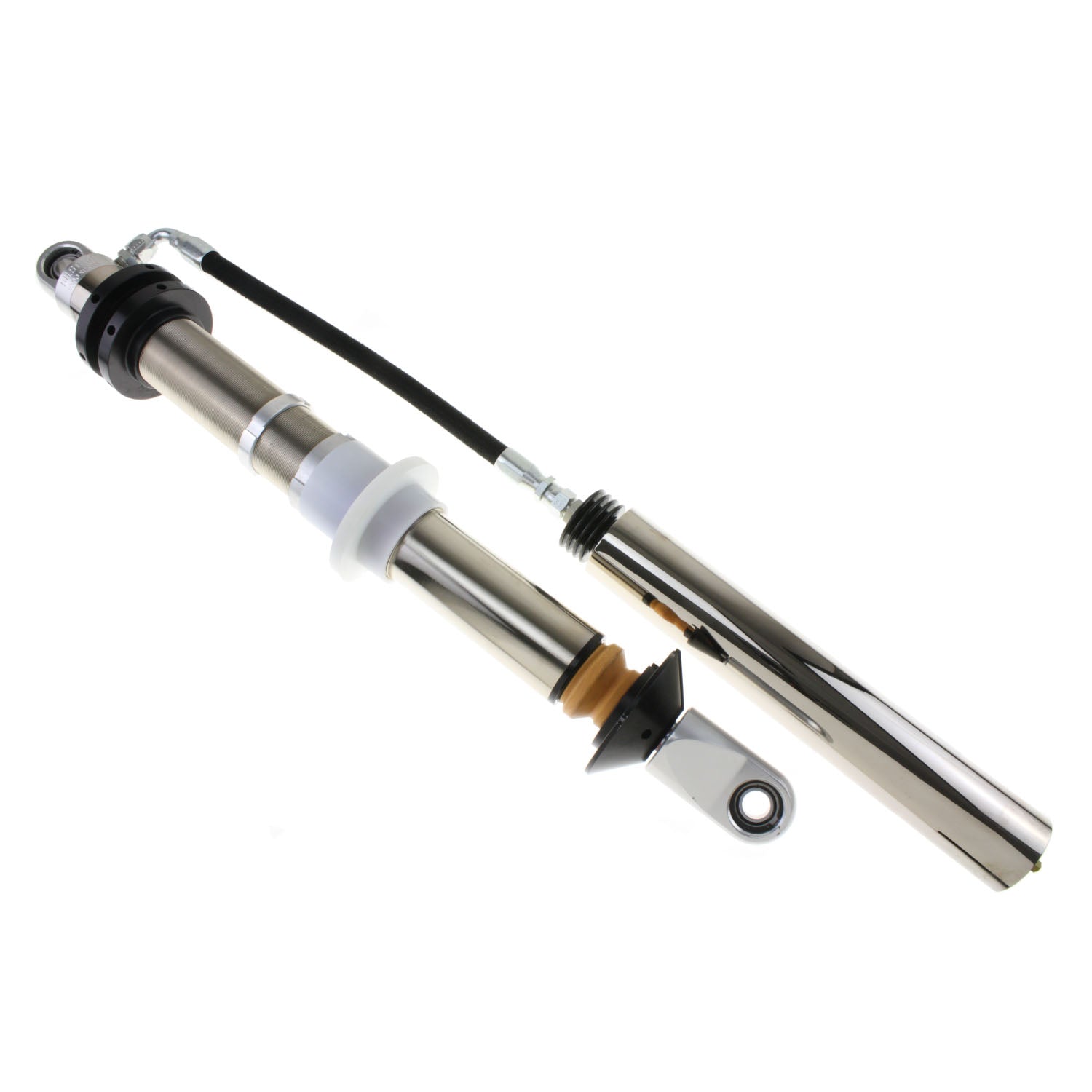

Bilstein M 9300 (Coilover) off-road racing Shock Absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications.
Standard Features
- Available in 46mm and 60mm monotubes
- Threaded body with dual rate coilover hardware
- 5/8" uniball mounts with 1/2" step spacers
Specifications
| Part Number | F4-BOA-0000872 |
| Part Name | Shock Absorber |
| UPC | 790832528338 |
| Body Design | 60mm ID Threaded Body Screw Top (Coilover) |
| Boot Included | No |
| Collapsed Length | 28.68 in. |
| Collapsed Length | 728.5 mm |
| Compression | Custom |
| Extended Length | 1145.0 mm |
| Extended Length | 45.08 in. |
| Finish | Electroless Nickel |
| Internal Design | Monotube |
| Lower Mount Type | 3/4 in. Heim |
| Rebound | Custom |
| Reservoir | Yes |
| Segment | Motorsports |
| Series | M 9300 (Coilover) |
| Spring Seat Included | Yes |
| Upper Mount Type | 3/4 in. Heim |
| Quantity | Sold Individually |
