Product Details

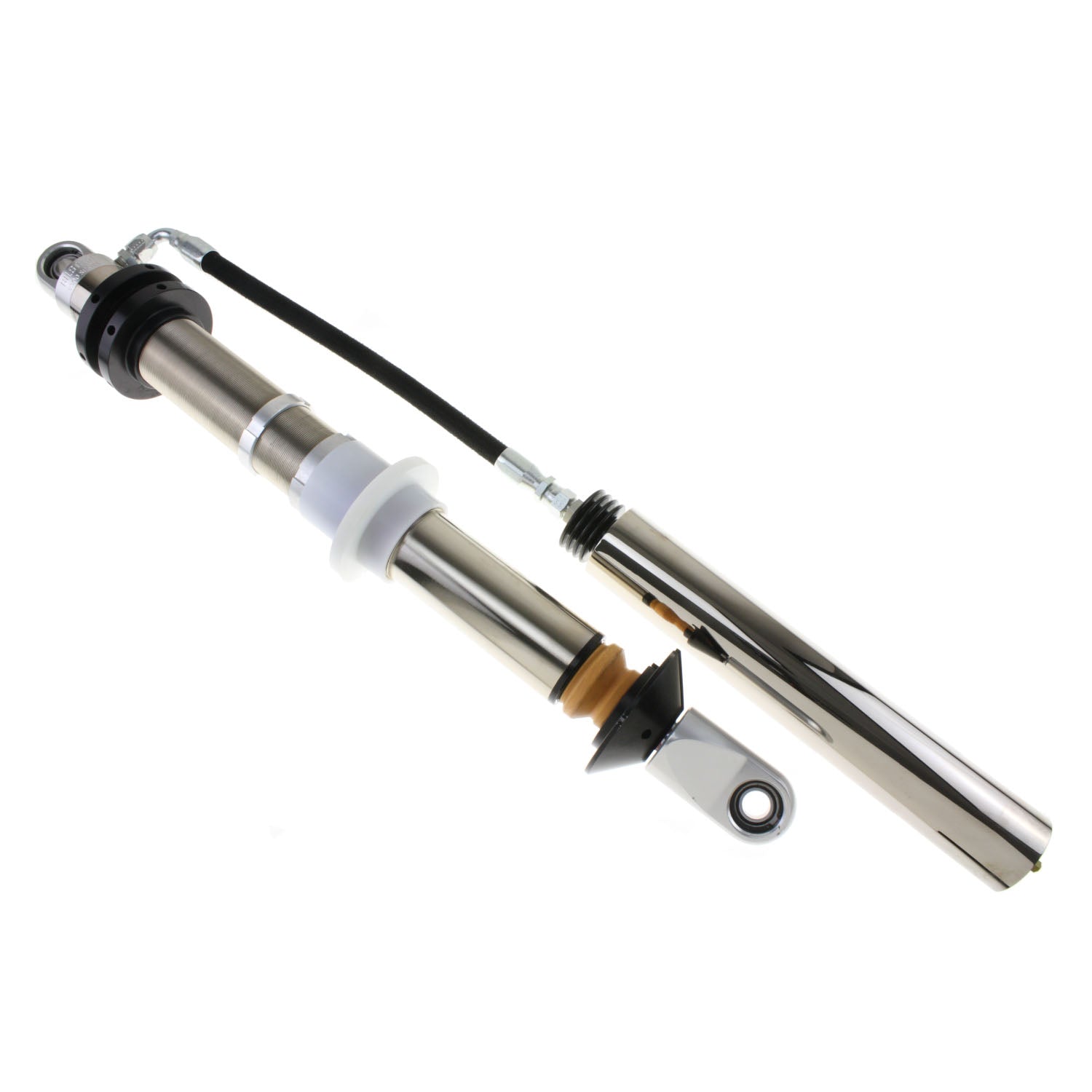

Bilstein M 9300 (Coilover) off-road racing Shock Absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications.
Note: Product Images may not represent the actual Sku
Standard Features
- Available in 46mm and 60mm monotubes
- Threaded body with dual rate coilover hardware
- 5/8" uniball mounts with 1/2" step spacers
Specifications
| Part Number | F4-BOA-0000875 |
| Part Name | Shock Absorber |
| UPC | 790832526716 |
| Body Design | Threaded Body Screw Top (Coilover) |
| Body Diameter (ID) | 60 mm |
| Collapsed Length (Rounded) | 27 in. |
| Collapsed Length | 27.19 in. |
| Collapsed Length | 690.6 mm |
| Compression @ 0.52m/s | Custom |
| Extended Length (Rounded) | 41 in. |
| Extended Length | 1031.0 mm |
| Extended Length | 40.59 in. |
| Finish | Nickel Plated |
| Internal Design | Monotube |
| Lower Mount Type | 3/4 in. Heim |
| Mount Type | Eye-to-Eye |
| Rebound @ 0.52m/s | Custom |
| Reservoir | Yes |
| Segment | Motorsports |
| Series | M 9300 (Coilover) |
| Spring Seat Included | Yes |
| Upper Mount Type | 3/4 in. Heim |
| Quantity | Sold Individually |
