Product Details

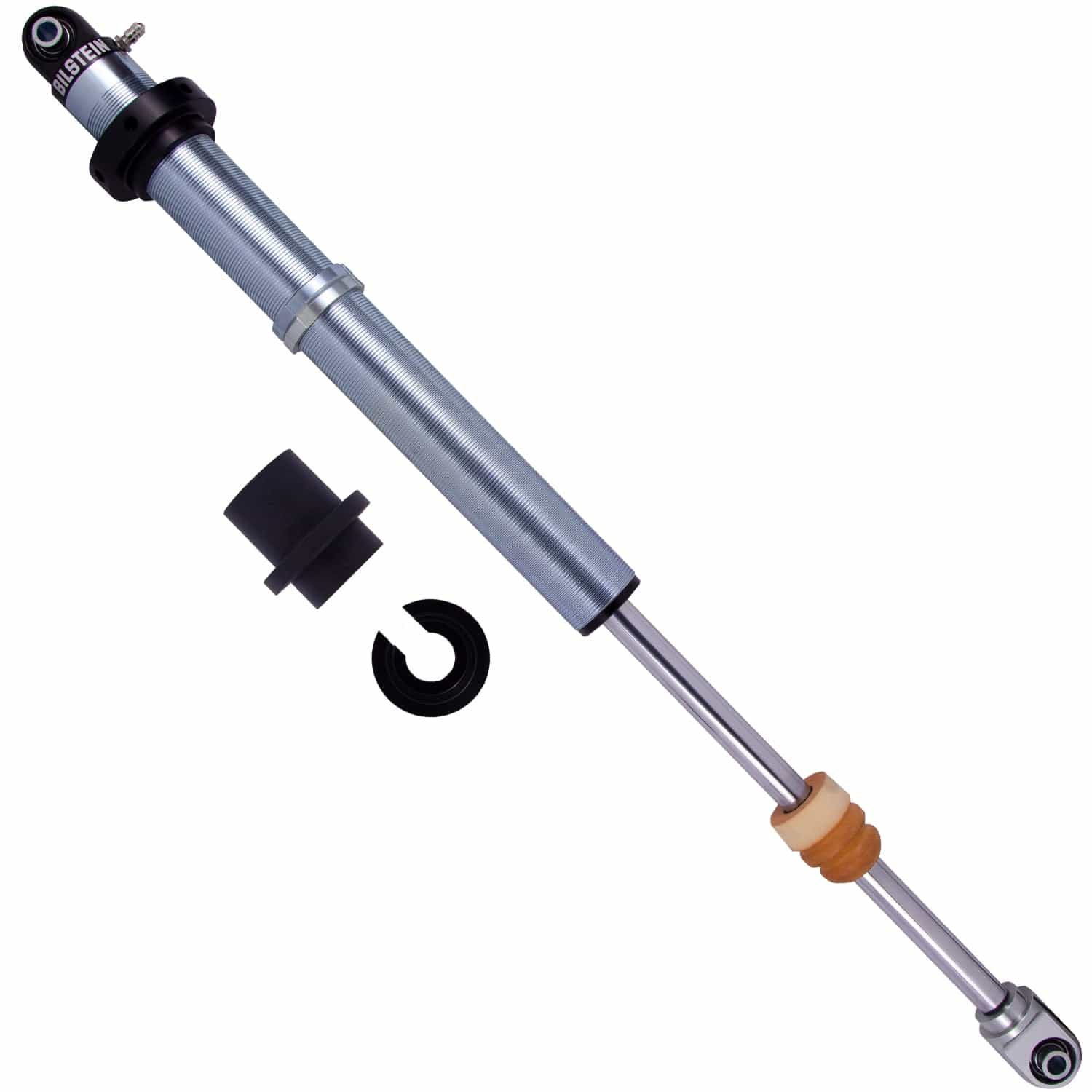

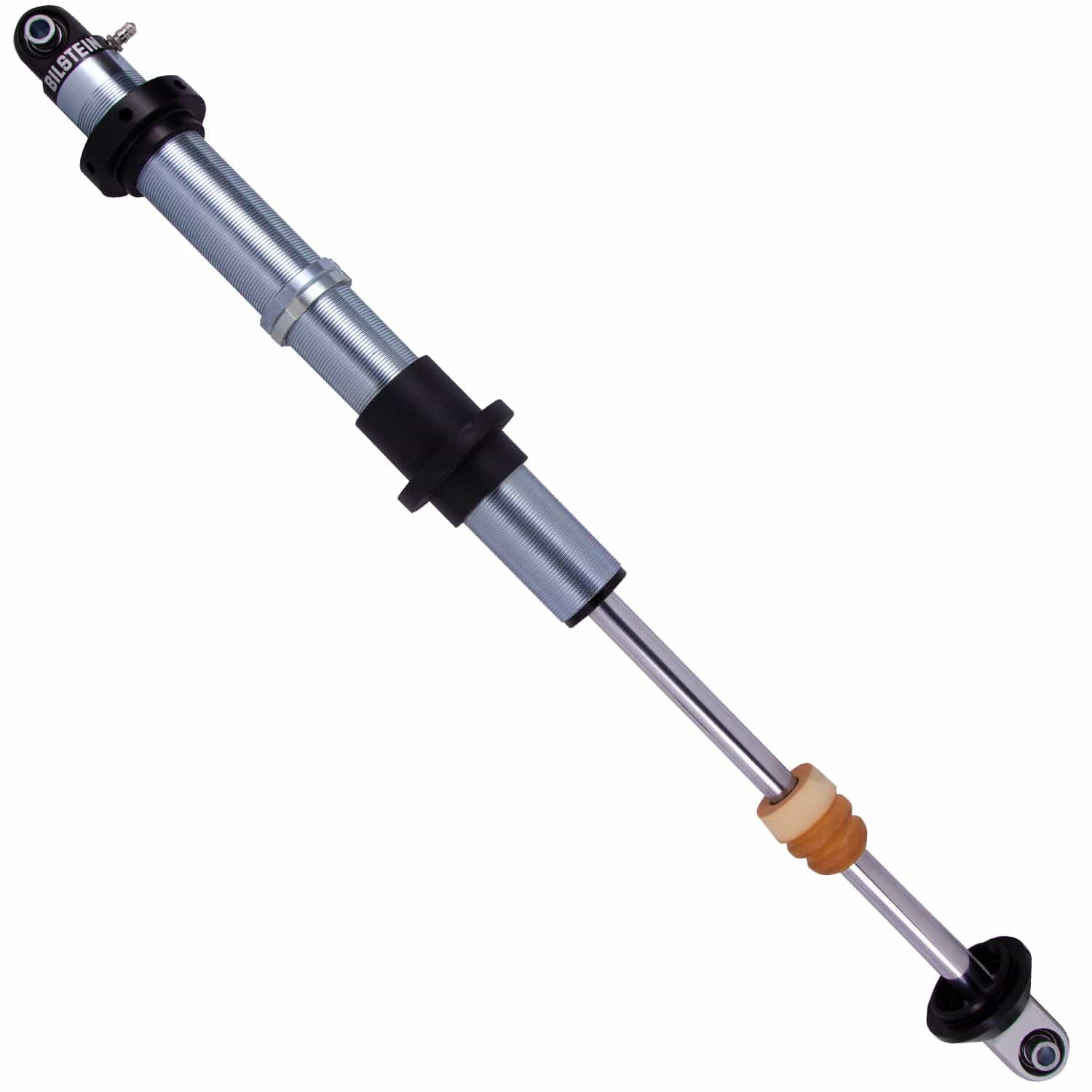

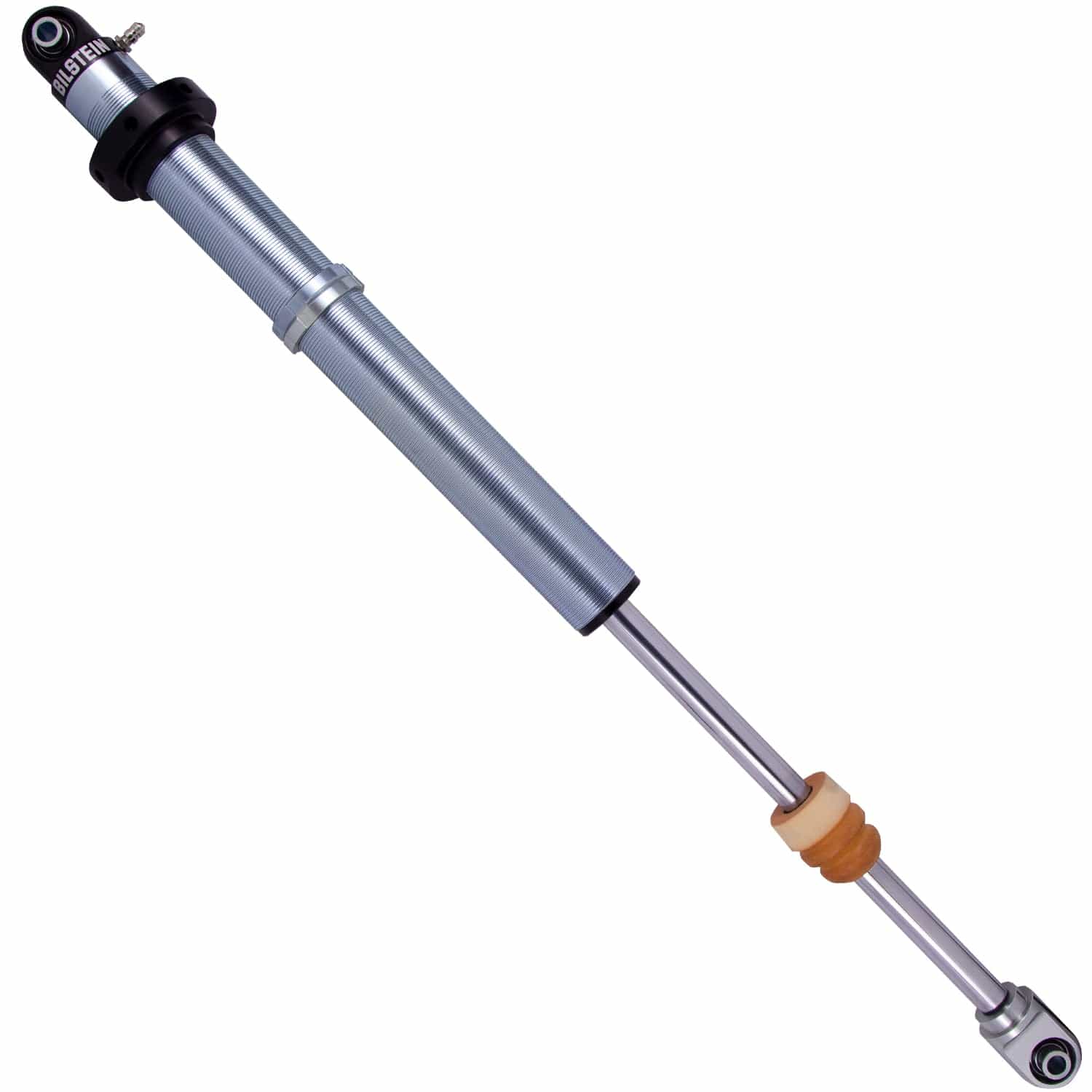

The Bilstein M 9200 shock absorber is sold for custom and motorsport builds, here at 21.50 in. collapsed. There is no vehicle lookup here: you select on dimension, mounting, and the damping you want.
Built in Germany to the standard that made the name, and backed by Bilstein's limited lifetime warranty. Consistency is the point: a damper that behaves the same on the tenth lap as the first.
Features
- 46mm monotube design
- Designed to hold the coils in place
- To be used in conjunction with Bypass shocks
Specifications
| Part Number | 33-243559 |
| Part Name | Shock Absorber |
| UPC | 651860750675 |
| Body Design | Threaded Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Collapsed Length (Rounded) | 22 in. |
| Collapsed Length | 21.50 in. (546.1 mm) |
| Compression @ 0.52m/s | Custom |
| Extended Length (Rounded) | 36 in. |
| Extended Length | 35.50 in. (901.7 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye .5x1.5i n. |
| Mount Type | Eye-to-Eye |
| Rebound @ 0.52m/s | Custom |
| Reservoir | Yes |
| Segment | Motorsports |
| Series | M 9200 (Coil Carrier) |
| Spring Seat Included | No |
| Upper Mount Type | Eye .5x1.5i n. |
| Quantity | Sold Individually |
