Product Details

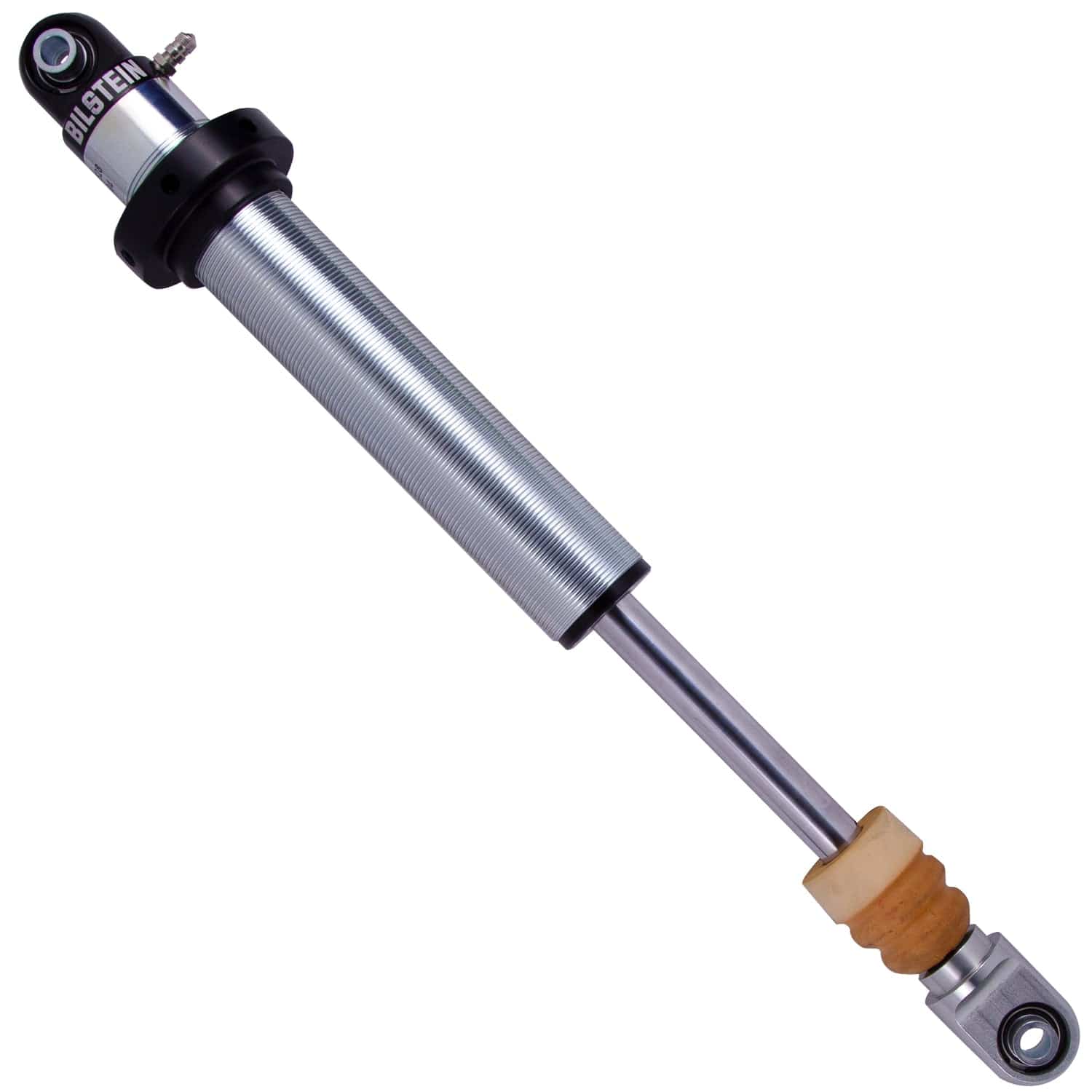

Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
Standard Features
- 46mm monotube design
- Designed to hold the coils in place
- To be used in conjunction with Bypass shocks
Specifications
| Part Number | 33-243528 |
| Part Name | Shock Absorber |
| UPC | 651860750507 |
| Body Design | Threaded Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Collapsed Length (Rounded) | 15 in. |
| Collapsed Length | 15.00 in. |
| Collapsed Length | 381.0 mm |
| Compression @ 0.52m/s | Custom |
| Extended Length (Rounded) | 23 in. |
| Extended Length | 23.00 in. |
| Extended Length | 584.2 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye .5x1.5i n. |
| Mount Type | Eye-to-Eye |
| Rebound @ 0.52m/s | Custom |
| Reservoir | Yes |
| Segment | Motorsports |
| Series | M 9200 (Coil Carrier) |
| Spring Seat Included | No |
| Upper Mount Type | Eye .5x1.5i n. |
| Quantity | Sold Individually |
