Product Details

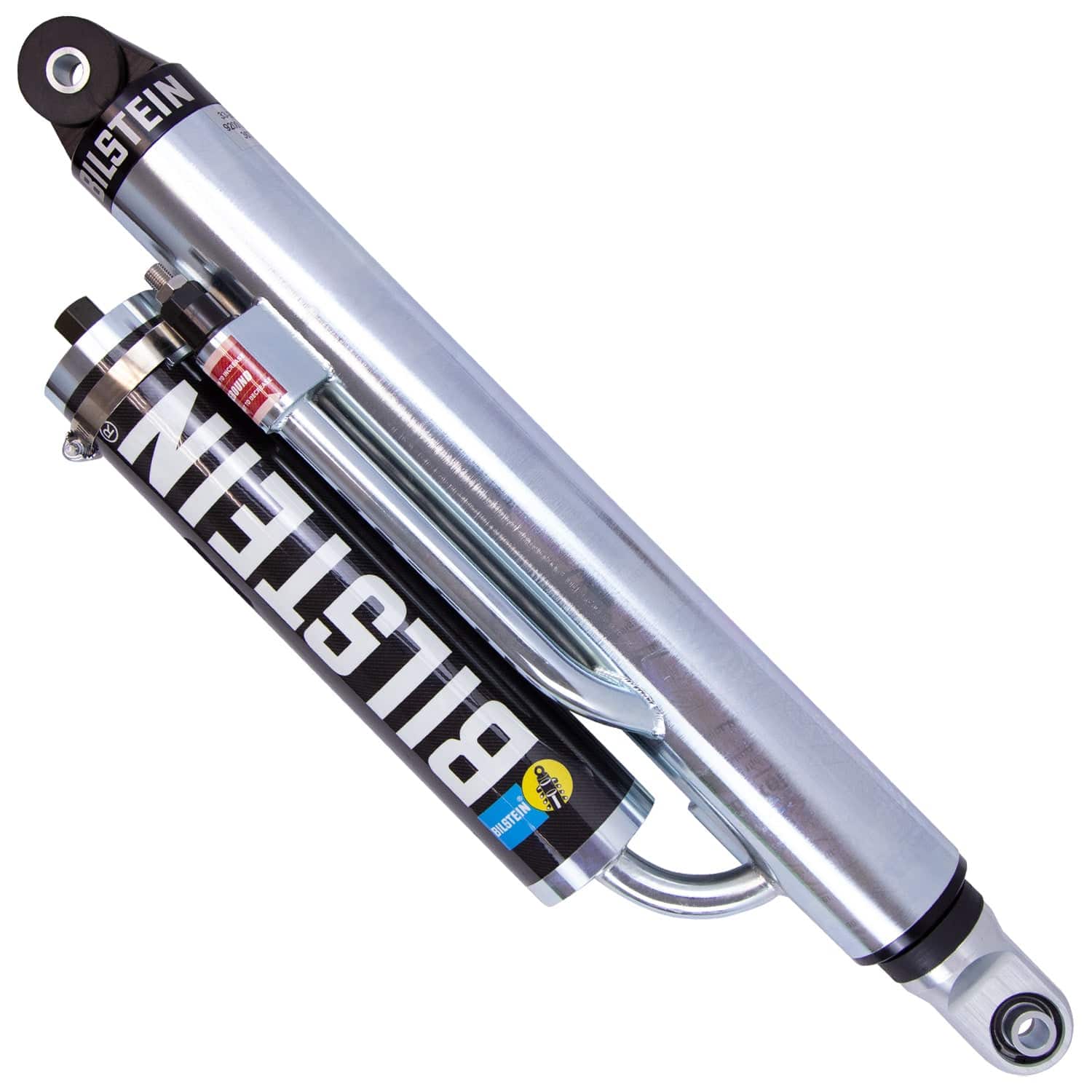

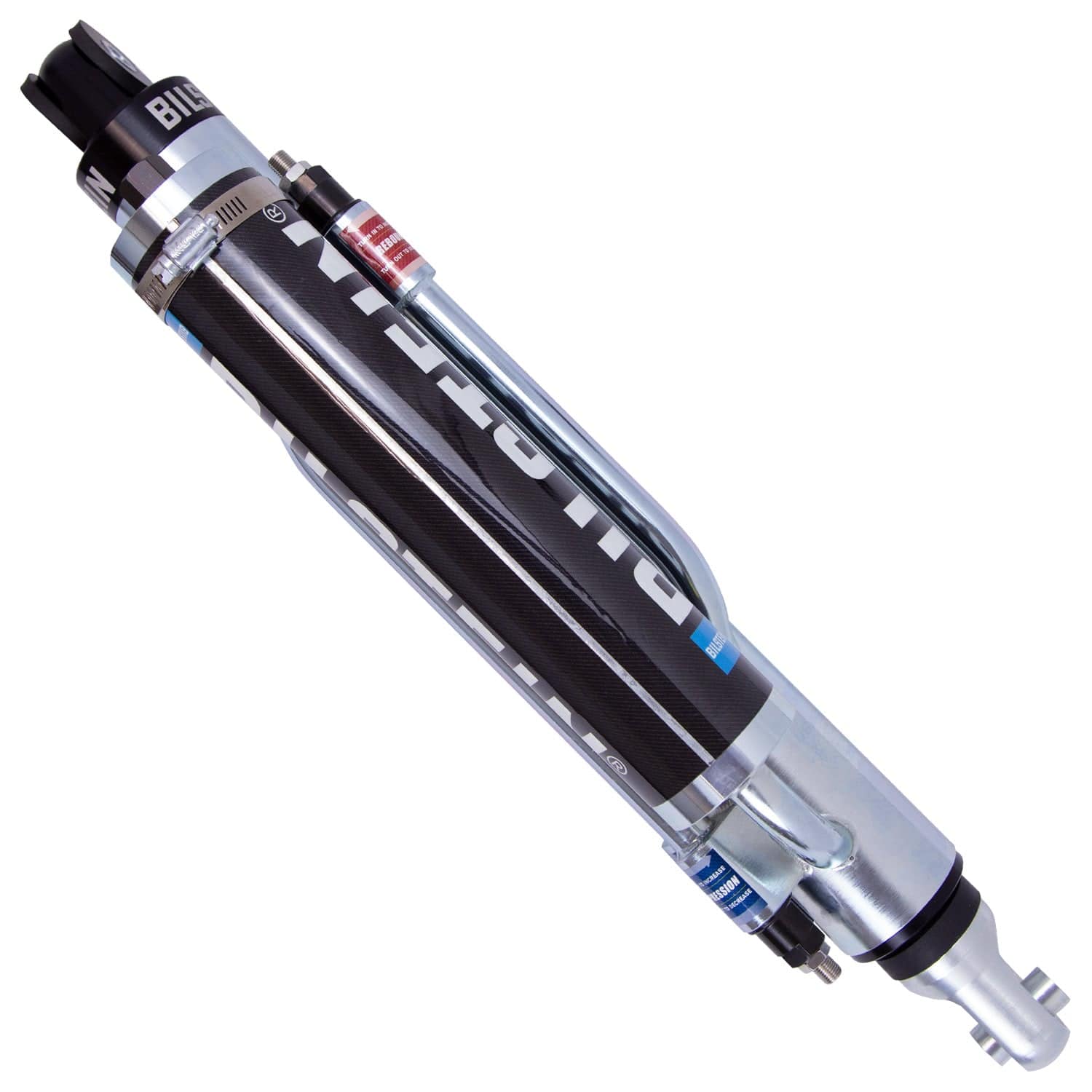

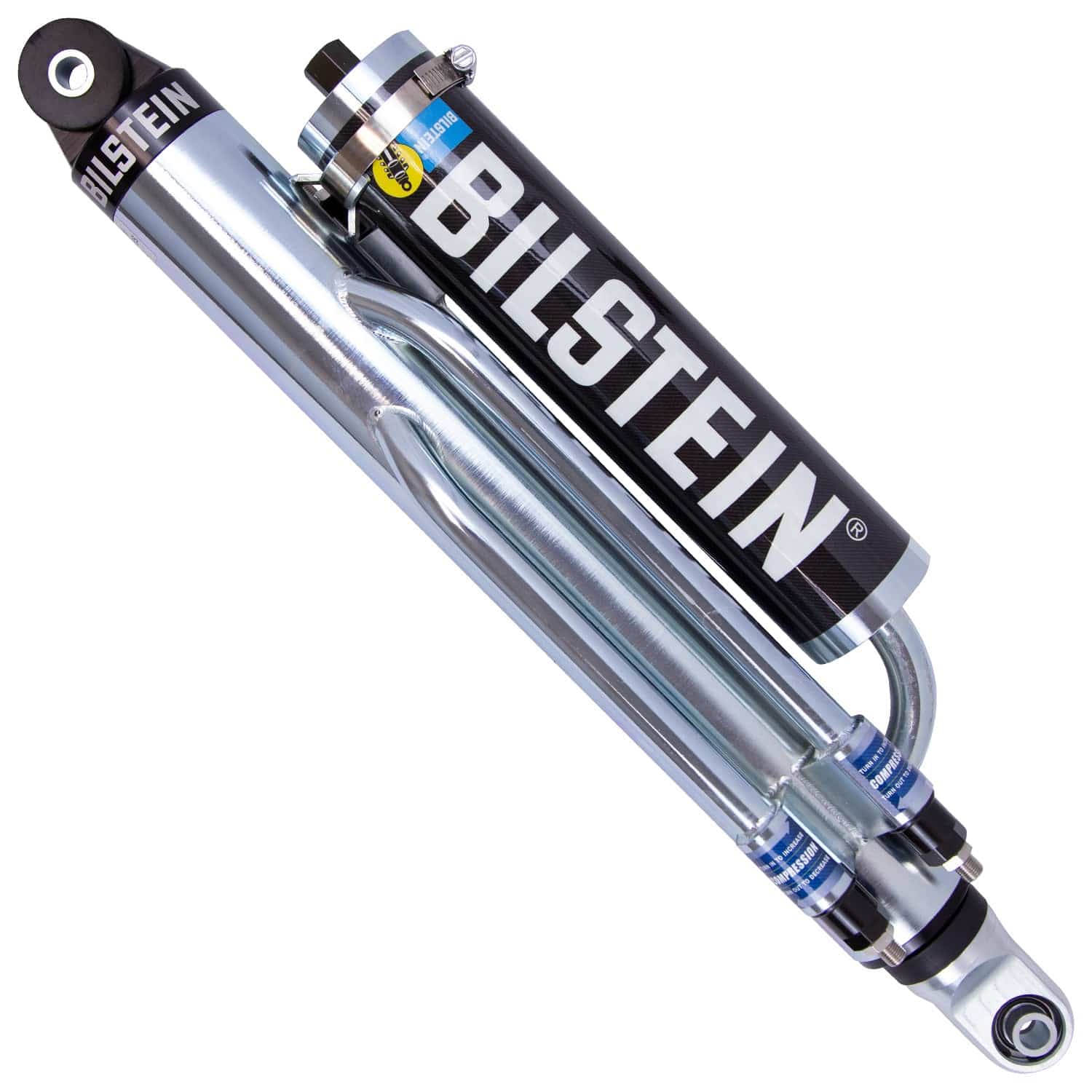

The Bilstein M 9200 shock absorber is sold for custom and motorsport builds, here at 33.50 in. extended. There is no vehicle lookup here: you select on dimension, mounting, and the damping you want.
The monotube design is what separates these. A single high-pressure gas chamber keeps the oil from aerating, so damping stays consistent as the unit heats up instead of fading away.
Features
- Available in 60mm, 70mm and 83mm monotubes
- 4-tube, position sensitive with adjustable rebound and compression
- Multiple stroke lengths available ranging from 8" to 18"
Specifications
| Part Number | 33-269566 |
| Part Name | Shock Absorber |
| UPC | 651860803951 |
| Body Design | 3-Tube Bypass Screw Top |
| Body Diameter (ID) | 60 mm |
| Collapsed Length (Rounded) | 22 in. |
| Collapsed Length | 21.50 in. (546.1 mm) |
| Compression @ 0.52m/s | Custom |
| Extended Length (Rounded) | 34 in. |
| Extended Length | 33.50 in. (850.9 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye .5x1.5i n. |
| Mount Type | Eye-to-Eye |
| Position | Left |
| Rebound @ 0.52m/s | Custom |
| Reservoir | Yes |
| Segment | Motorsports |
| Series | M 9200 (Bypass) |
| Spring Seat Included | No |
| Upper Mount Type | Eye .5x1.5i n. |
| Quantity | Sold Individually |
