Product Details

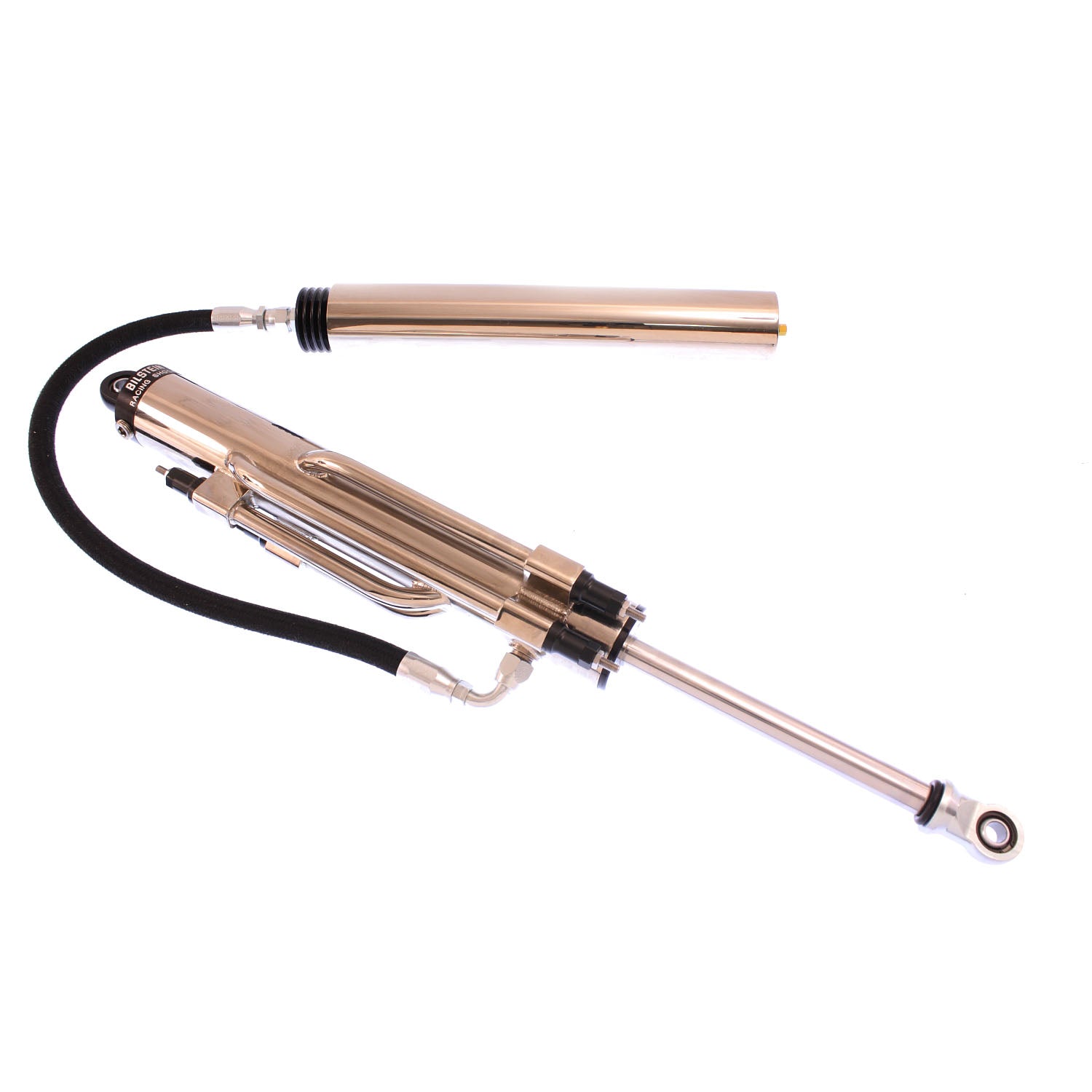

Bilstein M 9100 (Bypass) off-road racing Shock Absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications.
Standard Features
- Filled with technology perfected over 3 decades of off-road dominance
- Monotube gas pressure design maximizes heat dissipation
- Available for lifted truck, custom truck, rock crawling and off-road racing applications
Specifications
| Part Number | B60-9110BYST |
| Part Name | Shock Absorber |
| UPC | 790832513396 |
| Body Design | 4-Tube Bypass Screw Top |
| Body Diameter (ID) | 60 mm |
| Collapsed Length (Rounded) | 20 in. |
| Collapsed Length | 19.73 in. |
| Collapsed Length | 501.1 mm |
| Compression @ 0.52m/s | Custom |
| Extended Length (Rounded) | 30 in. |
| Extended Length | 29.50 in. |
| Extended Length | 749.3 mm |
| Finish | Nickel Plated |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Mount Type | Eye-to-Eye |
| Rebound @ 0.52m/s | Custom |
| Reservoir | Yes |
| Segment | Motorsports |
| Series | M 9100 (Bypass) |
| Spring Seat Included | No |
| Upper Mount Type | 1/2 in. Heim |
| Quantity | Sold Individually |
